Hi All,
First time writer, long time reader! Looking for some advice on the following...
Environment:
1 x Primary CM2012 server
1 x Site System Server (with Management Point role installed)
What i am looking to do is utilise the new High Availability feature i have read so much about in the links below, so that if 1 MP goes down the other can still service clients.
http://technet.micro...ibrary/hh846234
http://technet.micro...y/hh846246.aspx
First of all, is this possible, and if so has anyone done this yet?
Niall - I would love if you could put together a how step by step guide to clear this up (i've loved the ones to date). ;-)

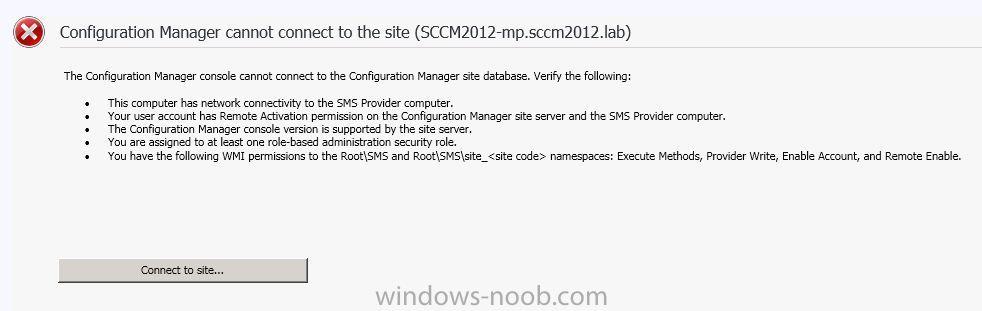

Secondly, i have actually attempted this by following MS's guide to SQL replica found here, and added the MP role to the Site System Server. I then installed the SMS Provider and console on the Site System Server. When i try connect to this via the admin console i get the error attached. I wanted to get the console working first before i mimicked a server failure.
"SMSAdminUI.log" also shows the below error. I also have numerous errors in the MP_xxxx.log files. Clearly something is a miss and hoping you guys can help out. I've confirmed WMI, SMS Admins access etc. Thanks in advance.
-----------------------
[1, PID:4420][07/02/2012 16:37:07] :System.ArgumentOutOfRangeException\r\nProvider machine not found
Parameter name: configMgrServerPath\r\n at Microsoft.ConfigurationManagement.ManagementProvider.WqlQueryEngine.WqlConnectionManager.Connect(String configMgrServerPath)\r\n
[1, PID:4420][07/02/2012 16:37:07] :Transport error; failed to connect, message: 'Provider machine not found
Parameter name: configMgrServerPath'\r\nMicrosoft.ConfigurationManagement.ManagementProvider.SmsConnectionException\r\nProvider machine not found
Parameter name: configMgrServerPath\r\n at Microsoft.ConfigurationManagement.ManagementProvider.WqlQueryEngine.WqlConnectionManager.Connect(String configMgrServerPath)
at Microsoft.ConfigurationManagement.AdminConsole.SmsSiteConnectionNode.GetConnectionManagerInstance(String connectionManagerInstance)\r\nProvider machine not found
Parameter name: configMgrServerPath
\r\nSystem.ArgumentOutOfRangeException\r\nProvider machine not found
Parameter name: configMgrServerPath\r\n at Microsoft.ConfigurationManagement.ManagementProvider.WqlQueryEngine.WqlConnectionManager.Connect(String configMgrServerPath)\r\n
[1, PID:4420][07/02/2012 16:37:07] :System.Management.ManagementException\r\nNot found \r\n at System.Management.ManagementException.ThrowWithExtendedInfo(ManagementStatus errorCode)
at System.Management.ManagementObject.InvokeMethod(String methodName, ManagementBaseObject inParameters, InvokeMethodOptions options)
at Microsoft.ConfigurationManagement.ManagementProvider.WqlQueryEngine.WqlConnectionManager.ExecuteMethod(String methodClass, String methodName, Dictionary`2 methodParameters, Boolean traceParameters)\r\nManagementException details:
instance of __ExtendedStatus
{
Operation = "ExecMethod";
ParameterInfo = "SMS_ObjectLock";
ProviderName = "WinMgmt";
};
\r\n
-----------------------
