Pluto67

Thank you all so much, i will investigate and see.

Hi, How do you stay connected or keep track of clients that use vpn connection to the office ? i mean there not always online and connected to the corporate network. If I want to push an update or install an application and there not connected to the network they will not receive it. any ideas ? thanks,

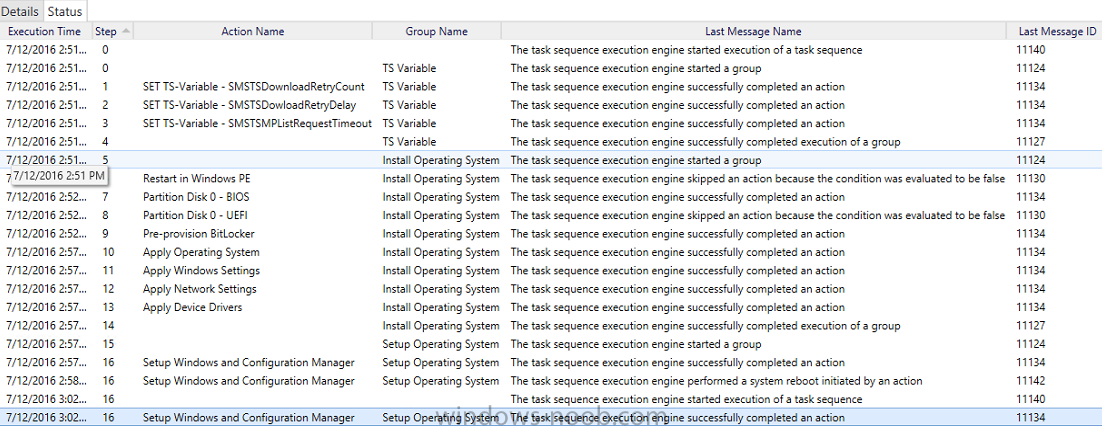

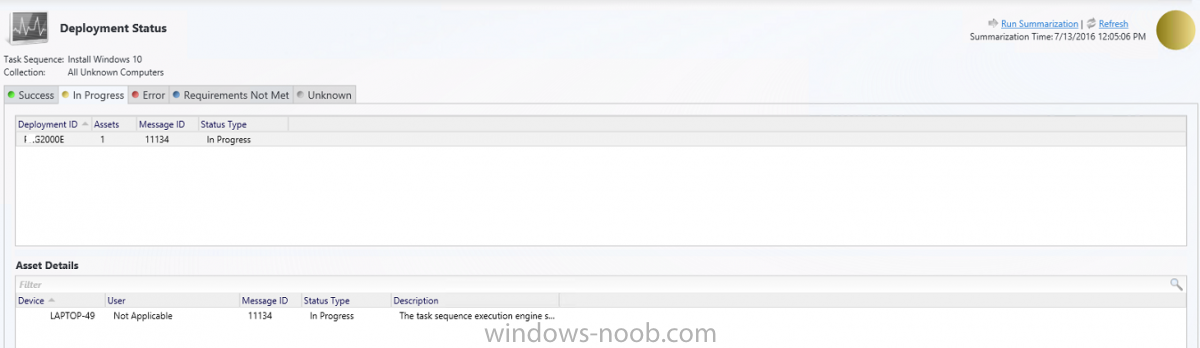

Hi, I deployed Win 10 with Office 2016 and everything seems installed correctly but the status is still showing In-Progress How can i delete this ? or clear it ?

Now its saying: Executing command line: "X:\sms\bin\x64\smstftp.exe" -i *.*.*.179 get \SMSTemp\2016.07.12.14.30.51.0001.{A9F2458B-79AC-4DE0-A751-E1F66808333C}.boot.var X:\sms\data\variables.dat TSPxe 7/12/2016 3:39:33 PM 1320 (0x0528)

OK all, I got it FIXED Finally !!! the issue was i didn't distribute the x86 boot image :s i only distributed the 64bit. Which it doesn't make sense to me. I'm deploying a 64bit OS to a 64bit machine or compatible machine it should know... but i guess NOT, you have to distribute BOTH the 64bit and the 32bit boot image for it to work (I guess there is a TS that checks and make sure that both boot images are available) and deploy to the "Unknown collection" Thanks

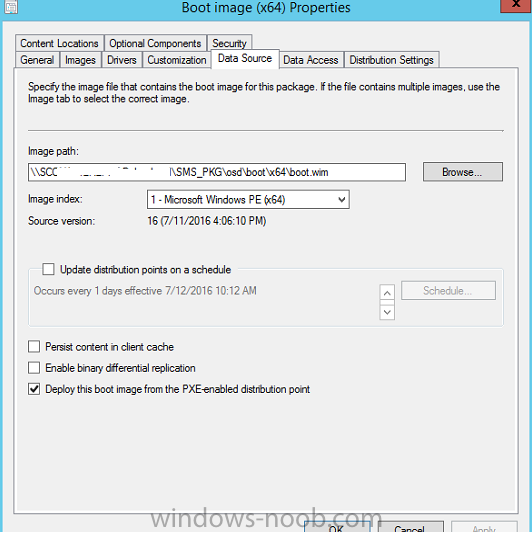

OK, that is weird why this is happening, and yes i update the boot image every time i do a change to it, that way i make sure the changes i make is updated and distributed. How can i fix that path issue ? should i update to CU 3 or i should fix this first than update ? Like this is the only thing that's not working , upgrade is working fine , installing application is working fine, its just the PXE boot fresh windows install, i don't get passed "Preparing Network Connections" and than it reboots. This is what i have for my Boot file: Is that the right image path?

Well ya, my communication is in https/cert check screen shot attached. I have 3 certs configured: - SCCM Web Server cert - SCCM client cert for DP ** - SCCM Workstation Cert

- OK i rolled back the system, and i didnt configure WDS. - I uninstalled 8.1 ADK. - "I used to use it with windows 8.1" . thanks,

Hi, Environment: 1 DC with DHCP 1 SCCM 2012R2 SP1 server with all the roles + WSUS + WDS Console Ver: 5.0.8239.1302 Site Ver: 5.00.8239.1000 ADK: 8.1 ver 8.100.26866 10 ver 10.1.10586.0 Yes, I was to deploy windows 10 before with no issues also with applications as well. But i think was caused all this is when i installed CU2 for SCCM but im not sure. Yes, the boot image is attached to the TS and distributed to the 1 and only DP and its enabled for PXE. No i need you to tell me which Boot image/WinPE i should use and where are they located. Do you have to add the boot images to WDS, do you have to do any more configuration outside SCCM ? BTW, the communication is HTTPS with a cert thanks,

.

.

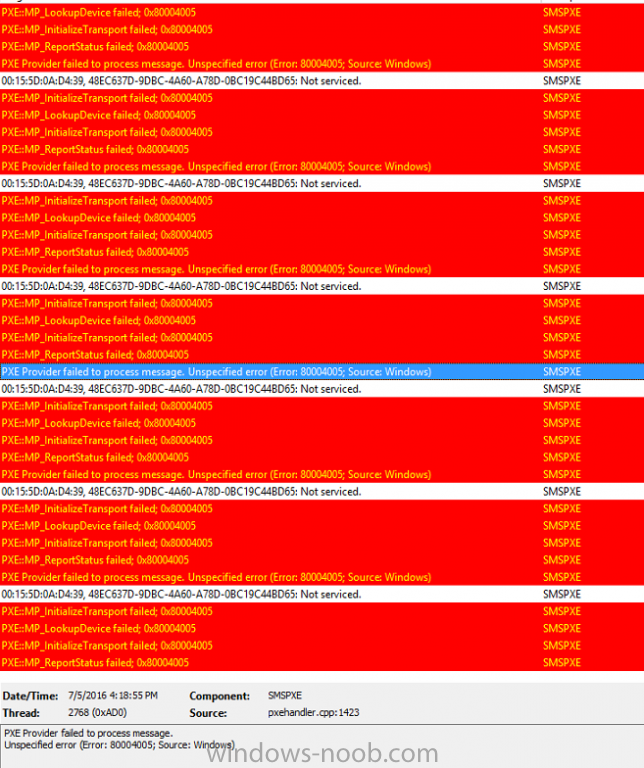

WHY am I getting this :angry: PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/11/2016 10:46:22 AM 2668 (0x0A6C) PXE::MP_LookupDevice failed; 0x80004005 SMSPXE 7/11/2016 10:46:22 AM 2668 (0x0A6C) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/11/2016 10:46:22 AM 2668 (0x0A6C) PXE::MP_ReportStatus failed; 0x80004005 SMSPXE 7/11/2016 10:46:22 AM 2668 (0x0A6C) PXE Provider failed to process message. Unspecified error (Error: 80004005; Source: Windows) SMSPXE 7/11/2016 10:46:22 AM 2668 (0x0A6C) 00:15:5D:0A:D4:3F, 48EC637D-9DBC-4A60-A78D-0BC19C44BD65: Not serviced. SMSPXE 7/11/2016 10:46:22 AM 2668 (0x0A6C) i'm 100% sure if i resolve the above errors my issue will be resolved.

SMSPXE Log ================= PXE Provider loaded. ===================== SMSPXE 7/11/2016 9:50:08 AM 1368 (0x0558) Machine is running Windows Longhorn. (NTVersion=0X603, ServicePack=0) SMSPXE 7/11/2016 9:50:08 AM 1368 (0x0558) Cannot read the registry value of MACIgnoreListFile (00000000) SMSPXE 7/11/2016 9:50:08 AM 1368 (0x0558) MAC Ignore List Filename in registry is empty SMSPXE 7/11/2016 9:50:08 AM 1368 (0x0558) Begin validation of Certificate [Thumbprint E6D9A4EA9D994D2656E0D9B2A77C8AC8178CF0D6] issued to 'b8e4080b-3fa8-44d6-9484-e34d52477a81' SMSPXE 7/11/2016 9:50:08 AM 1368 (0x0558) Completed validation of Certificate [Thumbprint E6D9A4EA9D994D2656E0D9B2A77C8AC8178CF0D6] issued to 'b8e4080b-3fa8-44d6-9484-e34d52477a81' SMSPXE 7/11/2016 9:50:08 AM 1368 (0x0558) Initializing PXEPerfObject. SMSPXE 7/11/2016 9:50:08 AM 1368 (0x0558) Could not load logging configuration for component ccmperf. Using default values. SMSPXE 7/11/2016 9:50:08 AM 1368 (0x0558) HTTP is selected for Client. The current state is 0. SMSPXE 7/11/2016 9:50:08 AM 1368 (0x0558) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/11/2016 9:50:08 AM 1368 (0x0558) PXE::MP_LookupDevice failed; 0x80004005 SMSPXE 7/11/2016 9:50:08 AM 1368 (0x0558) PXE Provider failed to initialize MP connection. Unspecified error (Error: 80004005; Source: Windows) SMSPXE 7/11/2016 9:50:08 AM 1368 (0x0558) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/11/2016 9:50:08 AM 1368 (0x0558) PXE::MP_ReportStatus failed; 0x80004005 SMSPXE 7/11/2016 9:50:08 AM 1368 (0x0558) PXE::CPolicyProvider::InitializeMPConnection failed; 0x80004005 SMSPXE 7/11/2016 9:50:08 AM 1368 (0x0558) PXE::CBootImageInfo::CBootImageInfo: key= SMSPXE 7/11/2016 9:50:08 AM 1368 (0x0558) Adding PKG00002.2 SMSPXE 7/11/2016 9:50:08 AM 1368 (0x0558) Adding PKG00029.5 SMSPXE 7/11/2016 9:50:10 AM 1368 (0x0558) Found new image PKG00002 SMSPXE 7/11/2016 9:50:12 AM 1368 (0x0558) Loaded Windows Imaging API DLL (version '10.0.10586.0') from location 'C:\Program Files (x86)\Windows Kits\10\Assessment and Deployment Kit\Deployment Tools\amd64\DISM\wimgapi.dll' SMSPXE 7/11/2016 9:50:13 AM 1368 (0x0558) Opening image file E:\RemoteInstall\SMSImages\PKG00002\boot.PKG00002.wim SMSPXE 7/11/2016 9:50:13 AM 1368 (0x0558) Found Image file: E:\RemoteInstall\SMSImages\PKG00002\boot.PKG00002.wim PackageID: PKG00002 ProductName: Microsoft® Windows® Operating System Architecture: 0 Description: Microsoft Windows PE (x86) Version: Creator: SystemDir: WINDOWS SMSPXE 7/11/2016 9:50:13 AM 1368 (0x0558) Closing image file E:\RemoteInstall\SMSImages\PKG00002\boot.PKG00002.wim SMSPXE 7/11/2016 9:50:13 AM 1368 (0x0558) InstallBootFilesForImage failed. 0x80004005 SMSPXE 7/11/2016 9:50:13 AM 1368 (0x0558) Warning: Failed to copy the needed boot binaries from the boot image E:\RemoteInstall\SMSImages\PKG00002\boot.PKG00002.wim. The operation completed successfully. (Error: 00000000; Source: Windows) SMSPXE 7/11/2016 9:50:13 AM 1368 (0x0558) Failed adding image E:\RemoteInstall\SMSImages\PKG00002\boot.PKG00002.wim. Will Retry.. Unspecified error (Error: 80004005; Source: Windows) SMSPXE 7/11/2016 9:50:13 AM 1368 (0x0558) File E:\RemoteInstall\SMSTemp\2016.07.11.09.50.13.01.{575A2CC4-C17B-4748-85E3-BEED67C728F0}.boot.bcd deleted. SMSPXE 7/11/2016 9:50:13 AM 1368 (0x0558) File E:\RemoteInstall\SMSTemp\2016.07.11.09.50.13.01.{575A2CC4-C17B-4748-85E3-BEED67C728F0}.boot.bcd.log deleted. SMSPXE 7/11/2016 9:50:13 AM 1368 (0x0558) Found new image PKG00029 SMSPXE 7/11/2016 9:50:13 AM 1368 (0x0558) Loaded Windows Imaging API DLL (version '10.0.10586.0') from location 'C:\Program Files (x86)\Windows Kits\10\Assessment and Deployment Kit\Deployment Tools\amd64\DISM\wimgapi.dll' SMSPXE 7/11/2016 9:50:13 AM 1368 (0x0558) Opening image file E:\RemoteInstall\SMSImages\PKG00029\boot.PKG00029.wim SMSPXE 7/11/2016 9:50:13 AM 1368 (0x0558) Found Image file: E:\RemoteInstall\SMSImages\PKG00029\boot.PKG00029.wim PackageID: PKG00029 ProductName: Microsoft® Windows® Operating System Architecture: 9 Description: Microsoft Windows PE (x64) Version: Creator: SystemDir: WINDOWS SMSPXE 7/11/2016 9:50:13 AM 1368 (0x0558) Closing image file E:\RemoteInstall\SMSImages\PKG00029\boot.PKG00029.wim SMSPXE 7/11/2016 9:50:13 AM 1368 (0x0558) InstallBootFilesForImage failed. 0x80004005 SMSPXE 7/11/2016 9:50:14 AM 1368 (0x0558) Warning: Failed to copy the needed boot binaries from the boot image E:\RemoteInstall\SMSImages\PKG00029\boot.PKG00029.wim. The operation completed successfully. (Error: 00000000; Source: Windows) SMSPXE 7/11/2016 9:50:14 AM 1368 (0x0558) Failed adding image E:\RemoteInstall\SMSImages\PKG00029\boot.PKG00029.wim. Will Retry.. Unspecified error (Error: 80004005; Source: Windows) SMSPXE 7/11/2016 9:50:14 AM 1368 (0x0558) File E:\RemoteInstall\SMSTemp\2016.07.11.09.50.13.02.{2D38D71E-9A2D-4F48-984E-F76DA5B51280}.boot.bcd deleted. SMSPXE 7/11/2016 9:50:14 AM 1368 (0x0558) File E:\RemoteInstall\SMSTemp\2016.07.11.09.50.13.02.{2D38D71E-9A2D-4F48-984E-F76DA5B51280}.boot.bcd.log deleted. SMSPXE 7/11/2016 9:50:14 AM 1368 (0x0558) Found new image PKG00002 SMSPXE 7/11/2016 9:50:14 AM 768 (0x0300) Loaded Windows Imaging API DLL (version '10.0.10586.0') from location 'C:\Program Files (x86)\Windows Kits\10\Assessment and Deployment Kit\Deployment Tools\amd64\DISM\wimgapi.dll' SMSPXE 7/11/2016 9:50:14 AM 768 (0x0300) Opening image file E:\RemoteInstall\SMSImages\PKG00002\boot.PKG00002.wim SMSPXE 7/11/2016 9:50:14 AM 768 (0x0300) Found Image file: E:\RemoteInstall\SMSImages\PKG00002\boot.PKG00002.wim PackageID: PKG00002 ProductName: Microsoft® Windows® Operating System Architecture: 0 Description: Microsoft Windows PE (x86) Version: Creator: SystemDir: WINDOWS SMSPXE 7/11/2016 9:50:14 AM 768 (0x0300) Closing image file E:\RemoteInstall\SMSImages\PKG00002\boot.PKG00002.wim SMSPXE 7/11/2016 9:50:14 AM 768 (0x0300) Begin validation of Certificate [Thumbprint E6D9A4EA9D994D2656E0D9B2A77C8AC8178CF0D6] issued to 'b8e4080b-3fa8-44d6-9484-e34d52477a81' SMSPXE 7/11/2016 9:50:14 AM 1368 (0x0558) Completed validation of Certificate [Thumbprint E6D9A4EA9D994D2656E0D9B2A77C8AC8178CF0D6] issued to 'b8e4080b-3fa8-44d6-9484-e34d52477a81' SMSPXE 7/11/2016 9:50:14 AM 1368 (0x0558) PXE Provider finished loading. SMSPXE 7/11/2016 9:50:14 AM 1368 (0x0558) InstallBootFilesForImage failed. 0x80004005 SMSPXE 7/11/2016 9:50:14 AM 768 (0x0300) Warning: Failed to copy the needed boot binaries from the boot image E:\RemoteInstall\SMSImages\PKG00002\boot.PKG00002.wim. The operation completed successfully. (Error: 00000000; Source: Windows) SMSPXE 7/11/2016 9:50:14 AM 768 (0x0300) Failed adding image E:\RemoteInstall\SMSImages\PKG00002\boot.PKG00002.wim. Will Retry.. Unspecified error (Error: 80004005; Source: Windows) SMSPXE 7/11/2016 9:50:14 AM 768 (0x0300) File E:\RemoteInstall\SMSTemp\2016.07.11.09.50.14.03.{78766AAB-AA28-4612-875F-F10E47DE3E03}.boot.bcd deleted. SMSPXE 7/11/2016 9:50:14 AM 768 (0x0300) File E:\RemoteInstall\SMSTemp\2016.07.11.09.50.14.03.{78766AAB-AA28-4612-875F-F10E47DE3E03}.boot.bcd.log deleted. SMSPXE 7/11/2016 9:50:14 AM 768 (0x0300) Found new image PKG00029 SMSPXE 7/11/2016 9:50:14 AM 768 (0x0300) Loaded Windows Imaging API DLL (version '10.0.10586.0') from location 'C:\Program Files (x86)\Windows Kits\10\Assessment and Deployment Kit\Deployment Tools\amd64\DISM\wimgapi.dll' SMSPXE 7/11/2016 9:50:14 AM 768 (0x0300) Opening image file E:\RemoteInstall\SMSImages\PKG00029\boot.PKG00029.wim SMSPXE 7/11/2016 9:50:14 AM 768 (0x0300) Found Image file: E:\RemoteInstall\SMSImages\PKG00029\boot.PKG00029.wim PackageID: PKG00029 ProductName: Microsoft® Windows® Operating System Architecture: 9 Description: Microsoft Windows PE (x64) Version: Creator: SystemDir: WINDOWS SMSPXE 7/11/2016 9:50:14 AM 768 (0x0300) Closing image file E:\RemoteInstall\SMSImages\PKG00029\boot.PKG00029.wim SMSPXE 7/11/2016 9:50:14 AM 768 (0x0300) InstallBootFilesForImage failed. 0x80004005 SMSPXE 7/11/2016 9:50:14 AM 768 (0x0300) Warning: Failed to copy the needed boot binaries from the boot image E:\RemoteInstall\SMSImages\PKG00029\boot.PKG00029.wim. The operation completed successfully. (Error: 00000000; Source: Windows) SMSPXE 7/11/2016 9:50:14 AM 768 (0x0300) Failed adding image E:\RemoteInstall\SMSImages\PKG00029\boot.PKG00029.wim. Will Retry.. Unspecified error (Error: 80004005; Source: Windows) SMSPXE 7/11/2016 9:50:14 AM 768 (0x0300) File E:\RemoteInstall\SMSTemp\2016.07.11.09.50.14.04.{1A47323B-1C9A-4164-A9BF-14C234BF1E50}.boot.bcd deleted. SMSPXE 7/11/2016 9:50:14 AM 768 (0x0300) File E:\RemoteInstall\SMSTemp\2016.07.11.09.50.14.04.{1A47323B-1C9A-4164-A9BF-14C234BF1E50}.boot.bcd.log deleted. SMSPXE 7/11/2016 9:50:14 AM 768 (0x0300) Found new image PKG00002 SMSPXE 7/11/2016 9:50:15 AM 5468 (0x155C) Loaded Windows Imaging API DLL (version '10.0.10586.0') from location 'C:\Program Files (x86)\Windows Kits\10\Assessment and Deployment Kit\Deployment Tools\amd64\DISM\wimgapi.dll' SMSPXE 7/11/2016 9:50:15 AM 5468 (0x155C) Opening image file E:\RemoteInstall\SMSImages\PKG00002\boot.PKG00002.wim SMSPXE 7/11/2016 9:50:15 AM 5468 (0x155C) Found Image file: E:\RemoteInstall\SMSImages\PKG00002\boot.PKG00002.wim PackageID: PKG00002 ProductName: Microsoft® Windows® Operating System Architecture: 0 Description: Microsoft Windows PE (x86) Version: Creator: SystemDir: WINDOWS SMSPXE 7/11/2016 9:50:15 AM 5468 (0x155C) Closing image file E:\RemoteInstall\SMSImages\PKG00002\boot.PKG00002.wim SMSPXE 7/11/2016 9:50:15 AM 5468 (0x155C) Found new image PKG00029 SMSPXE 7/11/2016 9:50:16 AM 5468 (0x155C) Loaded Windows Imaging API DLL (version '10.0.10586.0') from location 'C:\Program Files (x86)\Windows Kits\10\Assessment and Deployment Kit\Deployment Tools\amd64\DISM\wimgapi.dll' SMSPXE 7/11/2016 9:50:16 AM 5468 (0x155C) Opening image file E:\RemoteInstall\SMSImages\PKG00029\boot.PKG00029.wim SMSPXE 7/11/2016 9:50:16 AM 5468 (0x155C) Found Image file: E:\RemoteInstall\SMSImages\PKG00029\boot.PKG00029.wim PackageID: PKG00029 ProductName: Microsoft® Windows® Operating System Architecture: 9 Description: Microsoft Windows PE (x64) Version: Creator: SystemDir: WINDOWS SMSPXE 7/11/2016 9:50:16 AM 5468 (0x155C) Closing image file E:\RemoteInstall\SMSImages\PKG00029\boot.PKG00029.wim SMSPXE 7/11/2016 9:50:16 AM 5468 (0x155C) Source file 'E:\RemoteInstall\SMSTempBootFiles\PKG00029\WINDOWS\Boot\PXE\wdsnbp.com' does not exist. Ignore it SMSPXE 7/11/2016 9:50:16 AM 5468 (0x155C) Source file 'E:\RemoteInstall\SMSTempBootFiles\PKG00029\WINDOWS\Boot\PXE\abortpxe.com' does not exist. Ignore it SMSPXE 7/11/2016 9:50:16 AM 5468 (0x155C) Source file 'E:\RemoteInstall\SMSTempBootFiles\PKG00029\WINDOWS\Boot\PXE\pxeboot.com' does not exist. Ignore it SMSPXE 7/11/2016 9:50:16 AM 5468 (0x155C) Source file 'E:\RemoteInstall\SMSTempBootFiles\PKG00029\WINDOWS\Boot\PXE\pxeboot.n12' does not exist. Ignore it SMSPXE 7/11/2016 9:50:16 AM 5468 (0x155C) Source file 'E:\RemoteInstall\SMSTempBootFiles\PKG00029\WINDOWS\Boot\PXE\bootmgr.exe' does not exist. Ignore it SMSPXE 7/11/2016 9:50:16 AM 5468 (0x155C) Source file 'E:\RemoteInstall\SMSTempBootFiles\PKG00029\WINDOWS\Boot\PXE\wdsnbp.com' does not exist. Ignore it SMSPXE 7/11/2016 9:50:16 AM 5468 (0x155C) Source file 'E:\RemoteInstall\SMSTempBootFiles\PKG00029\WINDOWS\Boot\PXE\abortpxe.com' does not exist. Ignore it SMSPXE 7/11/2016 9:50:16 AM 5468 (0x155C) Source file 'E:\RemoteInstall\SMSTempBootFiles\PKG00029\WINDOWS\Boot\PXE\wdsmgfw.efi' does not exist. Ignore it SMSPXE 7/11/2016 9:50:16 AM 5468 (0x155C) Source file 'E:\RemoteInstall\SMSTempBootFiles\PKG00029\WINDOWS\Boot\EFI\bootmgfw.efi' does not exist. Ignore it SMSPXE 7/11/2016 9:50:16 AM 5468 (0x155C) Source file 'E:\RemoteInstall\SMSTempBootFiles\PKG00029\WINDOWS\Boot\Fonts\segmono_boot.ttf' does not exist. Ignore it SMSPXE 7/11/2016 9:50:16 AM 5468 (0x155C) Source file 'E:\RemoteInstall\SMSTempBootFiles\PKG00029\WINDOWS\Boot\Fonts\segoe_slboot.ttf' does not exist. Ignore it SMSPXE 7/11/2016 9:50:16 AM 5468 (0x155C) Source file 'E:\RemoteInstall\SMSTempBootFiles\PKG00029\WINDOWS\Boot\Fonts\segoen_slboot.ttf' does not exist. Ignore it SMSPXE 7/11/2016 9:50:16 AM 5468 (0x155C) Source file 'E:\RemoteInstall\SMSTempBootFiles\PKG00029\WINDOWS\Boot\Fonts\wgl4_boot.ttf' does not exist. Ignore it SMSPXE 7/11/2016 9:50:16 AM 5468 (0x155C) Cannot read the registry value of MACIgnoreListFile (800703e5) SMSPXE 7/11/2016 9:50:17 AM 5468 (0x155C) MAC Ignore List Filename in registry is empty SMSPXE 7/11/2016 9:50:17 AM 5468 (0x155C)

Hi YPCC, I tried all that already, no luck. I think is something to do with SCCM PXE and WDS not configured right, i still dont know what it is.

Heres my SMSPXE Log if anyone can help ! ================= PXE Provider loaded. ===================== SMSPXE 7/8/2016 10:25:06 AM 2464 (0x09A0) Machine is running Windows Longhorn. (NTVersion=0X603, ServicePack=0) SMSPXE 7/8/2016 10:25:06 AM 2464 (0x09A0) Cannot read the registry value of MACIgnoreListFile (00000000) SMSPXE 7/8/2016 10:25:06 AM 2464 (0x09A0) MAC Ignore List Filename in registry is empty SMSPXE 7/8/2016 10:25:06 AM 2464 (0x09A0) Begin validation of Certificate [Thumbprint E6D9A4EA9D994D2656E0D9B2A77C8AC8178CF0D6] issued to 'b8e4080b-3fa8-44d6-9484-e34d52477a81' SMSPXE 7/8/2016 10:25:06 AM 2464 (0x09A0) Completed validation of Certificate [Thumbprint E6D9A4EA9D994D2656E0D9B2A77C8AC8178CF0D6] issued to 'b8e4080b-3fa8-44d6-9484-e34d52477a81' SMSPXE 7/8/2016 10:25:06 AM 2464 (0x09A0) Initializing PXEPerfObject. SMSPXE 7/8/2016 10:25:06 AM 2464 (0x09A0) Could not load logging configuration for component ccmperf. Using default values. SMSPXE 7/8/2016 10:25:06 AM 2464 (0x09A0) HTTP is selected for Client. The current state is 0. SMSPXE 7/8/2016 10:25:06 AM 2464 (0x09A0) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 10:25:06 AM 2464 (0x09A0) PXE::MP_LookupDevice failed; 0x80004005 SMSPXE 7/8/2016 10:25:06 AM 2464 (0x09A0) PXE Provider failed to initialize MP connection. Unspecified error (Error: 80004005; Source: Windows) SMSPXE 7/8/2016 10:25:06 AM 2464 (0x09A0) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 10:25:06 AM 2464 (0x09A0) PXE::MP_ReportStatus failed; 0x80004005 SMSPXE 7/8/2016 10:25:06 AM 2464 (0x09A0) PXE::CPolicyProvider::InitializeMPConnection failed; 0x80004005 SMSPXE 7/8/2016 10:25:06 AM 2464 (0x09A0) PXE::CBootImageInfo::CBootImageInfo: key= SMSPXE 7/8/2016 10:25:06 AM 2464 (0x09A0) Adding PKG00002.2 SMSPXE 7/8/2016 10:25:06 AM 2464 (0x09A0) Adding PKG00028.6 SMSPXE 7/8/2016 10:25:08 AM 2464 (0x09A0) Found new image PKG00002 SMSPXE 7/8/2016 10:25:11 AM 2464 (0x09A0) Loaded Windows Imaging API DLL (version '10.0.10586.0') from location 'C:\Program Files (x86)\Windows Kits\10\Assessment and Deployment Kit\Deployment Tools\amd64\DISM\wimgapi.dll' SMSPXE 7/8/2016 10:25:11 AM 2464 (0x09A0) Opening image file E:\RemoteInstall\SMSImages\PKG00002\boot.PKG00002.wim SMSPXE 7/8/2016 10:25:11 AM 2464 (0x09A0) Found Image file: E:\RemoteInstall\SMSImages\PKG00002\boot.PKG00002.wim PackageID: PKG00002 ProductName: Microsoft® Windows® Operating System Architecture: 0 Description: Microsoft Windows PE (x86) Version: Creator: SystemDir: WINDOWS SMSPXE 7/8/2016 10:25:11 AM 2464 (0x09A0) Closing image file E:\RemoteInstall\SMSImages\PKG00002\boot.PKG00002.wim SMSPXE 7/8/2016 10:25:11 AM 2464 (0x09A0) Found new image PKG00028 SMSPXE 7/8/2016 10:25:14 AM 2464 (0x09A0) Loaded Windows Imaging API DLL (version '10.0.10586.0') from location 'C:\Program Files (x86)\Windows Kits\10\Assessment and Deployment Kit\Deployment Tools\amd64\DISM\wimgapi.dll' SMSPXE 7/8/2016 10:25:14 AM 2464 (0x09A0) Opening image file E:\RemoteInstall\SMSImages\PKG00028\WINPE.PKG00028.wim SMSPXE 7/8/2016 10:25:14 AM 2464 (0x09A0) Found Image file: E:\RemoteInstall\SMSImages\PKG00028\WINPE.PKG00028.wim PackageID: PKG00028 ProductName: Microsoft® Windows® Operating System Architecture: 9 Description: Microsoft Windows PE (x64) Version: Creator: SystemDir: WINDOWS SMSPXE 7/8/2016 10:25:14 AM 2464 (0x09A0) Closing image file E:\RemoteInstall\SMSImages\PKG00028\WINPE.PKG00028.wim SMSPXE 7/8/2016 10:25:14 AM 2464 (0x09A0) Begin validation of Certificate [Thumbprint E6D9A4EA9D994D2656E0D9B2A77C8AC8178CF0D6] issued to 'b8e4080b-3fa8-44d6-9484-e34d52477a81' SMSPXE 7/8/2016 10:25:14 AM 2464 (0x09A0) Completed validation of Certificate [Thumbprint E6D9A4EA9D994D2656E0D9B2A77C8AC8178CF0D6] issued to 'b8e4080b-3fa8-44d6-9484-e34d52477a81' SMSPXE 7/8/2016 10:25:14 AM 2464 (0x09A0) PXE Provider finished loading. SMSPXE 7/8/2016 10:25:14 AM 2464 (0x09A0) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 11:00:18 AM 2764 (0x0ACC) PXE::MP_LookupDevice failed; 0x80004005 SMSPXE 7/8/2016 11:00:18 AM 2764 (0x0ACC) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 11:00:18 AM 2764 (0x0ACC) PXE::MP_ReportStatus failed; 0x80004005 SMSPXE 7/8/2016 11:00:18 AM 2764 (0x0ACC) PXE Provider failed to process message. Unspecified error (Error: 80004005; Source: Windows) SMSPXE 7/8/2016 11:00:18 AM 2764 (0x0ACC) 00:15:5D:0A:D4:3F, 48EC637D-9DBC-4A60-A78D-0BC19C44BD65: Not serviced. SMSPXE 7/8/2016 11:00:18 AM 2764 (0x0ACC) Begin validation of Certificate [Thumbprint E6D9A4EA9D994D2656E0D9B2A77C8AC8178CF0D6] issued to 'b8e4080b-3fa8-44d6-9484-e34d52477a81' SMSPXE 7/8/2016 11:25:15 AM 6568 (0x19A8) Completed validation of Certificate [Thumbprint E6D9A4EA9D994D2656E0D9B2A77C8AC8178CF0D6] issued to 'b8e4080b-3fa8-44d6-9484-e34d52477a81' SMSPXE 7/8/2016 11:25:15 AM 6568 (0x19A8) Begin validation of Certificate [Thumbprint E6D9A4EA9D994D2656E0D9B2A77C8AC8178CF0D6] issued to 'b8e4080b-3fa8-44d6-9484-e34d52477a81' SMSPXE 7/8/2016 12:25:15 PM 6724 (0x1A44) Completed validation of Certificate [Thumbprint E6D9A4EA9D994D2656E0D9B2A77C8AC8178CF0D6] issued to 'b8e4080b-3fa8-44d6-9484-e34d52477a81' SMSPXE 7/8/2016 12:25:15 PM 6724 (0x1A44) ================= PXE Provider loaded. ===================== SMSPXE 7/8/2016 12:48:20 PM 2484 (0x09B4) Machine is running Windows Longhorn. (NTVersion=0X603, ServicePack=0) SMSPXE 7/8/2016 12:48:20 PM 2484 (0x09B4) Cannot read the registry value of MACIgnoreListFile (00000000) SMSPXE 7/8/2016 12:48:20 PM 2484 (0x09B4) MAC Ignore List Filename in registry is empty SMSPXE 7/8/2016 12:48:20 PM 2484 (0x09B4) Begin validation of Certificate [Thumbprint E6D9A4EA9D994D2656E0D9B2A77C8AC8178CF0D6] issued to 'b8e4080b-3fa8-44d6-9484-e34d52477a81' SMSPXE 7/8/2016 12:48:21 PM 2484 (0x09B4) Completed validation of Certificate [Thumbprint E6D9A4EA9D994D2656E0D9B2A77C8AC8178CF0D6] issued to 'b8e4080b-3fa8-44d6-9484-e34d52477a81' SMSPXE 7/8/2016 12:48:21 PM 2484 (0x09B4) Initializing PXEPerfObject. SMSPXE 7/8/2016 12:48:21 PM 2484 (0x09B4) Could not load logging configuration for component ccmperf. Using default values. SMSPXE 7/8/2016 12:48:21 PM 2484 (0x09B4) HTTP is selected for Client. The current state is 0. SMSPXE 7/8/2016 12:48:21 PM 2484 (0x09B4) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 12:48:21 PM 2484 (0x09B4) PXE::MP_LookupDevice failed; 0x80004005 SMSPXE 7/8/2016 12:48:21 PM 2484 (0x09B4) PXE Provider failed to initialize MP connection. Unspecified error (Error: 80004005; Source: Windows) SMSPXE 7/8/2016 12:48:21 PM 2484 (0x09B4) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 12:48:21 PM 2484 (0x09B4) PXE::MP_ReportStatus failed; 0x80004005 SMSPXE 7/8/2016 12:48:21 PM 2484 (0x09B4) PXE::CPolicyProvider::InitializeMPConnection failed; 0x80004005 SMSPXE 7/8/2016 12:48:21 PM 2484 (0x09B4) PXE::CBootImageInfo::CBootImageInfo: key= SMSPXE 7/8/2016 12:48:21 PM 2484 (0x09B4) Adding PKG00002.2 SMSPXE 7/8/2016 12:48:21 PM 2484 (0x09B4) Adding PKG00028.6 SMSPXE 7/8/2016 12:48:23 PM 2484 (0x09B4) Found new image PKG00002 SMSPXE 7/8/2016 12:48:26 PM 2484 (0x09B4) Loaded Windows Imaging API DLL (version '10.0.10586.0') from location 'C:\Program Files (x86)\Windows Kits\10\Assessment and Deployment Kit\Deployment Tools\amd64\DISM\wimgapi.dll' SMSPXE 7/8/2016 12:48:27 PM 2484 (0x09B4) Opening image file E:\RemoteInstall\SMSImages\PKG00002\boot.PKG00002.wim SMSPXE 7/8/2016 12:48:27 PM 2484 (0x09B4) Found Image file: E:\RemoteInstall\SMSImages\PKG00002\boot.PKG00002.wim PackageID: PKG00002 ProductName: Microsoft® Windows® Operating System Architecture: 0 Description: Microsoft Windows PE (x86) Version: Creator: SystemDir: WINDOWS SMSPXE 7/8/2016 12:48:27 PM 2484 (0x09B4) Closing image file E:\RemoteInstall\SMSImages\PKG00002\boot.PKG00002.wim SMSPXE 7/8/2016 12:48:27 PM 2484 (0x09B4) Found new image PKG00028 SMSPXE 7/8/2016 12:48:31 PM 2484 (0x09B4) Loaded Windows Imaging API DLL (version '10.0.10586.0') from location 'C:\Program Files (x86)\Windows Kits\10\Assessment and Deployment Kit\Deployment Tools\amd64\DISM\wimgapi.dll' SMSPXE 7/8/2016 12:48:31 PM 2484 (0x09B4) Opening image file E:\RemoteInstall\SMSImages\PKG00028\WINPE.PKG00028.wim SMSPXE 7/8/2016 12:48:31 PM 2484 (0x09B4) Found Image file: E:\RemoteInstall\SMSImages\PKG00028\WINPE.PKG00028.wim PackageID: PKG00028 ProductName: Microsoft® Windows® Operating System Architecture: 9 Description: Microsoft Windows PE (x64) Version: Creator: SystemDir: WINDOWS SMSPXE 7/8/2016 12:48:31 PM 2484 (0x09B4) Closing image file E:\RemoteInstall\SMSImages\PKG00028\WINPE.PKG00028.wim SMSPXE 7/8/2016 12:48:31 PM 2484 (0x09B4) Begin validation of Certificate [Thumbprint E6D9A4EA9D994D2656E0D9B2A77C8AC8178CF0D6] issued to 'b8e4080b-3fa8-44d6-9484-e34d52477a81' SMSPXE 7/8/2016 12:48:32 PM 2484 (0x09B4) Completed validation of Certificate [Thumbprint E6D9A4EA9D994D2656E0D9B2A77C8AC8178CF0D6] issued to 'b8e4080b-3fa8-44d6-9484-e34d52477a81' SMSPXE 7/8/2016 12:48:32 PM 2484 (0x09B4) PXE Provider finished loading. SMSPXE 7/8/2016 12:48:32 PM 2484 (0x09B4) Error opening file: E:\RemoteInstall\SMSImages\PKG00028\WINPE.PKG00028.wim. Win32=32 SMSPXE 7/8/2016 1:01:11 PM 2364 (0x093C) Retrying E:\RemoteInstall\SMSImages\PKG00028\WINPE.PKG00028.wim SMSPXE 7/8/2016 1:01:11 PM 2364 (0x093C) Boot image PKG00028 has changed since added SMSPXE 7/8/2016 1:01:14 PM 2364 (0x093C) Loaded Windows Imaging API DLL (version '10.0.10586.0') from location 'C:\Program Files (x86)\Windows Kits\10\Assessment and Deployment Kit\Deployment Tools\amd64\DISM\wimgapi.dll' SMSPXE 7/8/2016 1:01:14 PM 2364 (0x093C) Opening image file E:\RemoteInstall\SMSImages\PKG00028\WINPE.PKG00028.wim SMSPXE 7/8/2016 1:01:14 PM 2364 (0x093C) Found Image file: E:\RemoteInstall\SMSImages\PKG00028\WINPE.PKG00028.wim PackageID: PKG00028 ProductName: Microsoft® Windows® Operating System Architecture: 9 Description: Microsoft Windows PE (x64) Version: Creator: SystemDir: WINDOWS SMSPXE 7/8/2016 1:01:14 PM 2364 (0x093C) Closing image file E:\RemoteInstall\SMSImages\PKG00028\WINPE.PKG00028.wim SMSPXE 7/8/2016 1:01:14 PM 2364 (0x093C) Boot image PKG00028 has changed since added SMSPXE 7/8/2016 1:01:15 PM 2364 (0x093C) Loaded Windows Imaging API DLL (version '10.0.10586.0') from location 'C:\Program Files (x86)\Windows Kits\10\Assessment and Deployment Kit\Deployment Tools\amd64\DISM\wimgapi.dll' SMSPXE 7/8/2016 1:01:15 PM 2364 (0x093C) Opening image file E:\RemoteInstall\SMSImages\PKG00028\WINPE.PKG00028.wim SMSPXE 7/8/2016 1:01:15 PM 2364 (0x093C) Found Image file: E:\RemoteInstall\SMSImages\PKG00028\WINPE.PKG00028.wim PackageID: PKG00028 ProductName: Microsoft® Windows® Operating System Architecture: 9 Description: Microsoft Windows PE (x64) Version: Creator: SystemDir: WINDOWS SMSPXE 7/8/2016 1:01:15 PM 2364 (0x093C) Closing image file E:\RemoteInstall\SMSImages\PKG00028\WINPE.PKG00028.wim SMSPXE 7/8/2016 1:01:15 PM 2364 (0x093C) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 1:03:39 PM 2892 (0x0B4C) PXE::MP_LookupDevice failed; 0x80004005 SMSPXE 7/8/2016 1:03:39 PM 2892 (0x0B4C) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 1:03:39 PM 2892 (0x0B4C) PXE::MP_ReportStatus failed; 0x80004005 SMSPXE 7/8/2016 1:03:39 PM 2892 (0x0B4C) PXE Provider failed to process message. Unspecified error (Error: 80004005; Source: Windows) SMSPXE 7/8/2016 1:03:39 PM 2892 (0x0B4C) 68:F7:28:12:F1:02, C1A51F81-537E-11CB-8C51-F19798423C61: Not serviced. SMSPXE 7/8/2016 1:03:39 PM 2892 (0x0B4C) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 1:03:43 PM 2892 (0x0B4C) PXE::MP_LookupDevice failed; 0x80004005 SMSPXE 7/8/2016 1:03:43 PM 2892 (0x0B4C) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 1:03:43 PM 2892 (0x0B4C) PXE::MP_ReportStatus failed; 0x80004005 SMSPXE 7/8/2016 1:03:43 PM 2892 (0x0B4C) PXE Provider failed to process message. Unspecified error (Error: 80004005; Source: Windows) SMSPXE 7/8/2016 1:03:43 PM 2892 (0x0B4C) 68:F7:28:12:F1:02, C1A51F81-537E-11CB-8C51-F19798423C61: Not serviced. SMSPXE 7/8/2016 1:03:43 PM 2892 (0x0B4C) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 1:03:44 PM 2892 (0x0B4C) PXE::MP_LookupDevice failed; 0x80004005 SMSPXE 7/8/2016 1:03:44 PM 2892 (0x0B4C) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 1:03:44 PM 2892 (0x0B4C) PXE::MP_ReportStatus failed; 0x80004005 SMSPXE 7/8/2016 1:03:44 PM 2892 (0x0B4C) PXE Provider failed to process message. Unspecified error (Error: 80004005; Source: Windows) SMSPXE 7/8/2016 1:03:44 PM 2892 (0x0B4C) 68:F7:28:12:F1:02, C1A51F81-537E-11CB-8C51-F19798423C61: Not serviced. SMSPXE 7/8/2016 1:03:44 PM 2892 (0x0B4C) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 1:05:15 PM 2892 (0x0B4C) PXE::MP_LookupDevice failed; 0x80004005 SMSPXE 7/8/2016 1:05:15 PM 2892 (0x0B4C) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 1:05:15 PM 2892 (0x0B4C) PXE::MP_ReportStatus failed; 0x80004005 SMSPXE 7/8/2016 1:05:15 PM 2892 (0x0B4C) PXE Provider failed to process message. Unspecified error (Error: 80004005; Source: Windows) SMSPXE 7/8/2016 1:05:15 PM 2892 (0x0B4C) 68:F7:28:12:F1:02, C1A51F81-537E-11CB-8C51-F19798423C61: Not serviced. SMSPXE 7/8/2016 1:05:15 PM 2892 (0x0B4C) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 1:05:19 PM 2892 (0x0B4C) PXE::MP_LookupDevice failed; 0x80004005 SMSPXE 7/8/2016 1:05:19 PM 2892 (0x0B4C) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 1:05:19 PM 2892 (0x0B4C) PXE::MP_ReportStatus failed; 0x80004005 SMSPXE 7/8/2016 1:05:19 PM 2892 (0x0B4C) PXE Provider failed to process message. Unspecified error (Error: 80004005; Source: Windows) SMSPXE 7/8/2016 1:05:19 PM 2892 (0x0B4C) 68:F7:28:12:F1:02, C1A51F81-537E-11CB-8C51-F19798423C61: Not serviced. SMSPXE 7/8/2016 1:05:19 PM 2892 (0x0B4C) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 1:05:20 PM 2892 (0x0B4C) PXE::MP_LookupDevice failed; 0x80004005 SMSPXE 7/8/2016 1:05:20 PM 2892 (0x0B4C) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 1:05:20 PM 2892 (0x0B4C) PXE::MP_ReportStatus failed; 0x80004005 SMSPXE 7/8/2016 1:05:20 PM 2892 (0x0B4C) PXE Provider failed to process message. Unspecified error (Error: 80004005; Source: Windows) SMSPXE 7/8/2016 1:05:20 PM 2892 (0x0B4C) 68:F7:28:12:F1:02, C1A51F81-537E-11CB-8C51-F19798423C61: Not serviced. SMSPXE 7/8/2016 1:05:20 PM 2892 (0x0B4C) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 1:06:22 PM 2892 (0x0B4C) PXE::MP_LookupDevice failed; 0x80004005 SMSPXE 7/8/2016 1:06:22 PM 2892 (0x0B4C) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 1:06:22 PM 2892 (0x0B4C) PXE::MP_ReportStatus failed; 0x80004005 SMSPXE 7/8/2016 1:06:22 PM 2892 (0x0B4C) PXE Provider failed to process message. Unspecified error (Error: 80004005; Source: Windows) SMSPXE 7/8/2016 1:06:22 PM 2892 (0x0B4C) 68:F7:28:12:F1:02, C1A51F81-537E-11CB-8C51-F19798423C61: Not serviced. SMSPXE 7/8/2016 1:06:22 PM 2892 (0x0B4C) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 1:06:26 PM 2892 (0x0B4C) PXE::MP_LookupDevice failed; 0x80004005 SMSPXE 7/8/2016 1:06:26 PM 2892 (0x0B4C) PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 7/8/2016 1:06:26 PM 2892 (0x0B4C) PXE::MP_ReportStatus failed; 0x80004005 SMSPXE 7/8/2016 1:06:26 PM 2892 (0x0B4C) PXE Provider failed to process message. Unspecified error (Error: 80004005; Source: Windows) SMSPXE 7/8/2016 1:06:26 PM 2892 (0x0B4C) 68:F7:28:12:F1:02, C1A51F81-537E-11CB-8C51-F19798423C61: Not serviced. SMSPXE 7/8/2016 1:06:26 PM 2892 (0x0B4C) File E:\RemoteInstall\SMSTemp\2016.07.08.12.48.31.02.{07E41D65-27FA-4F51-B602-88ADDB338D9B}.boot.bcd deleted. SMSPXE 7/8/2016 1:08:32 PM 2364 (0x093C) File E:\RemoteInstall\SMSTemp\2016.07.08.12.48.31.02.{07E41D65-27FA-4F51-B602-88ADDB338D9B}.boot.bcd.log deleted. SMSPXE 7/8/2016 1:08:32 PM 2364 (0x093C) File E:\RemoteInstall\SMSTemp\2016.07.08.13.01.14.03.{8F86C1A0-8EFD-424C-87A4-B68A796A7086}.boot.bcd deleted. SMSPXE 7/8/2016 1:08:32 PM 2364 (0x093C) File E:\RemoteInstall\SMSTemp\2016.07.08.13.01.14.03.{8F86C1

Hi, Yes i do get an IP address.

I got further now, when i added the right boot image to the WDS. Now its booting to the right image and im getting to the sccm screen, but whats happening now is it gets to preparing network connection and than it reboots !! if this was an actual laptop or desktop i will add drivers but im testing on a hyper v vm, what drivers do i need ? SMSPXE Log attached. thanks,

Hi, Any help ??

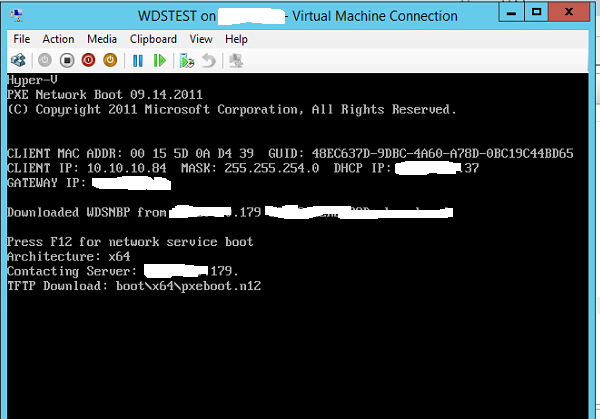

Hi, For a while everything was working fine upgrading and fresh installs of Windows 10 (PXEBoot) until last night. - I'm unable to boot into WinPE to select my TS from pxe boot - it boots fine and get an ip from dhcp, but all i get after is cmd window with wpeinit (check screen shot below) - I cant see my task sequence now or anything - Upgrading from with in windows is fine. Here's my setup: 1 DC with DHCP 1 SCCM server with all the roles + WSUS + WDS I only have 1 boot image. this is what happen when i try to boot: i receive and IP from dhcp but why is it says for TFTP : boot\x64\pxeboot.n12 ?? shouldn't it be smsboot\x64\wdsnbp ! And i don't even reach the point to enter a password for the task sequence. After the two screen above i go to the first screen shot i sent CMD - wpeinit the log shows this: PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE 6/30/2016 10:00:46 AM 6444 (0x192C) PXE::MP_LookupDevice failed; 0x80004005 SMSPXE PXE::MP_InitializeTransport failed; 0x80004005 SMSPXE PXE::MP_ReportStatus failed; 0x80004005 SMSPXE PXE Provider failed to process message. Unspecified error (Error: 80004005; Source: Windows) SMSPXE **check attachments for screen shots** please help. thanks,
