In Part 1 of this guide, you learned about the features available in the CM12 UEFI BitLocker FrontEnd HTA, in this part you will learning about installing it in your environment. However before you start make sure to fulfill the requirements listed below first.
Step 1. Fulfill these Requirements first
There are some requirements however, therefore before continuing this guide I will assume that you have:
Integrated MDT 2013 with Configuration Manager 2012 R2
Installed and configured MBAM 2.0 or later
Installed and configured Maik Kosters 7.3 web services
If you have not done the above yet, then do so, below are some links that should help you accomplish those tasks.
Integrate MDT 2013 with Configuration Manager 2012 R2 - Guide Install and configure MBAM 2.0 or later - Guide 1, Guide 2.
Install and configure Maik Kosters web services - Guide (don't forget to install ASP.NET 3.5 and associated ISAPI extensions)
ok once the above is done we'll extract some files, create some packages and import the task sequence before satisfying the dependencies within it.
Step 2. Extract the downloaded files

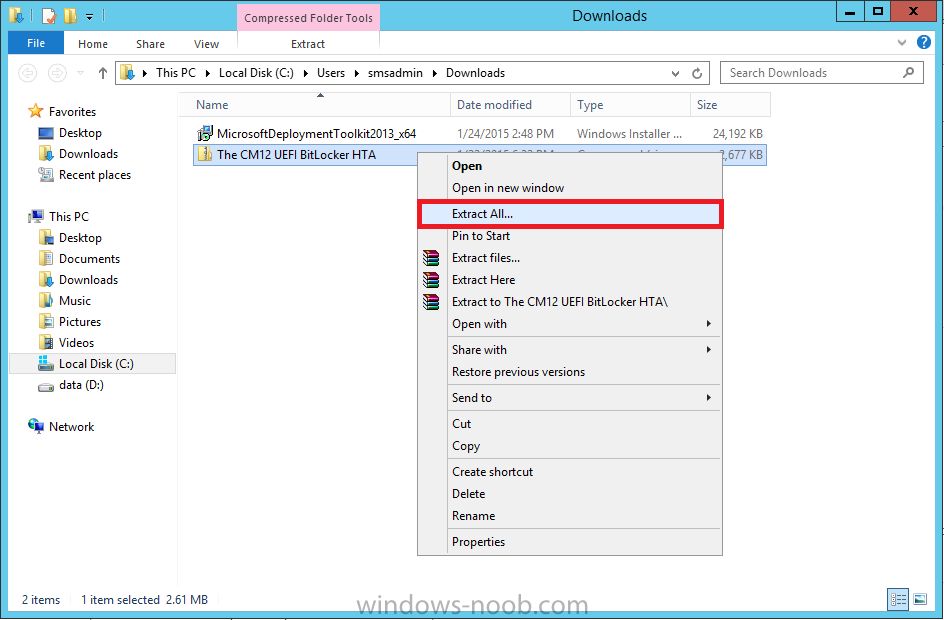

In part 1 you downloaded the CM12 UEFI BitLocker HTA and now you need to extract it. Right click on the downloaded zip file and choose Extract All.

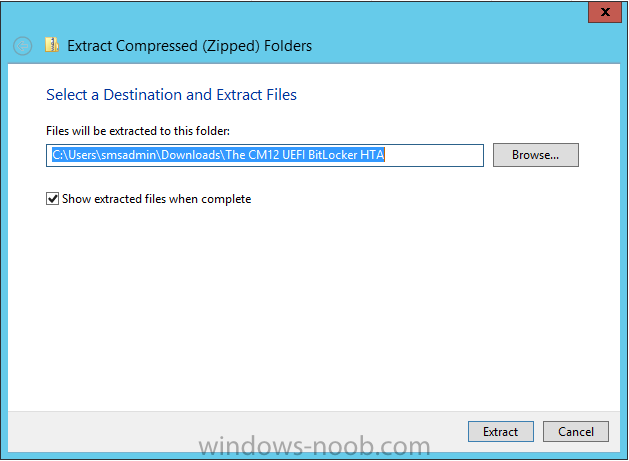

Select a destination for the extracted files

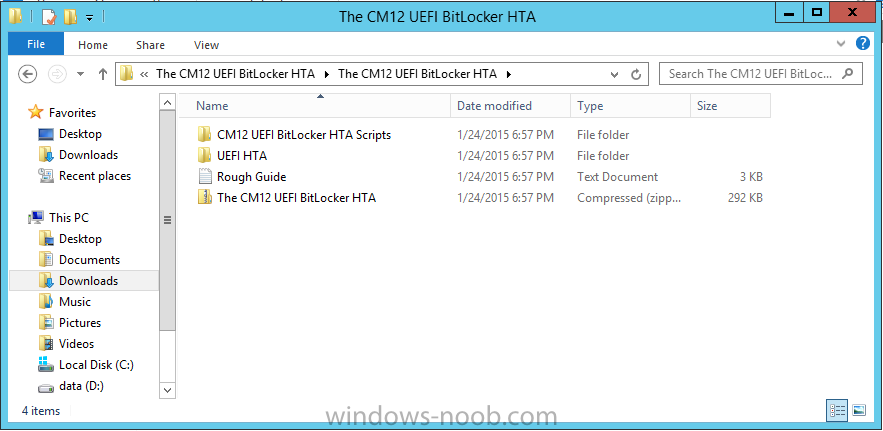

the extracted files will extract to a folder called The CM12 UEFI BitLocker FrontEnd HTA, click on that folder to view the contents, it should look like the below

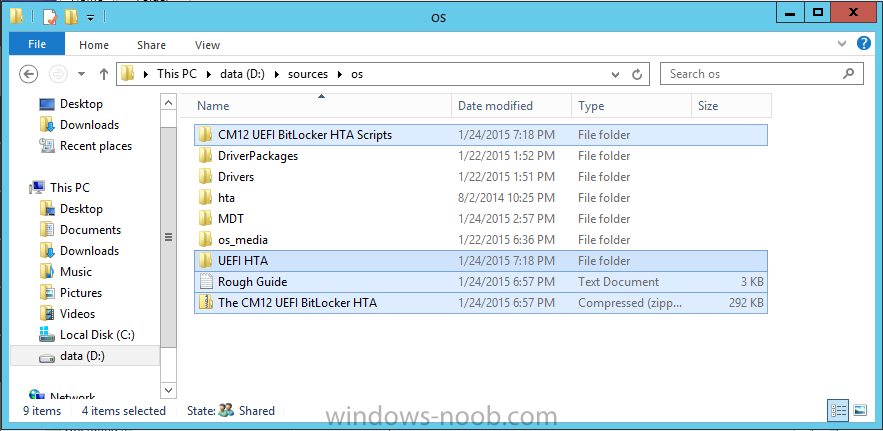

Copy everything in that folder to somewhere useful such as \\server\sources\os\
Note: Do NOT extract the zip file contained within the extracted files above.
Step 3. Create the CM12 UEFI BitLocker HTA Scripts package

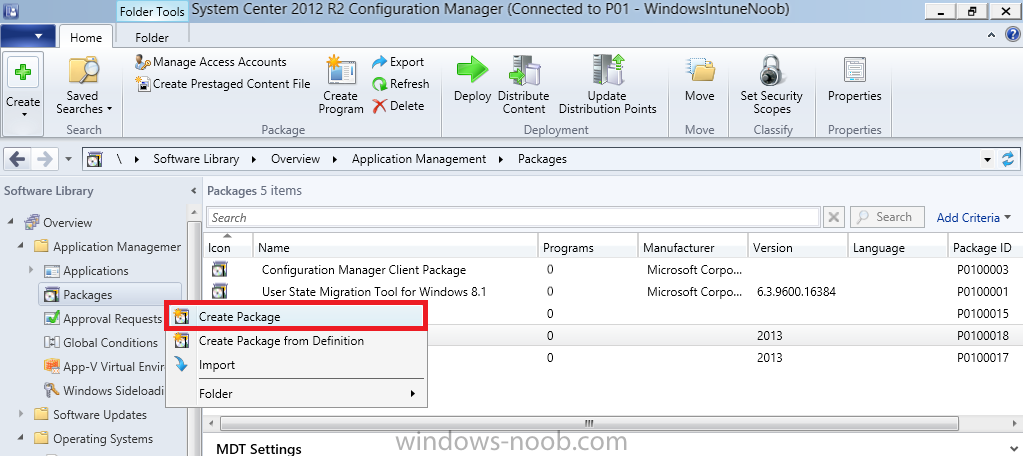

Open the Configuration Manager 2012 R2 console. Select the Software Library and then select Application Management then select Packages, choose Create Package as shown below

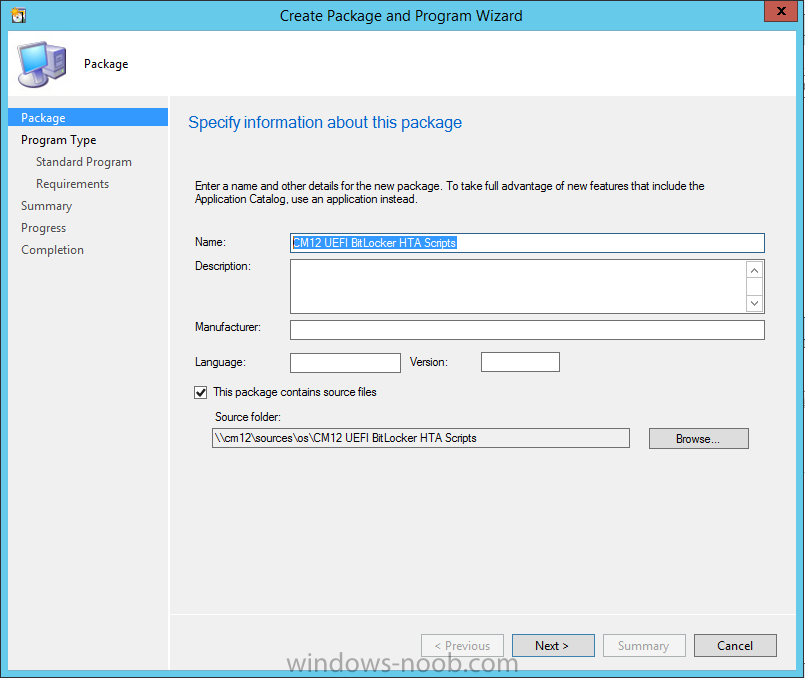

give the new package a name such as CM12 UEFI BitLocker HTA Scripts and point it to the UNC location of the CM12 UEFI BitLocker HTA Scripts folder as shown below

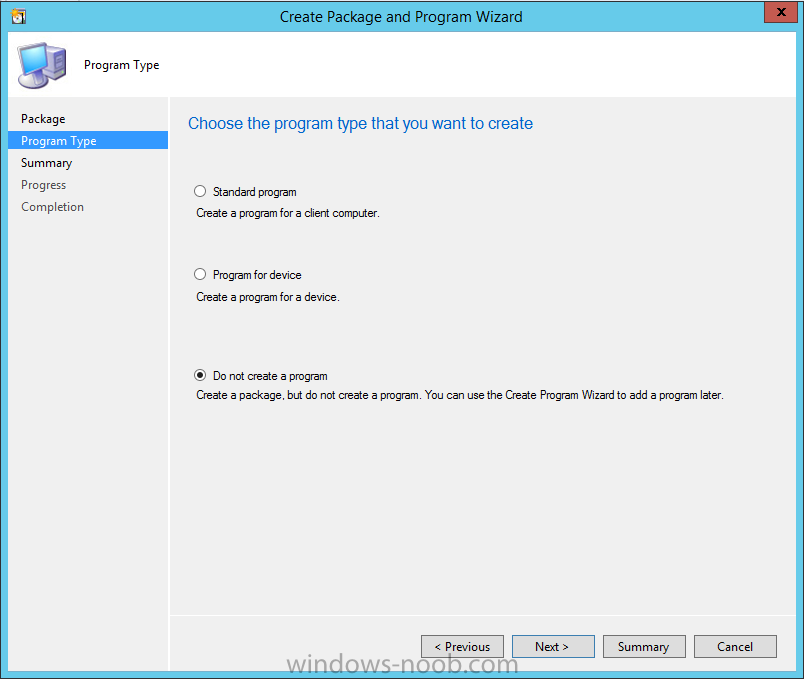

Choose Do not create a program

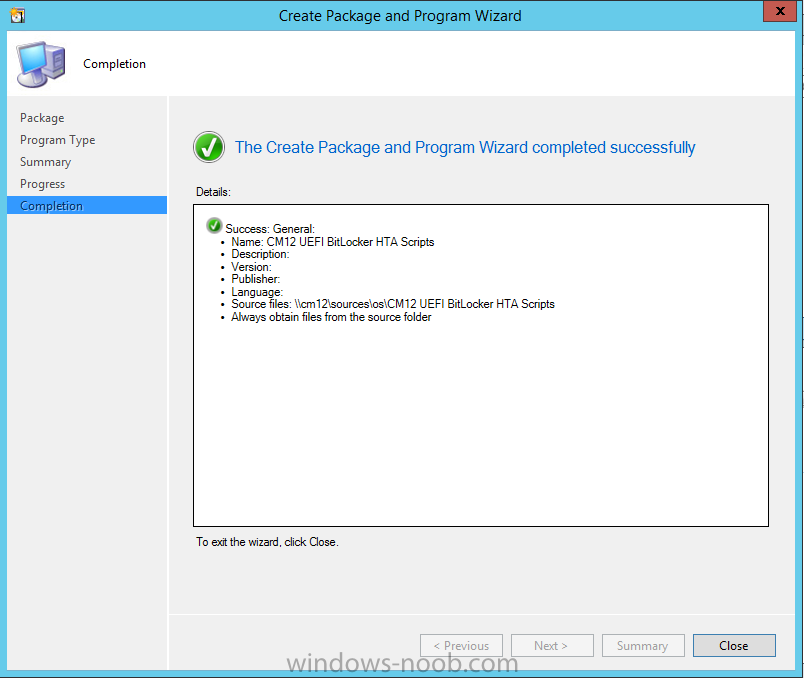

continue through that wizard until completion
Step 4. Create the UEFI HTA package
Select the Software Library and then select Application Management then select Packages, choose Create Package as shown below

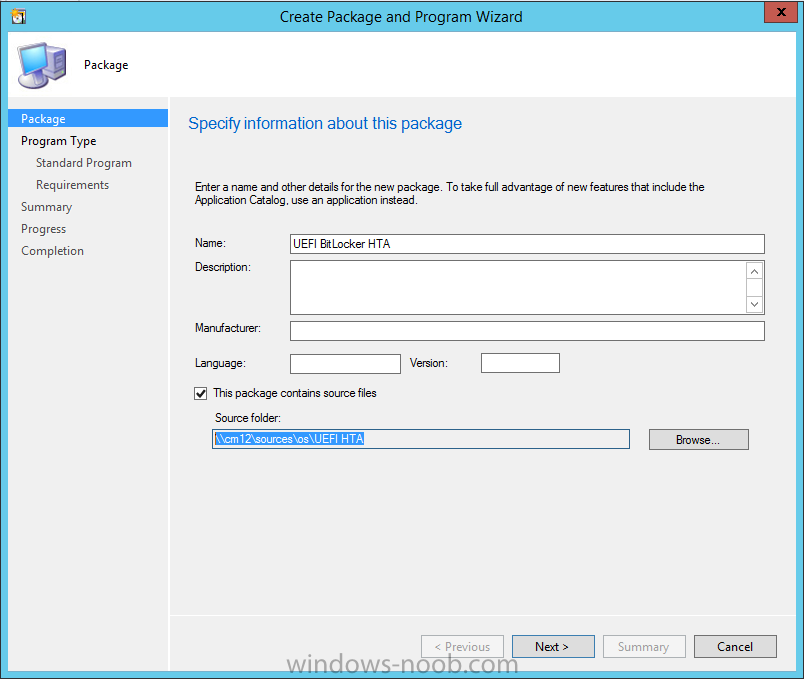

Give the package a name such as UEFI BitLocker HTA and point it to the folder containing the UEFI HTA files as shown below
Choose Do not create a program

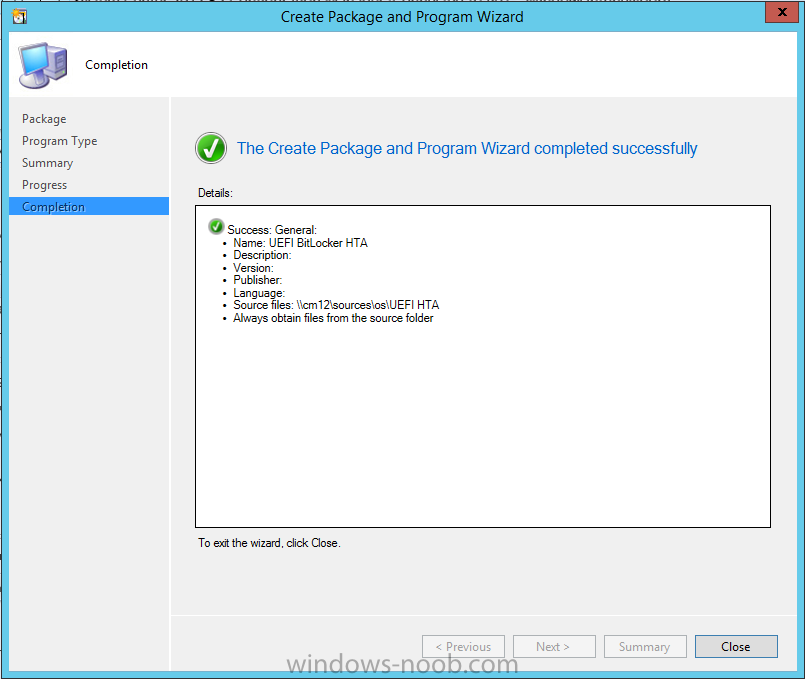

continue through that wizard until completion
Step 5. Distribute the new packages

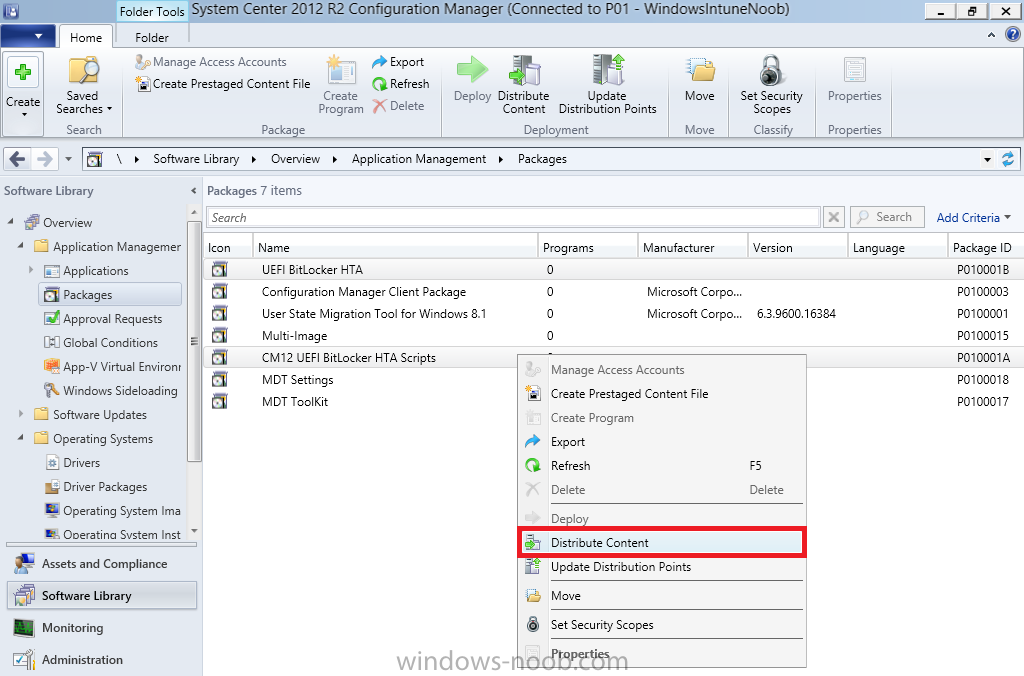

Select the two newly created packages by holding down CTRL when clicking on the packages, right click and choose Distribute Content as shown below

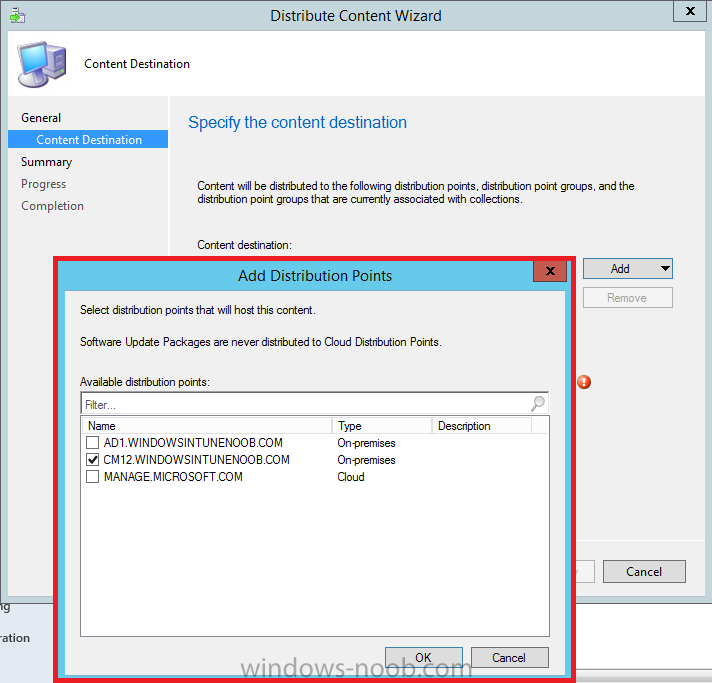

Click next, then select the content destination by clicking on the Add drop down, then select Distribution Points, once done, select one or more distribution points that you want the content on

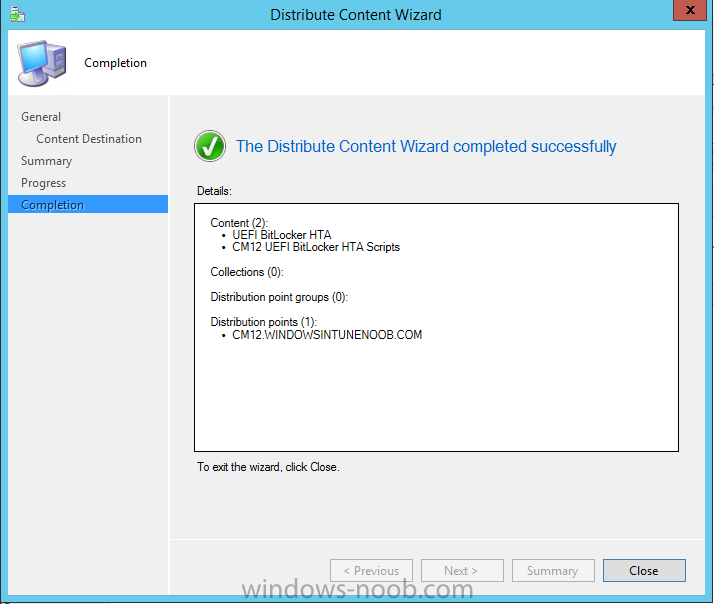

continue through that wizard until completion.
Step 6. Import the Task Sequence

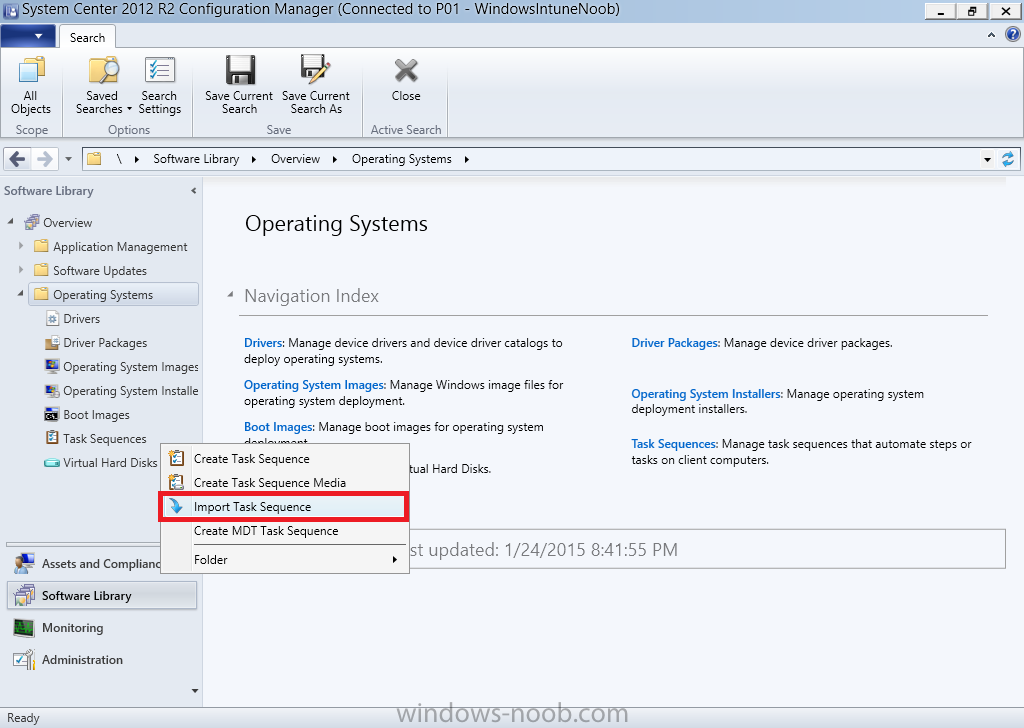

In the Configuration Manager console, select Operating Systems, expand Task Sequences, right click and choose Import Task Sequence as shown below

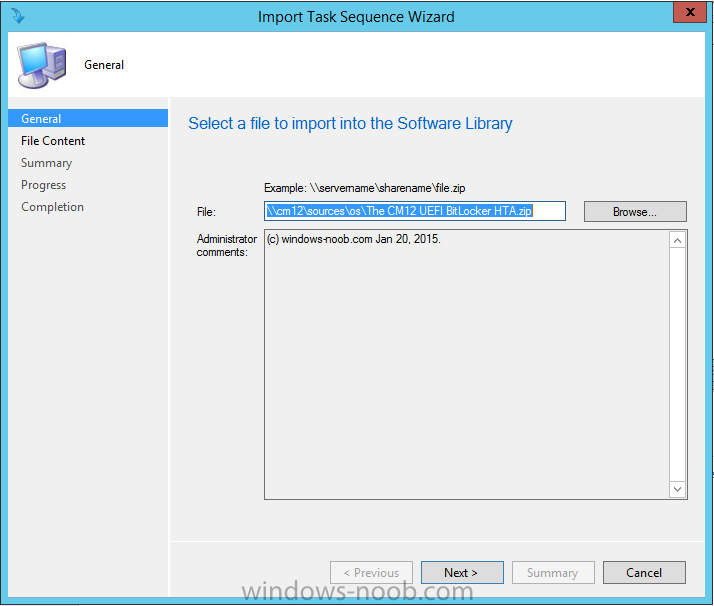

point to the UNC network path where you copied the contents of the extracted ZIP file from step 2 above as shown below

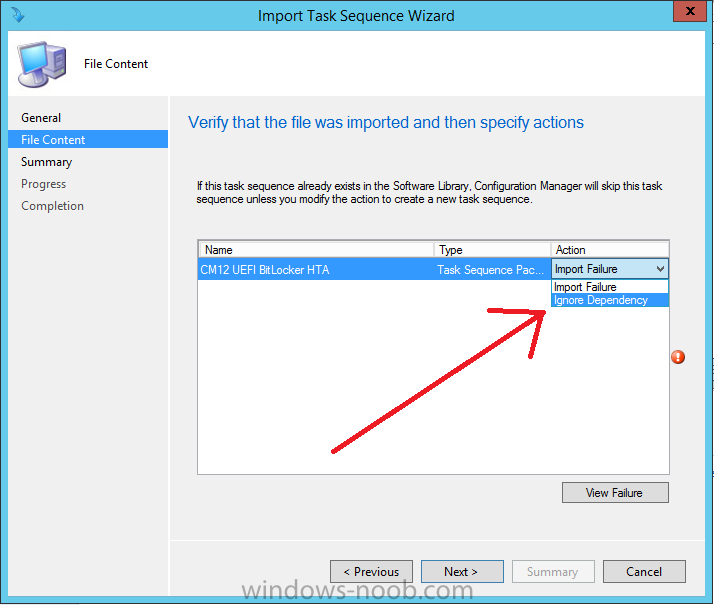

in the task sequence file content screen, the drop down menu allows you to change from Import Failure to Ignore Dependency, select that option and click next, this is to allow you to import the task sequence without having the same boot wim image as I used when exporting it, you can click on View Failure to review exactly what dependencies are missing on your site for the task sequence.

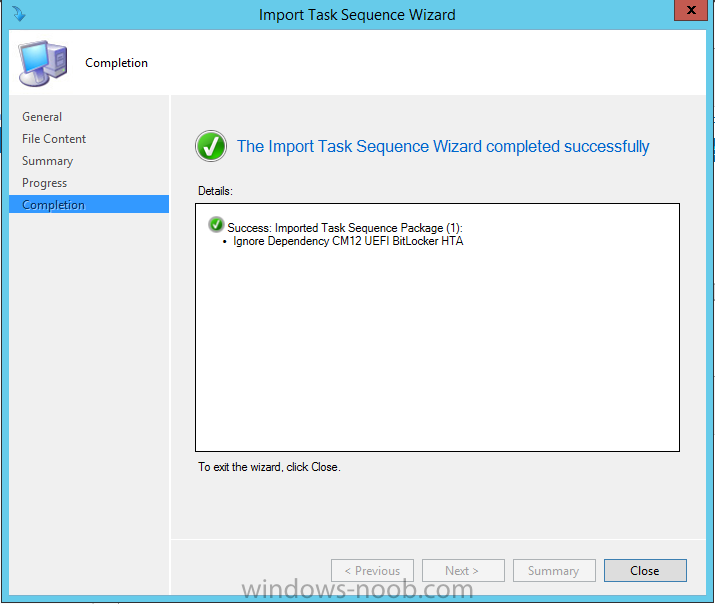

the import should complete successfully.
Step 7. Download the language packs
Using your Volume Licence or MSDN subscription access, download the Language packs for Windows 8.1 x64 with Update. Search for the following term
Windows 8.1 Language Pack with Update

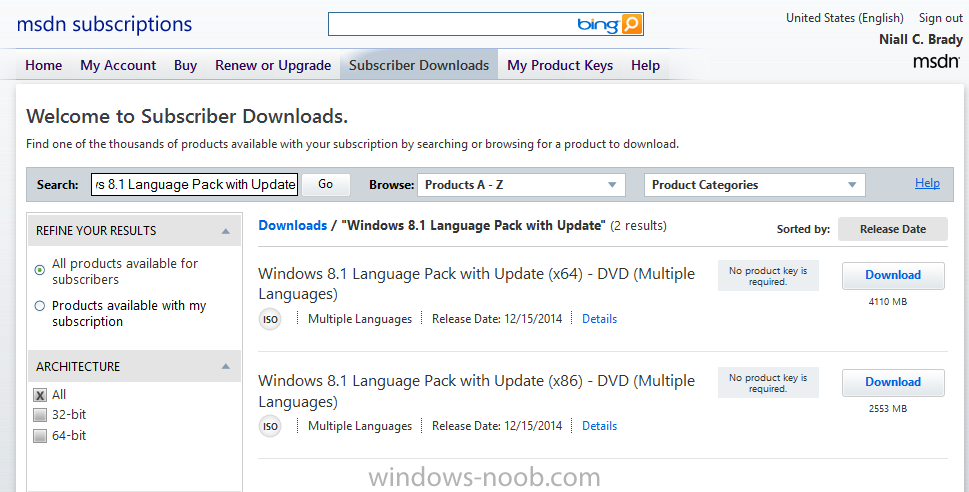

The DVD ISO file should be similar to those shown below on MSDN. Select the x64 iso if your UEFI hardware is 64 bit (most is) otherwise select x86. The language pack download contains the following languages
Once downloaded, mount the iso file by right clicking it and choose Mount, then copy the language packs you intend to support to somewhere useful as shown below

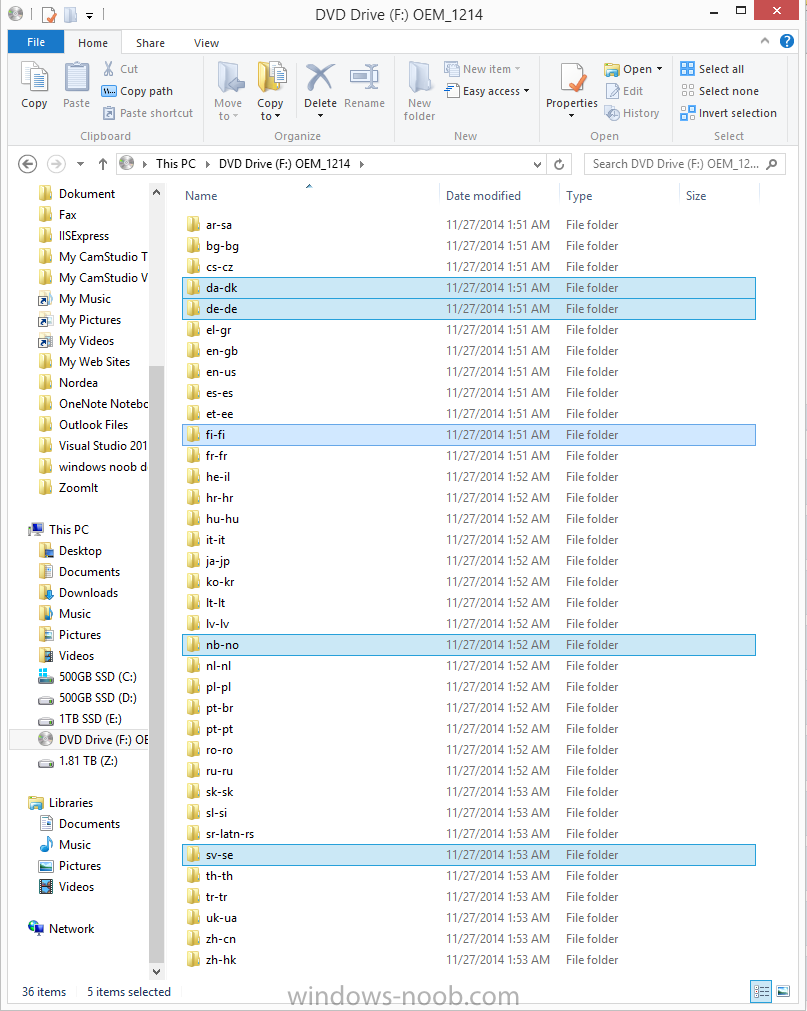

mark the language packs by selecting the ones you need,

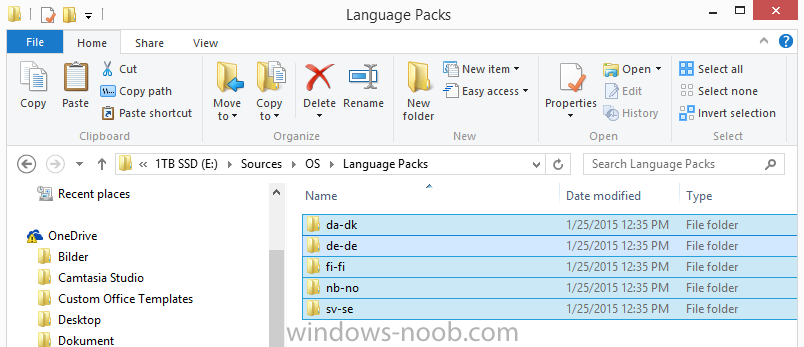

and copy them to a temporary folder called Language Packs as shown below

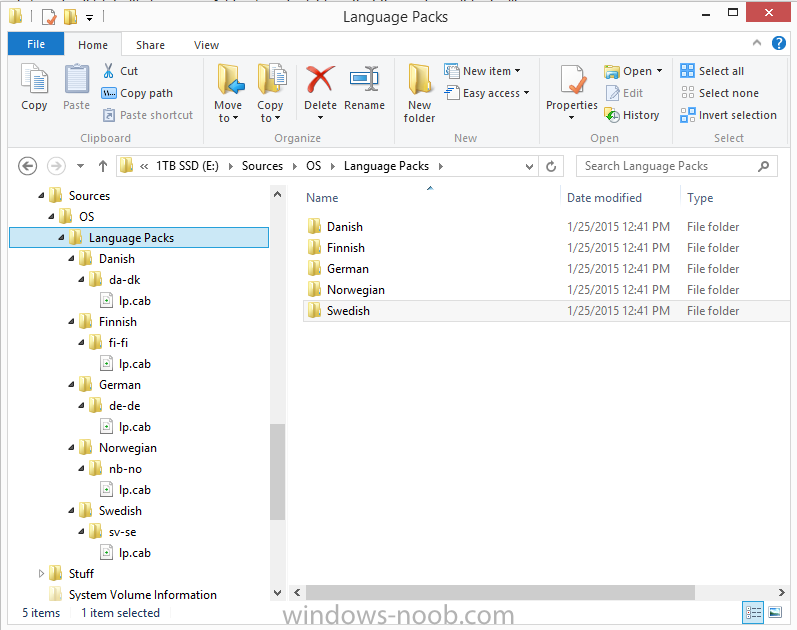

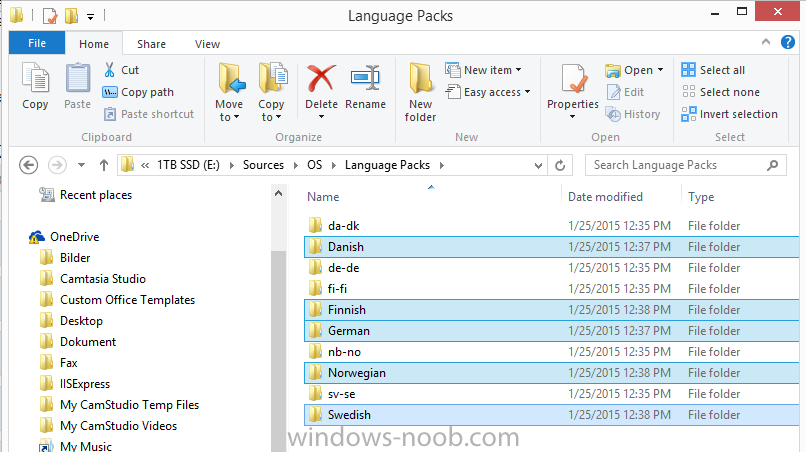

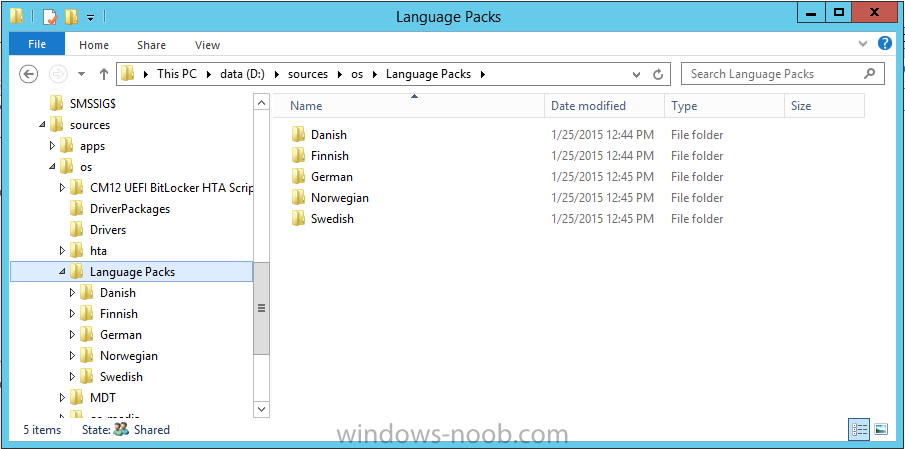

Create one folder matching the language of each language pack you have selected, so for example if you selected the da-dk language pack, then create a new folder called Danish. Below I've created 5 folders for my respective language packs.
next, copy the respective language pack (eg: da-dk) into it's language folder (eg: danish) so that the end result looks like so
copy those files and folders from your temp folder to your Configuration Manager server as shown below
Step 8. Create Language packs packages
Select the Software Library and then select Application Management then select Packages, choose Create Package as shown below

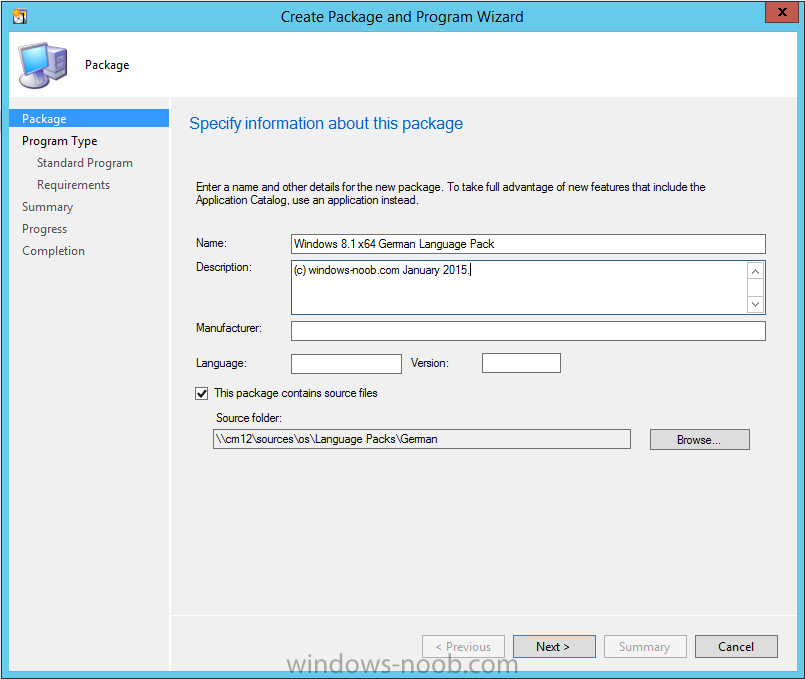

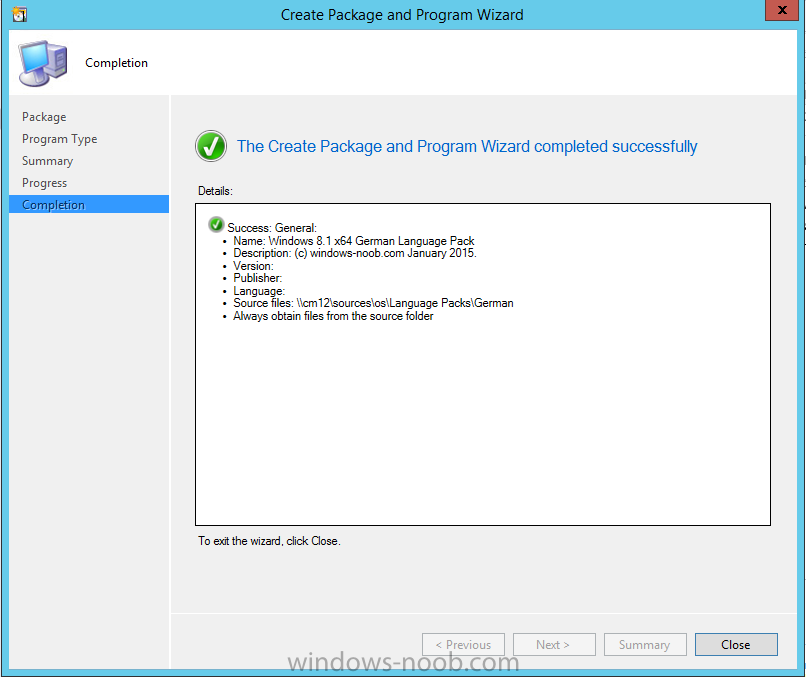

Give the package a suitable name like Windows 8.1 x64 German Language Pack and point to the top folder for that language pack, eg: German as shown in the screenshot below
Choose Do not create a program and continue through the wizard until completion.
Note: Repeat the above process for each language pack you want made available in the task sequence.
Step 9. Distribute Language packages

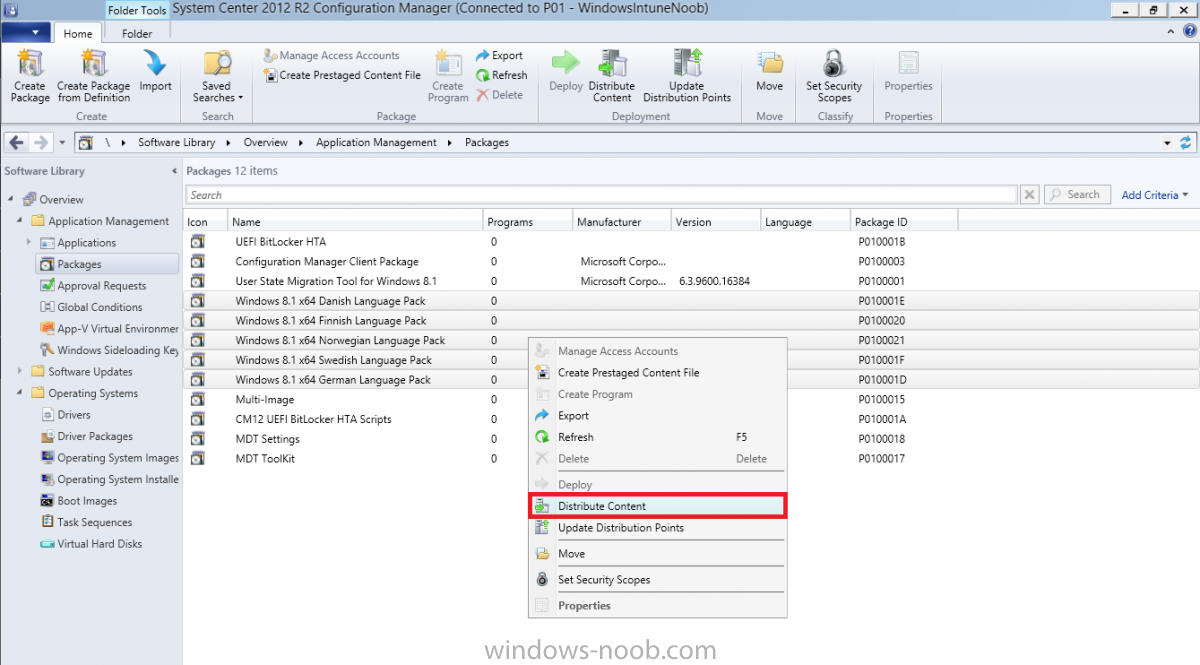

Right click on your newly created language packs and choose Distribute Content,
continue through the wizard as shown already in step 5 above.
Step 10. Create an Unattend.XML package

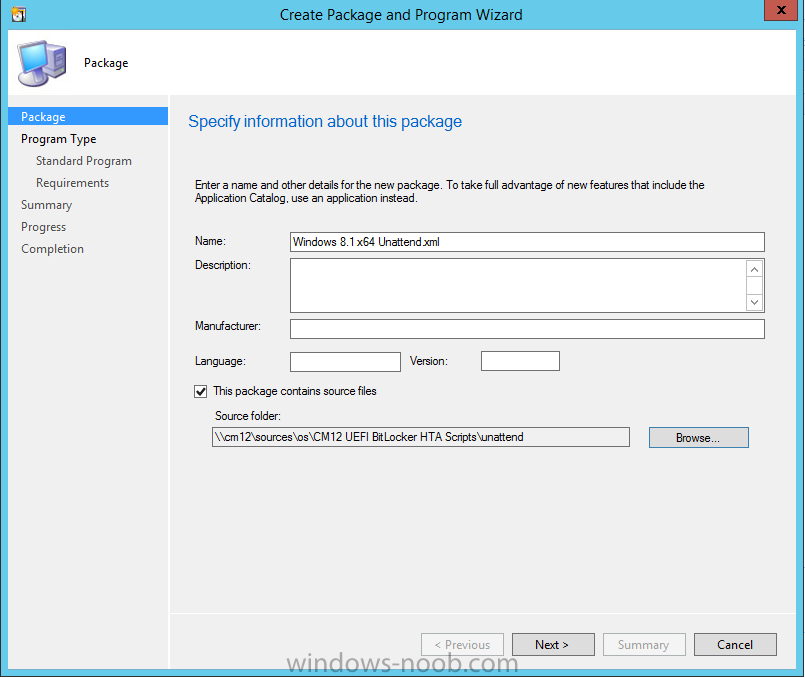

In the CM12 UEFI BitLocker HTA scripts\Unattend folder, you'll find some xml files, create a package using that folder as shown below
Choose Do not create a program and continue through the wizard until completion, when done, right click the package and distribute content to your distribution points as shown in Step 5.
Step 11. Create MBAM client packages

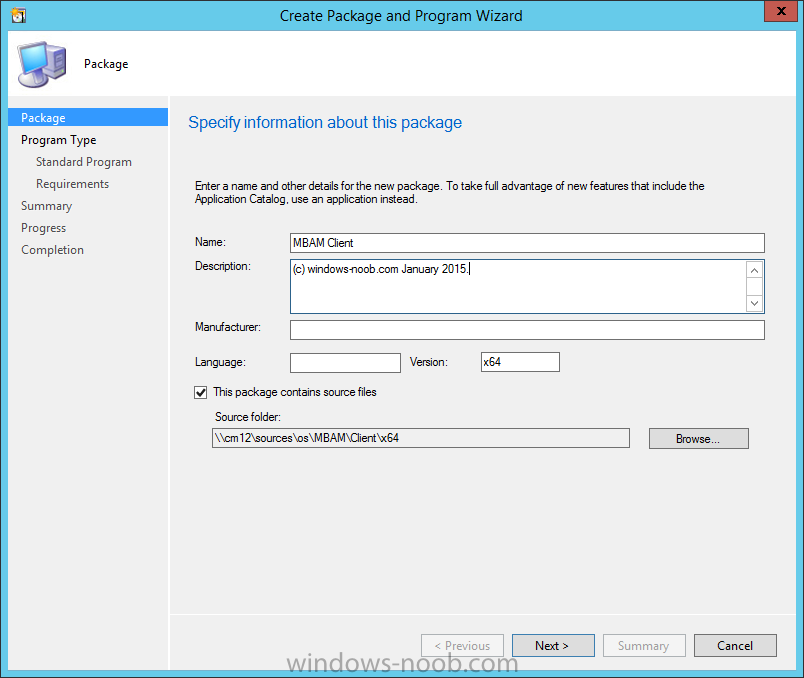

Locate the MBAM client installation files that are provided with the MBAM software, and create two MBAM packages, one for MBAM x64 and the other for MBAM x86 clients as shown below (for the x64 MBAM package)

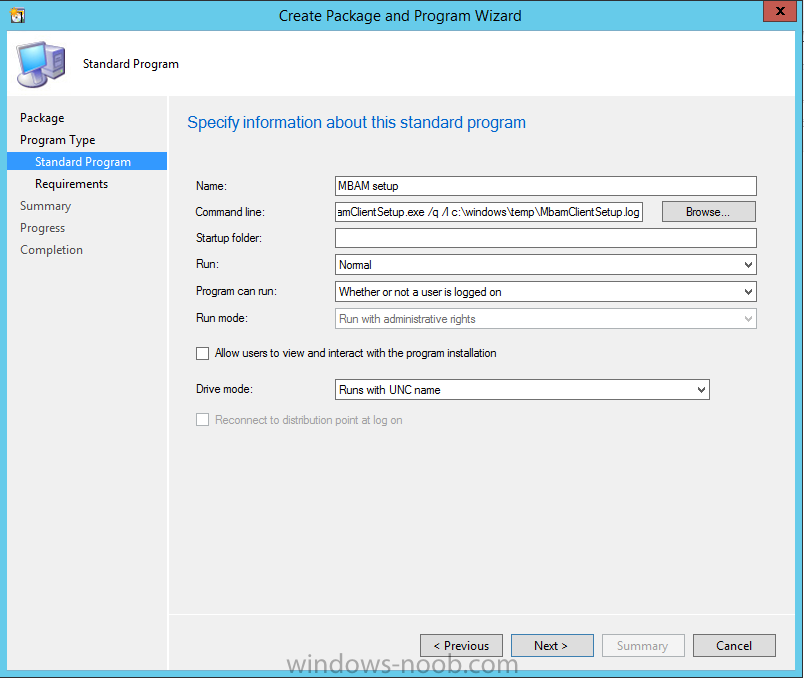

Create a Standard Program for each package with the following parameters
continue through the wizard and distribute the packages to your Distribution Points as shown in Step 5.
Step 12. Edit the task sequence to fix missing references

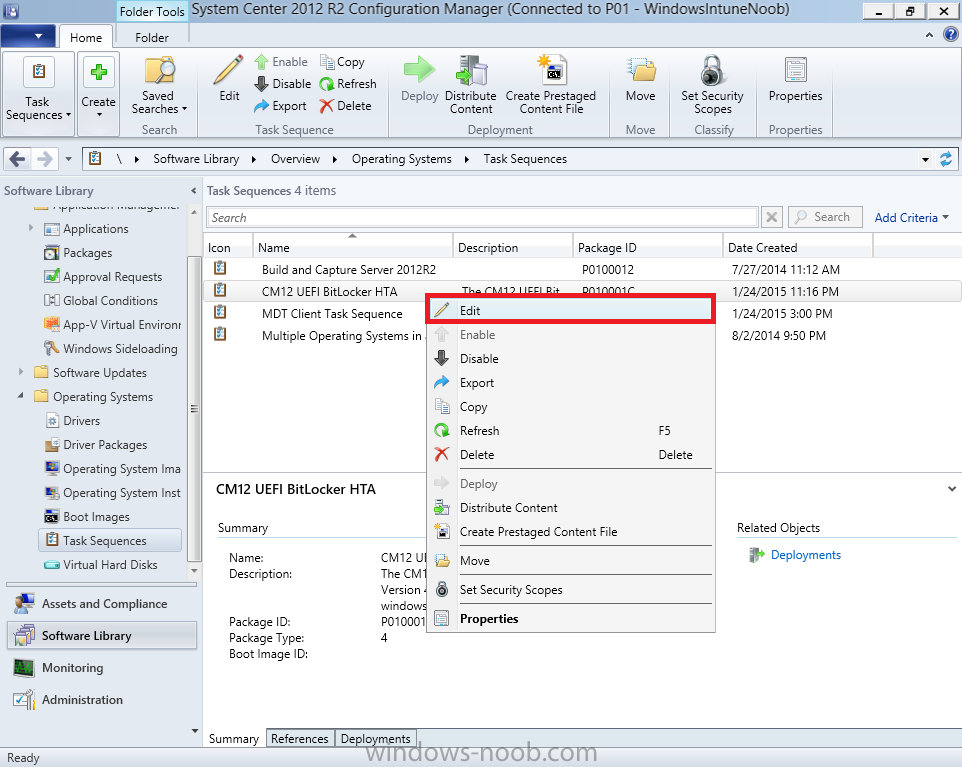

Right click on the newly imported task sequence and choose Edit as shown below

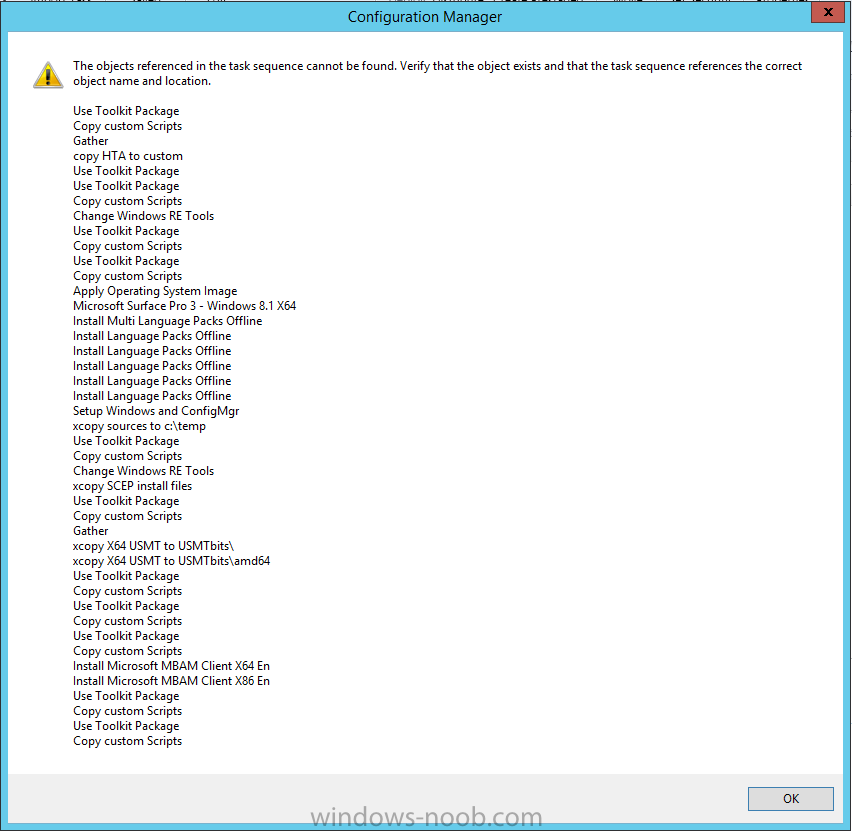

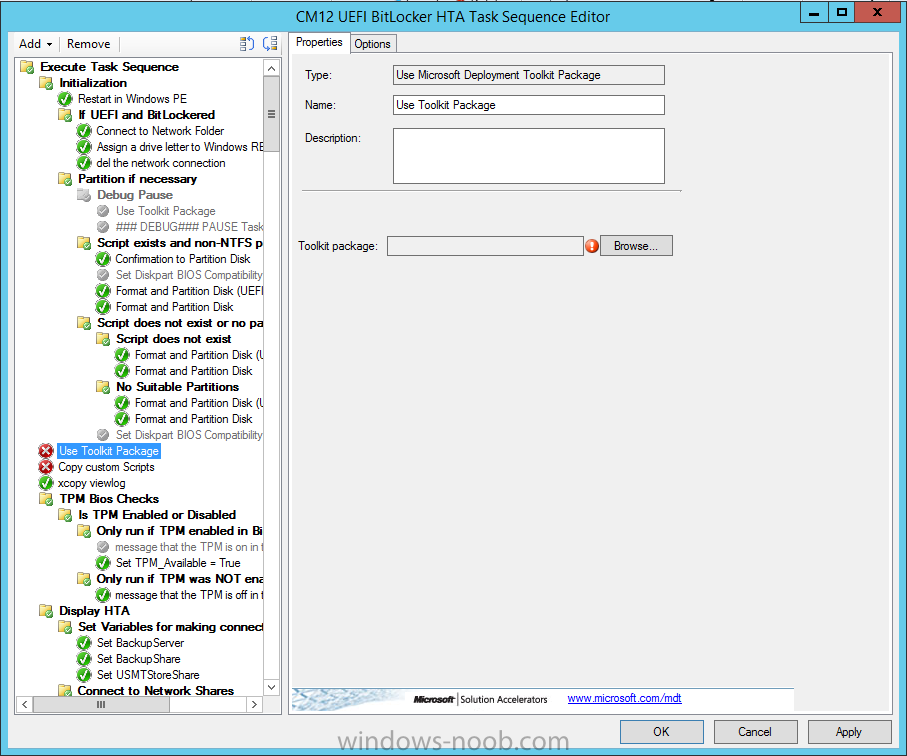

at this point you'll get an extremely long list of missing reference objects, don't panic, it's easier to fix than it looks.
Scroll up to the top of the opened task sequence, any package that needs to be re-referenced will be marked with a red x such as the Use Toolkit Package step shown here.

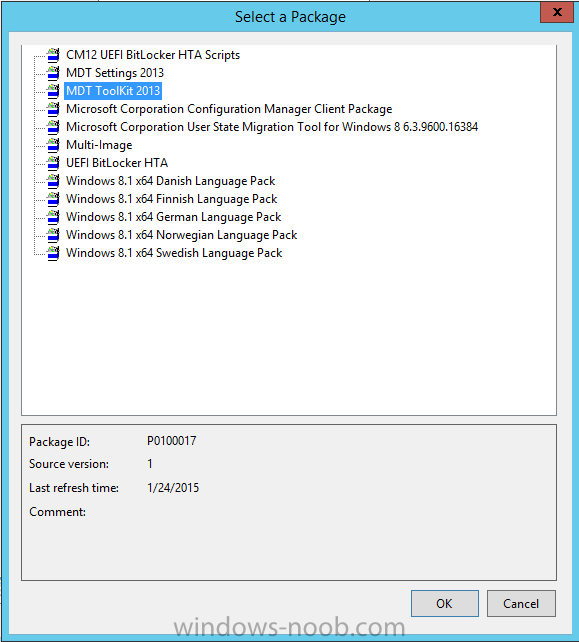

Click on Browse beside the missing package, and Select the correct MDT 2013 Toolkit package which you created when you integrated MDT with Configuration Manager by following this guide.

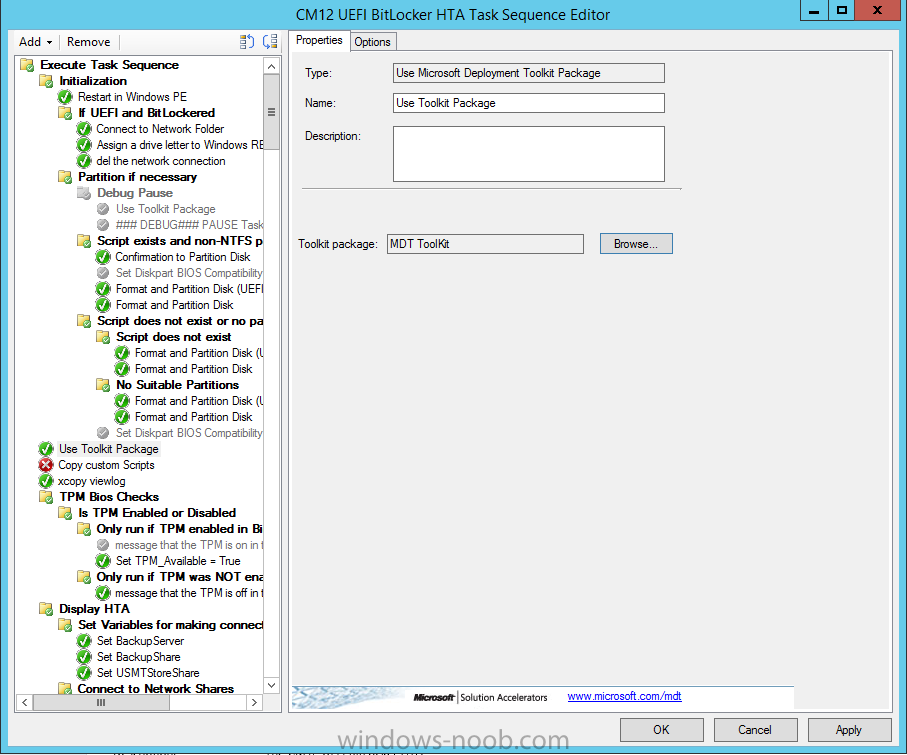

The completed step now looks like this

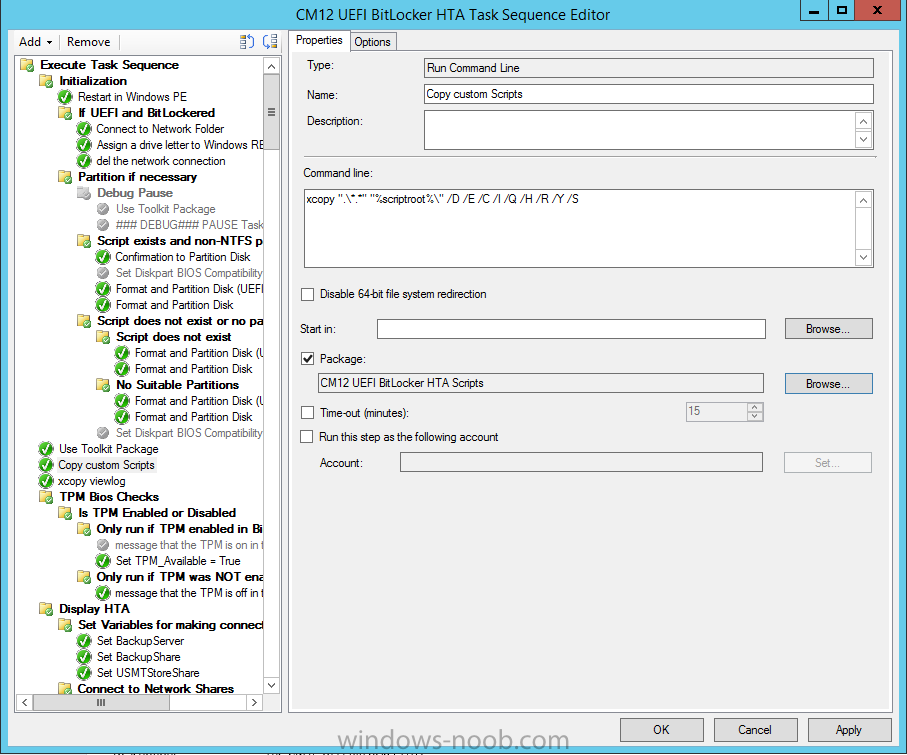

The Copy custom scripts step is basically using our CM12 UEFI BitLocker HTA scripts package as shown below, in addition the Change Windows RE Tools step uses the same scripts package.

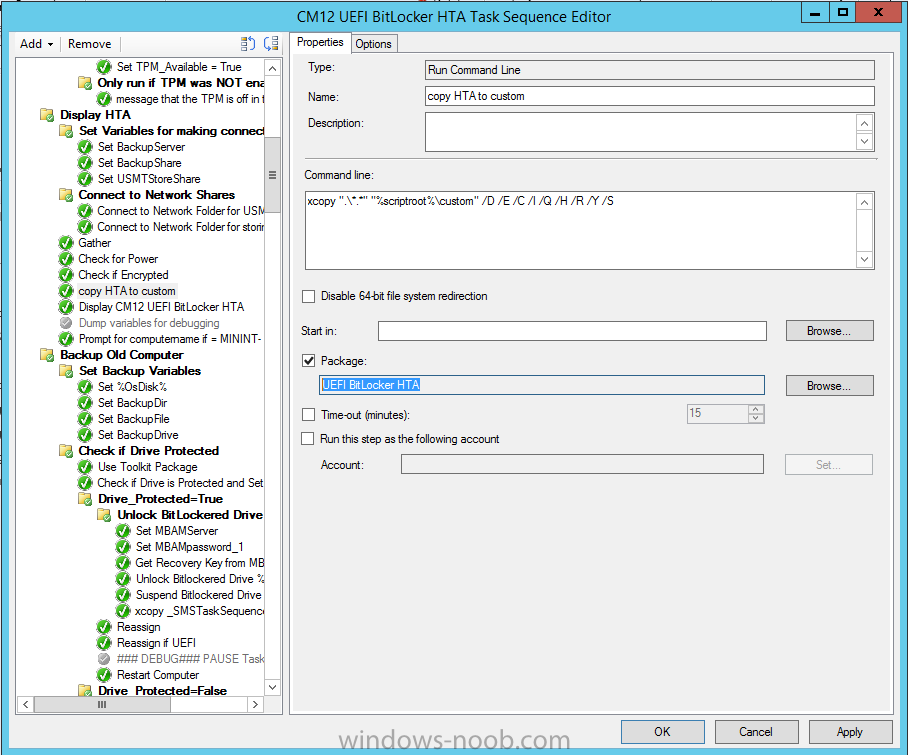

The copy HTA to custom step looks like so (use the UEFI BitLocker HTA package created earlier)
Repeat the above process for each and every step that needs it's package fixed. It will take some minutes but once done you can finally save the changes in the task sequence. I'll go through most of the 'different package steps below for your information so that there is no confusion about what goes where.
Note: the Unattend.xml file referenced in the Apply Operating System image step is created in step 10 above.

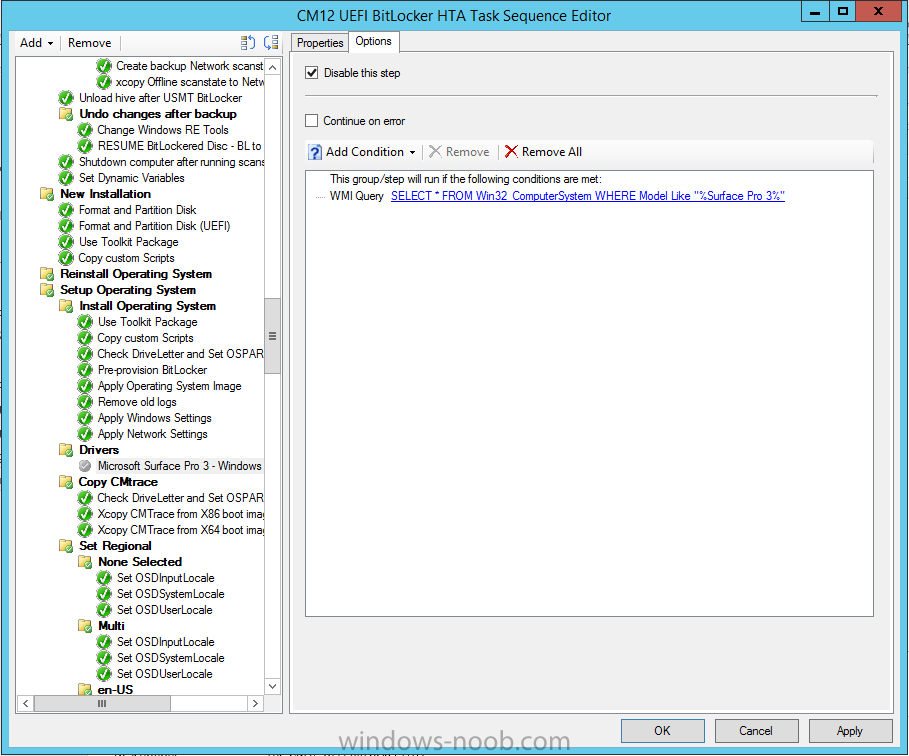

If you don't have a Surface Pro 3 in your organization you can disable that step as shown below or create the package using the powershell script as shown in this guide.

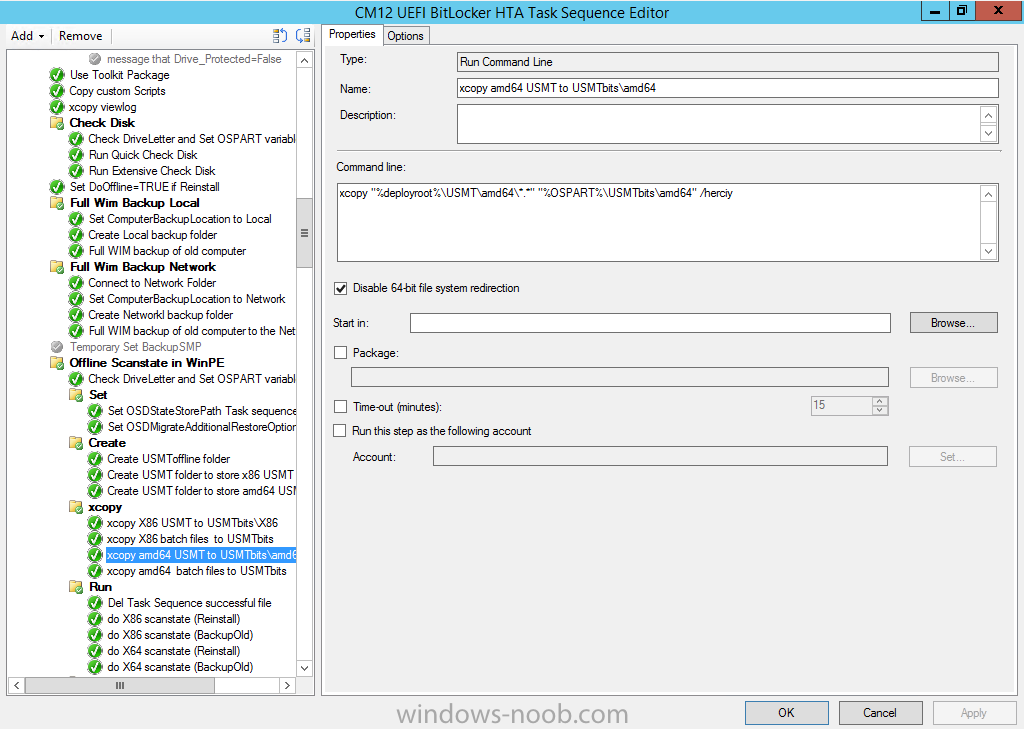

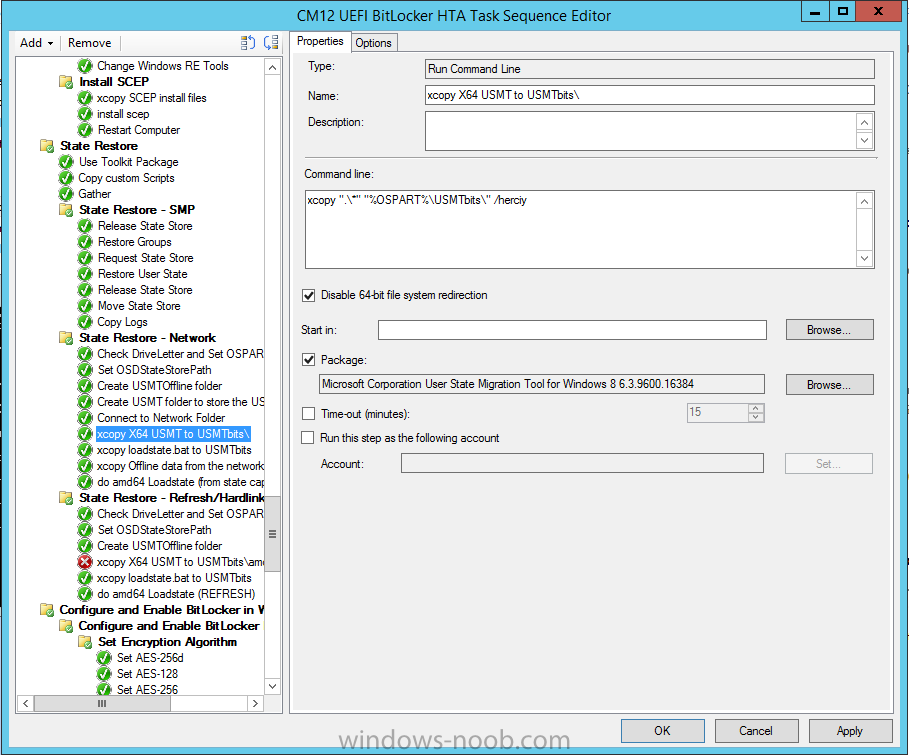

The USMT package references should point to your ADK created USMT package as shown below

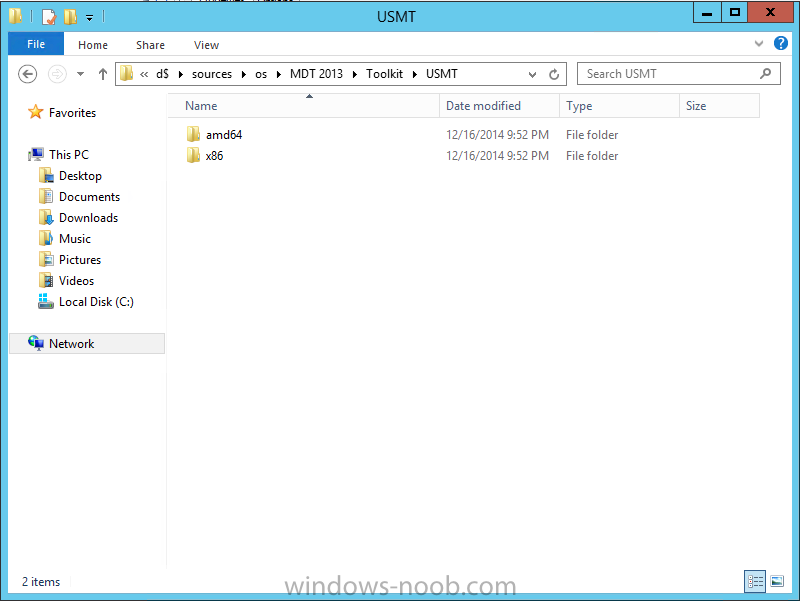

Note Each folder in the USMT package (amd64 and x86) should be populated with custom XML files that you create, the batch files used to run them can be modified to suit your needs, or make no modifications at all and use the samples in the download here.

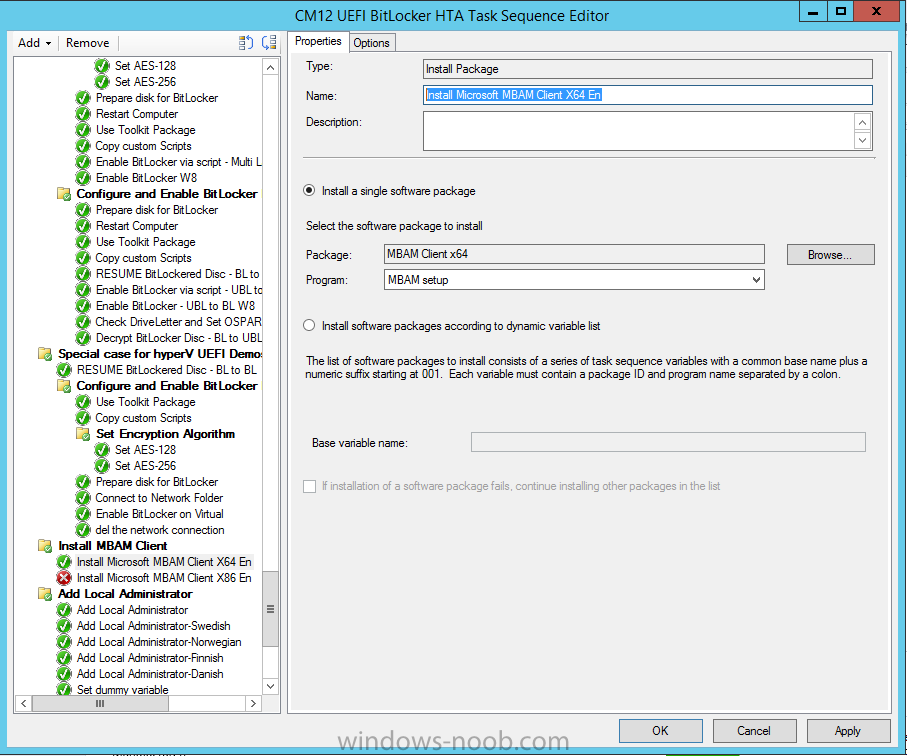

The Install Microsoft MBAM Client X64 En step will look like so
Step 13. Add PowerShell, MDAC and HTA support to your boot wim image

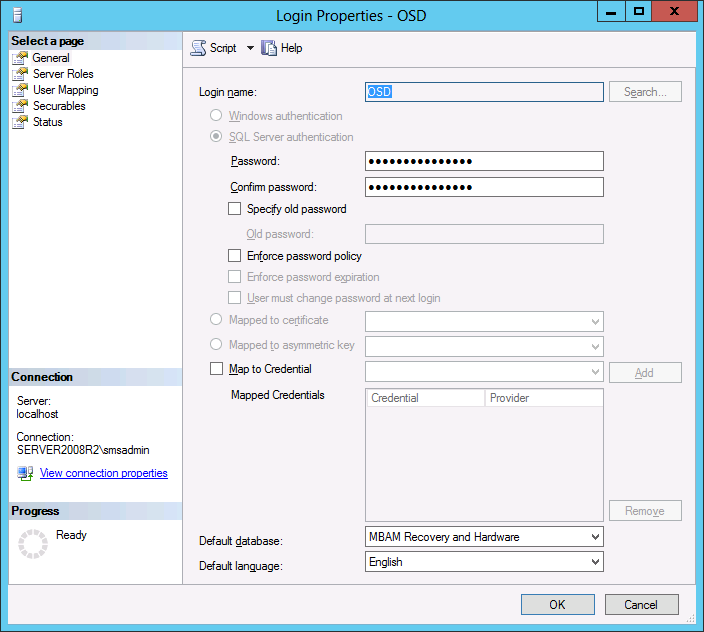

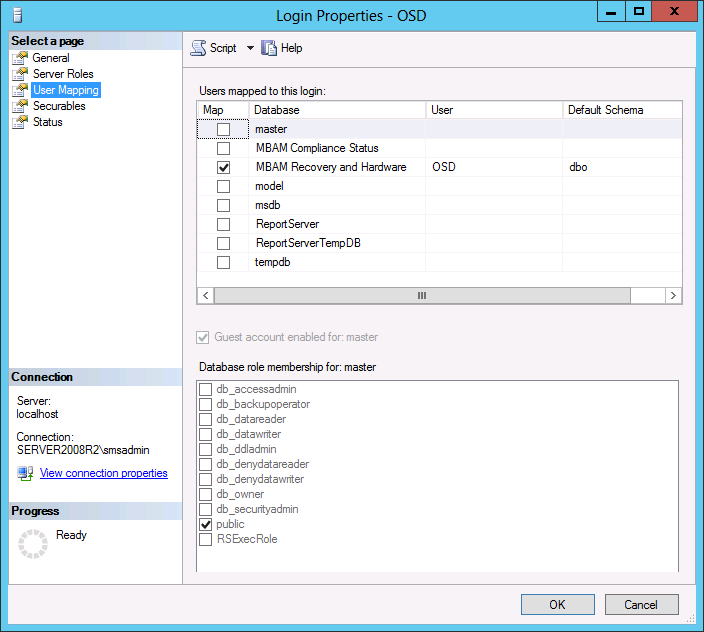

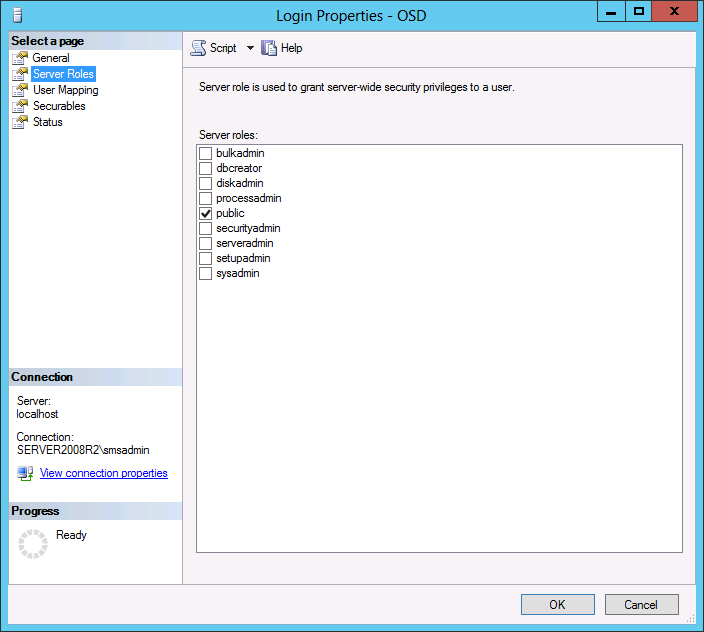

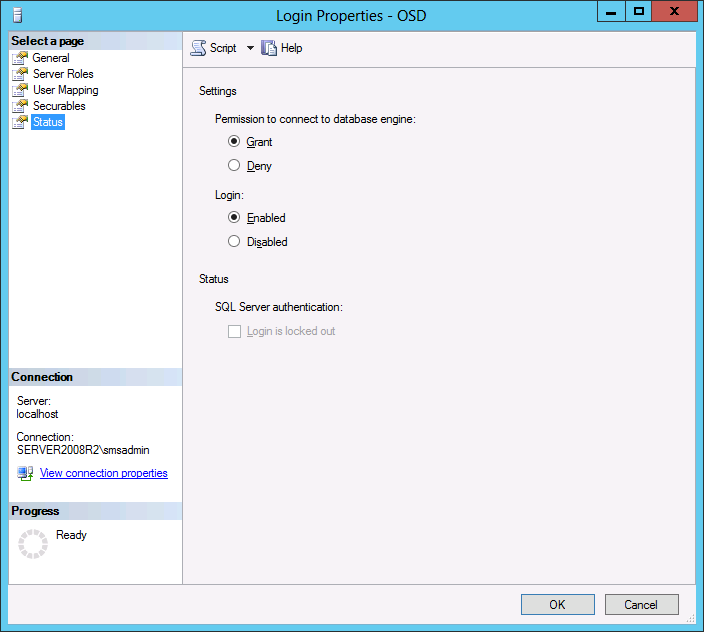

We'll need MDAC support to contact the MBAM SQL server, we'll need PowerShell support to run the ChangeRETools powershell script, and we'll need HTA support to display the CM12 UEFI HTA. To add this support to our boot wim image we need to do as follows:

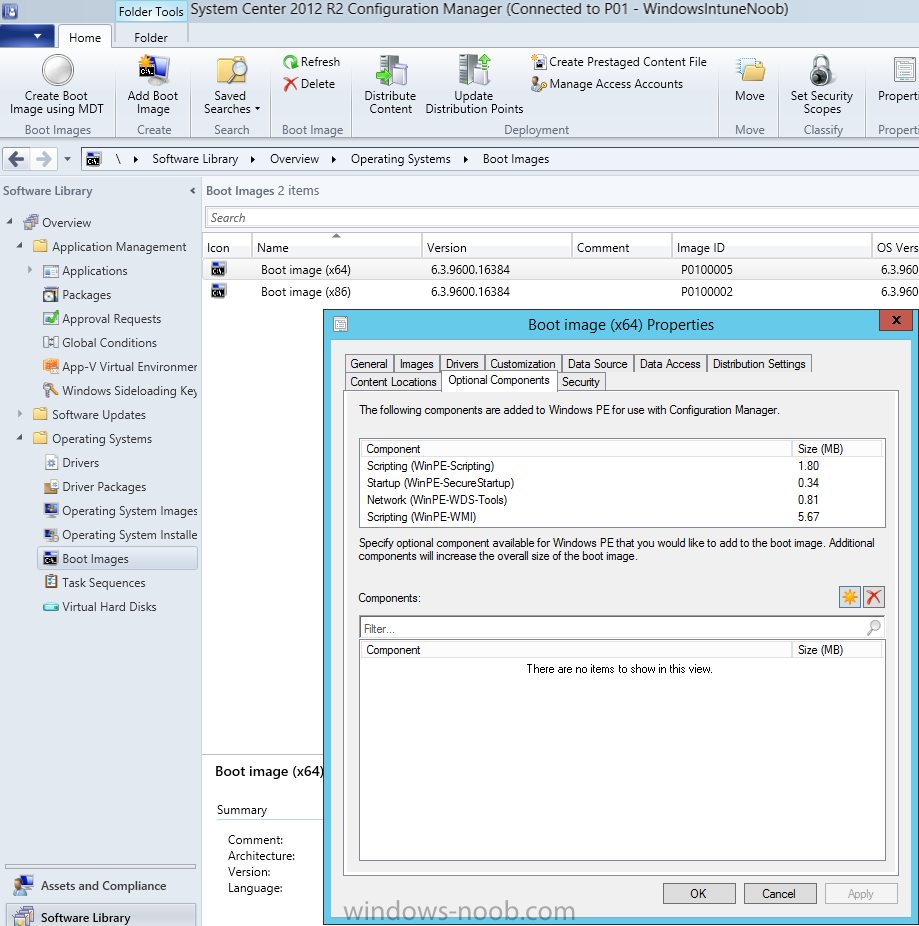

Select the x64 boot wim and right click, choose Properties and Optional Components.

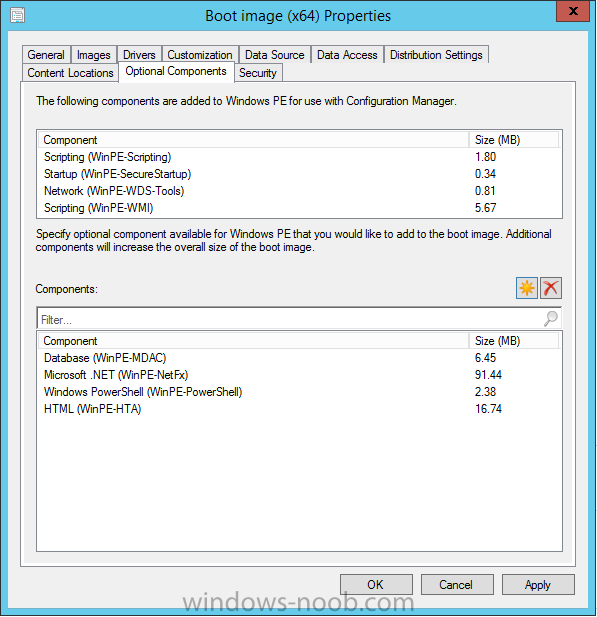

Add the following by clicking on the yellow startburst icon, note that Microsoft .NET (WinPE-NetFx) will be added automatically when you select Windows PowerShell,
Databse (WinPE-MDAC)
HTML (WinPE-HTA)
Windows Powershell (WinPE-PowerShell)
as shown below

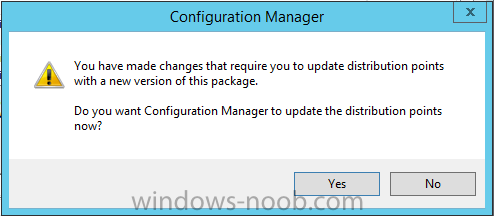

Click Apply when done and answer Yes to the prompt below
complete the wizard.
Step 14. Attach the edited boot wim to your task sequence

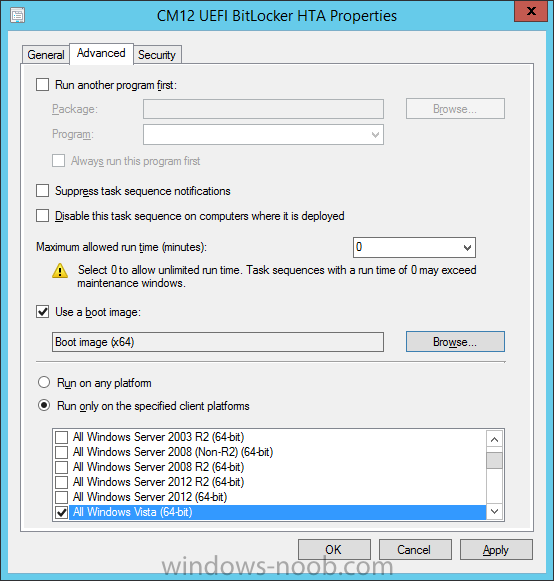

Right click on the task sequence and choose Properties, select Advanced, next select Use a boot image and point it to the newly updated X64 boot image as shown below.
Step 15. Edit the CustomSettings.ini file

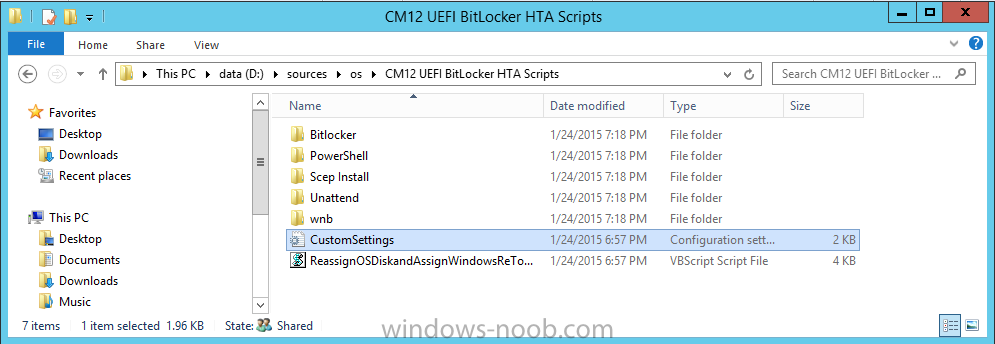

Locate the CustomSettings.ini file (included in the CM12 UEFI BitLocker FrontEnd HTA scripts folder

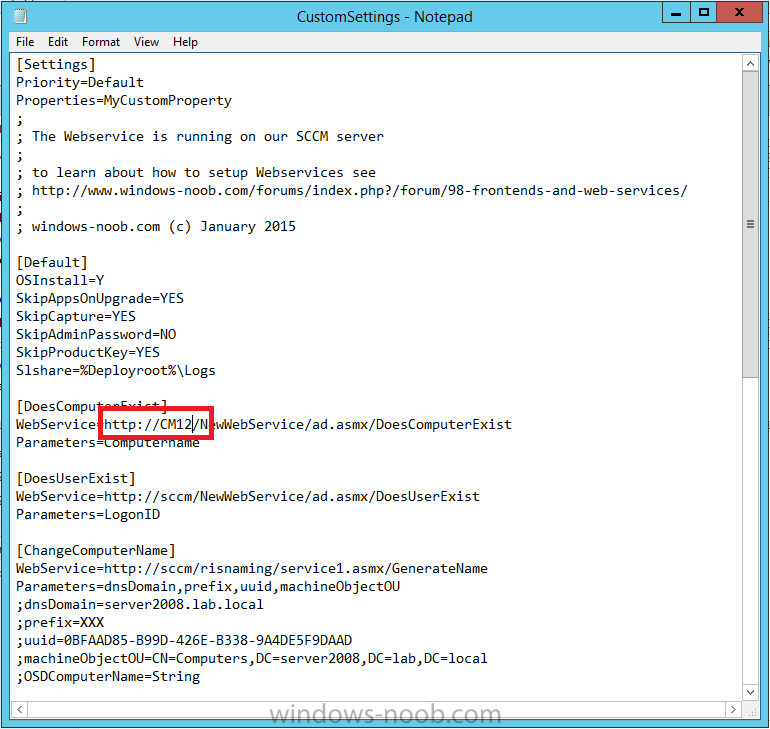

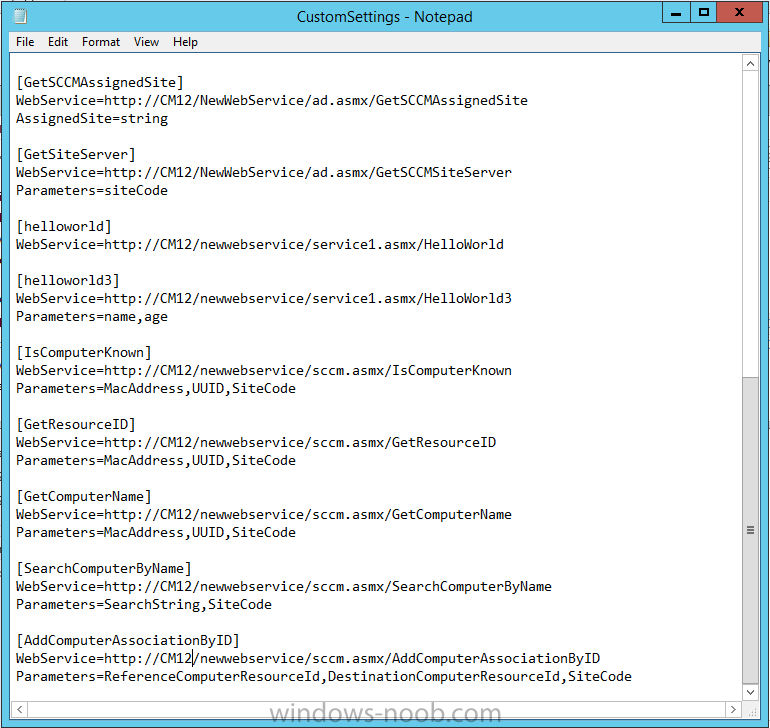

and edit it to point to your web service urls as shown below
repeat the above for each webservice URL encountered pointing to the correct server in your environment

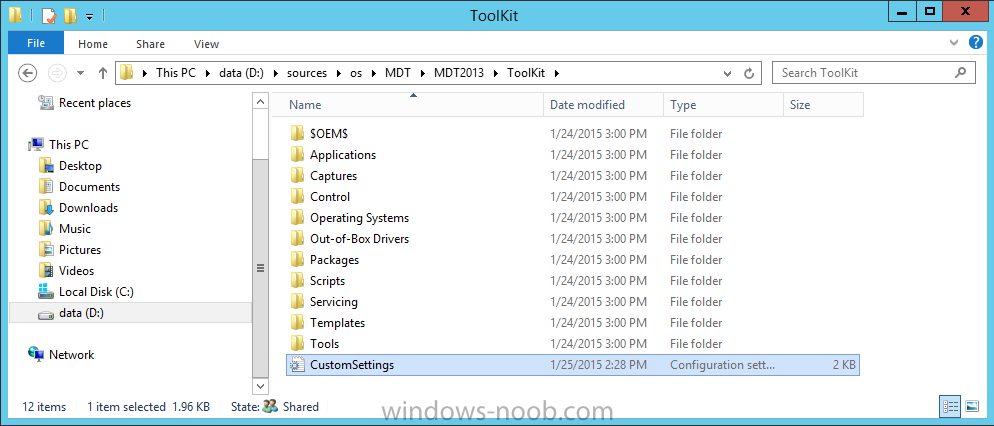

Save the file, and copy the new file to the ROOT of your MDT 2013 package like so

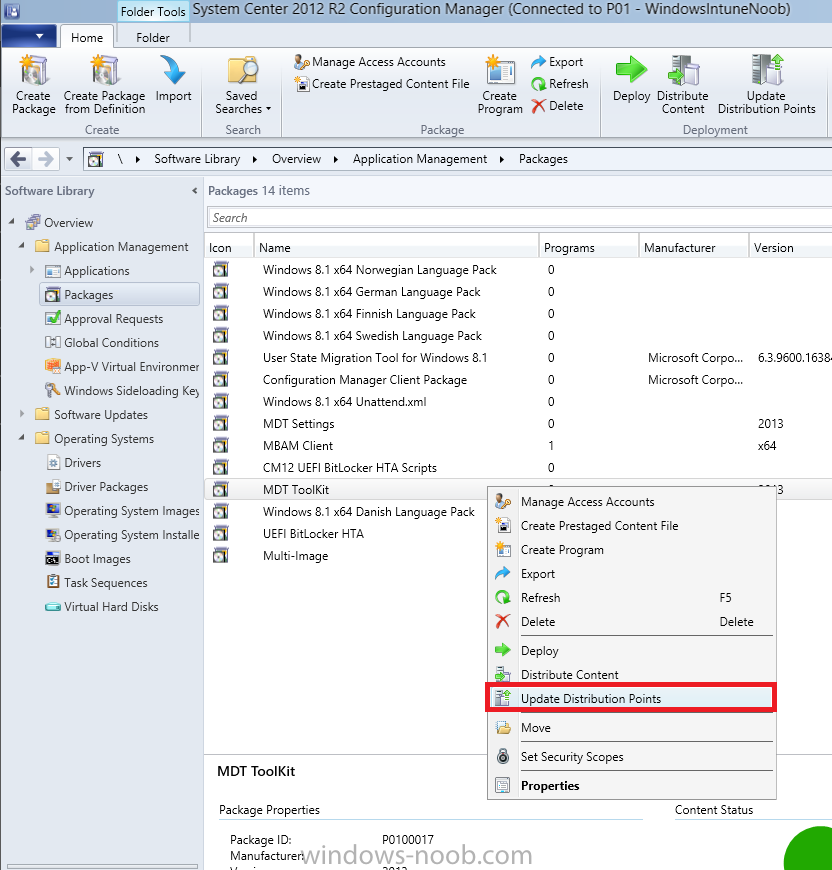

Finally, locate the MDT 2013 Toolkit package in the console, right click and choose Update Distribution Points as shown below
Step 16. Set variables and assign connect to network folder users

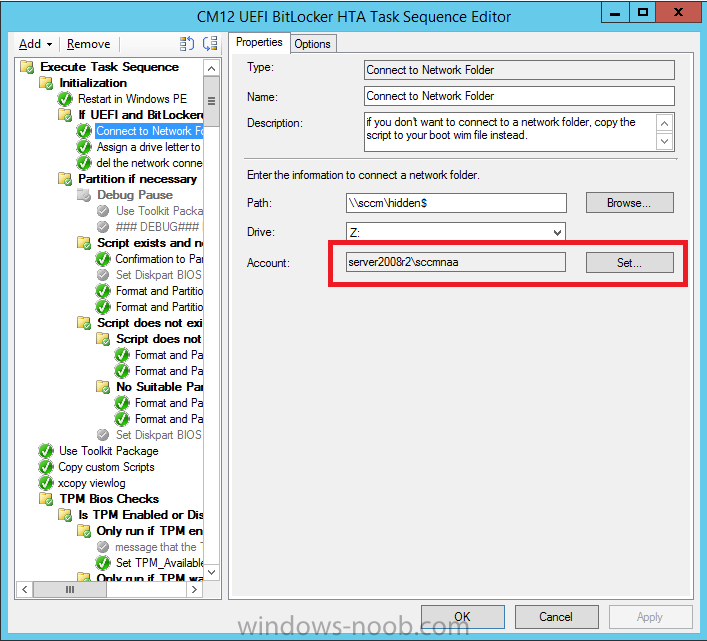

Edit the task sequence and locate the Connect to Network folder steps *there are a few*, change the network account to one that has permission to the share in question

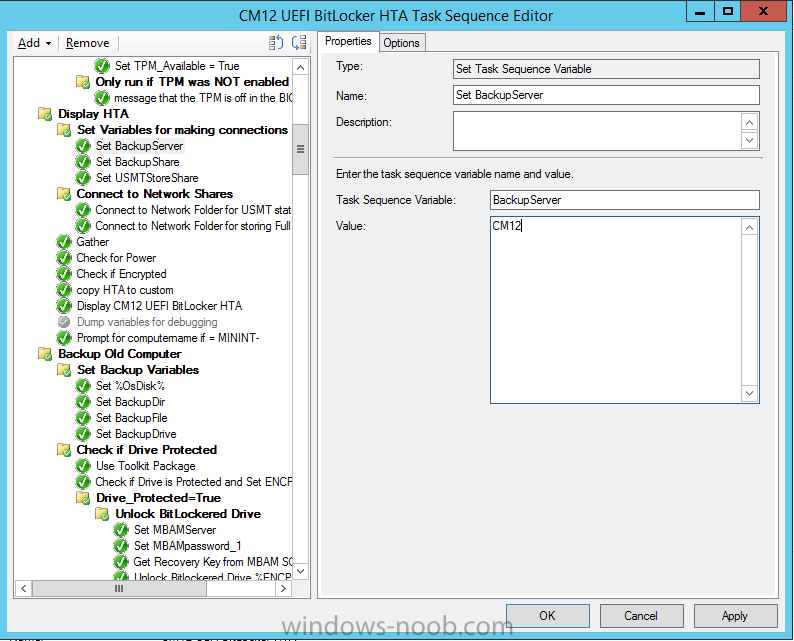

Next change the variable steps to point to server/shares of your making as shown below
Set BackupServer
Set BackupShare
Set USMTStoreShare
like so....
Apply your changes and close the task sequence.
Step 17. Deploy the task sequence

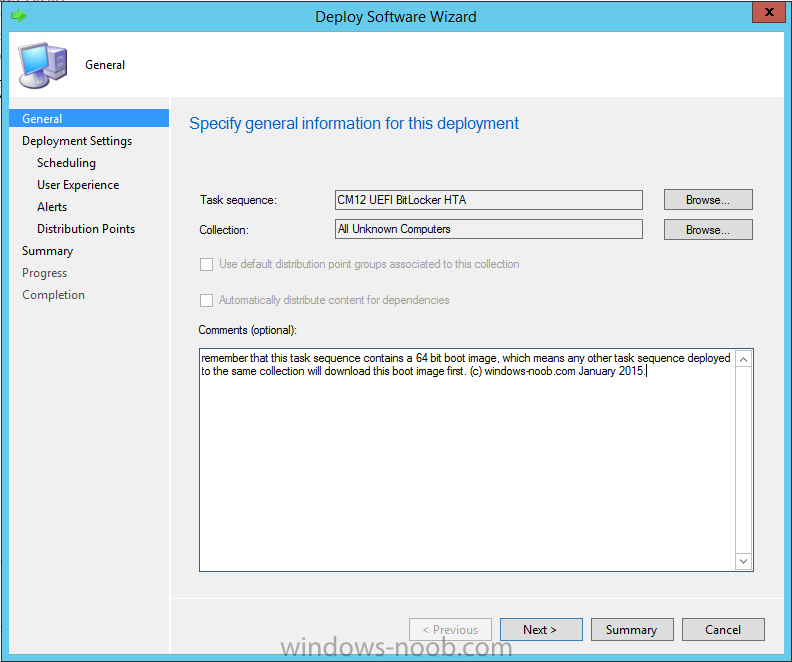

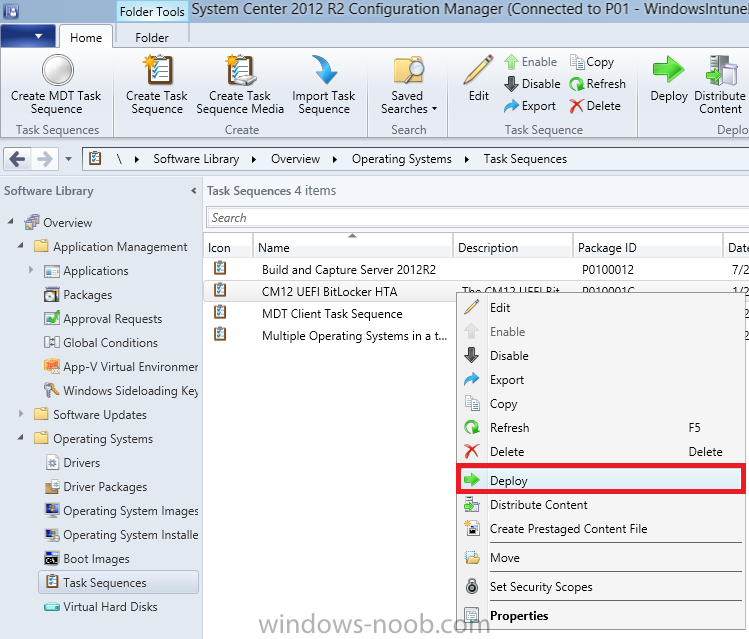

Right click on the CM12 UEFI BitLocker HTA task sequence and choose Deploy as shown below
and select an appropriate collection for example All Unknown Computers

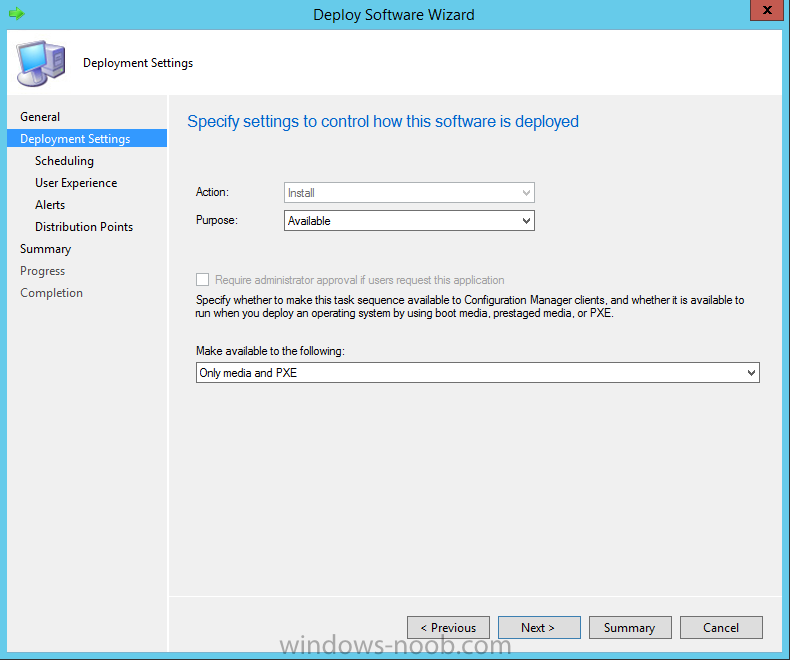

make it Available (optional) and available only to media and PXE as shown below
Tip: you might want to create a UEFI only collection and add known computers to it, then deploy this task sequence again to that collection also.

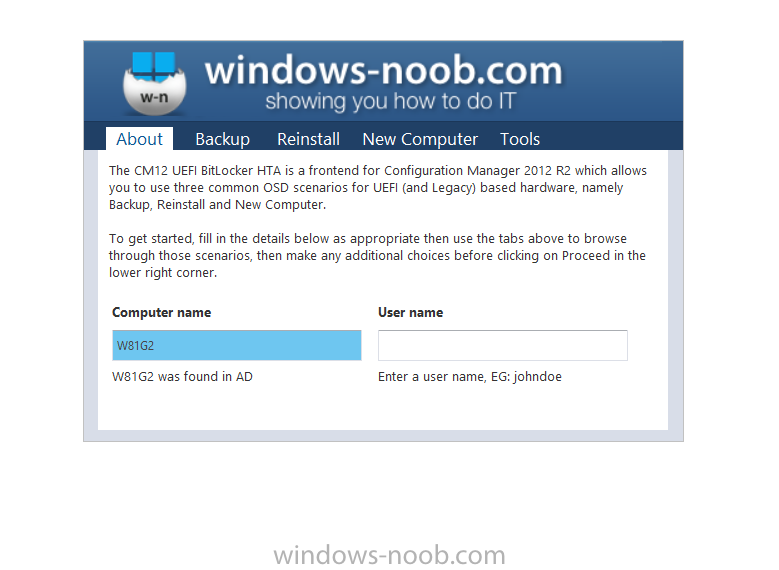

that's it, all that's left to do is to PXE boot a computer and you should see the CM12 UEFI BitLocker FrontEnd HTA in action.
In the part 3, I'll go through troubleshooting common problems with this task sequence, until then, adios !
In this part I've shown you how to set up your environment to work with the CM12 UEFI BitLocker HTA, In part 3, I'll go through troubleshooting common problems with this task sequence, until then, adios !
