PXE Network boot doesnt work! (WDS)

[MichaelAT]

Hello there!



I just tried to configure WDS on Windows Server 2012 R2.



Well, at first, some Informations:

• I have 1 Server where Active Directory, DNS and DHCP is implemented. This Server has the IP 192.168.12.10
• I have 1 Server where only WDS is implemented. This Server has the IP 192.168.12.11
• I have 1 Client which is already prepared with Sysprep. This Client has a DHCP IP 192.168.1.3

What I have done already:

• The WDS has been configured with the option "Integrated with Active Directory"
• On WDS: Boot Image and Capture Images has been created
• Client: Sysprep (Generalize) has been done and the Client has been shutted down
• On DHCP i have configured Option 66 with 192.168.12.11 (WDS) and Option 67 with boot\x64\wdsnbp.com

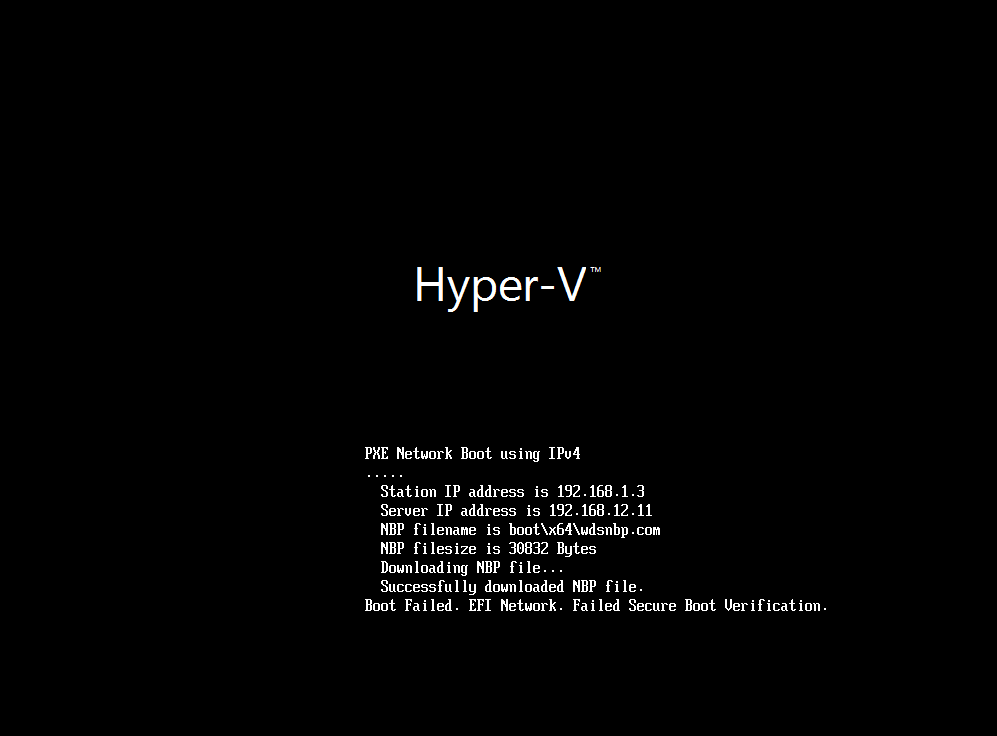

After that, I have changed in the Hyper-V 2012 Settings the Boot Options, to a "Network Boot". Thereafter, I have started the Client again and everything has been downloaded fine, but then at the End, there is a Failure Message, as you can see below:





I dont know, where is the Problem!



Hopefully, there is anybody out there, who can help me as quick as possible??



Cheers,

Michael

[Eswar Koneti]

changing the option from secure boot does work ? http://deploymentresearch.com/Research/Post/441/Fix-for-installing-Windows-Technical-Preview-via-PXE-on-Gen-2-VM

[MichaelAT]

No I have solved the Problem. I've forgot to activate the DHCP Option 60 (PXEClient).



But now I got a failure message from the Windows Boot Manager (192.168.12.11), that the uefi has a problem.



Does anybody know the problem and the regarding solution?
