Sokoban Posted May 27, 2016 Report post Posted May 27, 2016 Hi I running SCCM 1602 and trying to build and capture Windows 10 Enterprise When trying with PXE boot with VMware, I got that error message.. PXE-E55: ProxyDHCP service did not reply to request on port 4011 How can I solved that? I haven't any firewall installed Sokoban Quote Share this post Link to post Share on other sites More sharing options...
0 anyweb Posted May 27, 2016 Report post Posted May 27, 2016 what's in between the distribution point and this vm ? is the boot image deployed to the pxe enabled distribution point ? what does the smspxe.log file reveal ? Quote Share this post Link to post Share on other sites More sharing options...
0 Sokoban Posted May 27, 2016 Report post Posted May 27, 2016 Prioritizing local MP http://SystemManager.xxxx.local. SMSPXE 2016-05-27 14:25:41 4456 (0x1168) 00:0C:29:16:23:63, 76314D56-81E6-CF9C-723B-BB6ECF162363: Not serviced. SMSPXE 2016-05-27 14:25:41 4456 (0x1168) Warning: Matching Processor Architecture Boot Image (0) not found SMSPXE 2016-05-27 14:25:49 4456 (0x1168) Quote Share this post Link to post Share on other sites More sharing options...
0 anyweb Posted May 27, 2016 Report post Posted May 27, 2016 there's your problem Warning: Matching Processor Architecture Boot Image (0) not found SMSPXE 2016-05-27 14:25:49 4456 (0x1168) make sure to distribute (and enable for pxe) both architecture boot wim's Quote Share this post Link to post Share on other sites More sharing options...

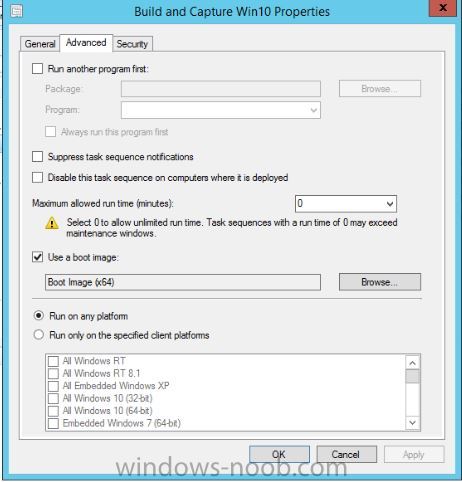

0 Sokoban Posted May 29, 2016 Report post Posted May 29, 2016 Hi DS is enable for PXE and the TS has boot Wim, Sokoban Quote Share this post Link to post Share on other sites More sharing options...

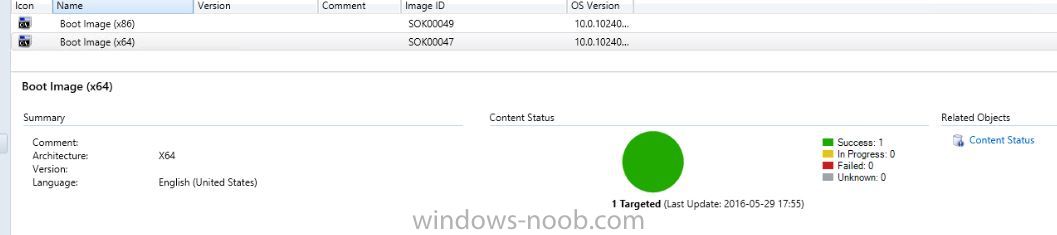

0 anyweb Posted May 29, 2016 Report post Posted May 29, 2016 did you distribute both the x86 and x64 boot images ? Quote Share this post Link to post Share on other sites More sharing options...
0 Sokoban Posted May 30, 2016 Report post Posted May 30, 2016 Hi Yes I have did, Quote Share this post Link to post Share on other sites More sharing options...
0 anyweb Posted May 30, 2016 Report post Posted May 30, 2016 not according to this Warning: Matching Processor Architecture Boot Image (0) not found SMSPXE 2016-05-27 14:25:49 4456 (0x1168) the message means it cannot find a boot image matching the architecture of the machine that is booting, so check again, that you have enabled for PXE both boot images (x86 and x64) and distributed them to your distribution points... Quote Share this post Link to post Share on other sites More sharing options...

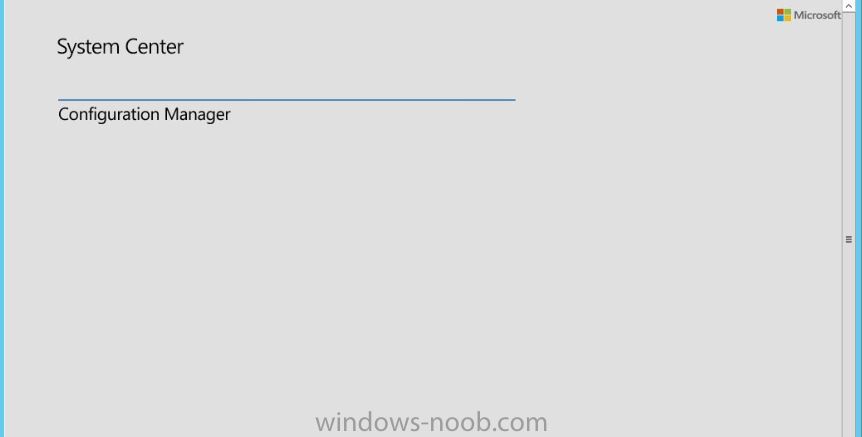

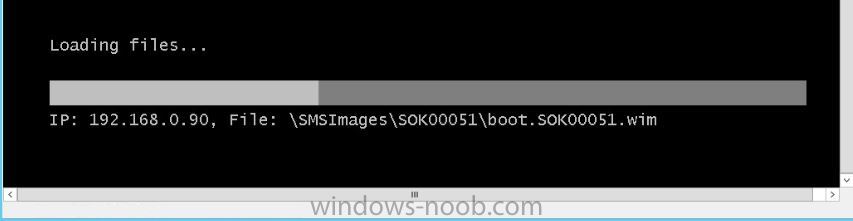

0 Sokoban Posted June 1, 2016 Report post Posted June 1, 2016 Hi Thanks for your response.. It works better now, the problem now is to start will not go further, see below... I have done --> Operating System Images Operating System Upgrades Packages USM Migration Tool for Windows 10 What I have missed, log files ? Sokoban Quote Share this post Link to post Share on other sites More sharing options...
0 anyweb Posted June 1, 2016 Report post Posted June 1, 2016 press f8 when it fails and attach the smsts.log file Quote Share this post Link to post Share on other sites More sharing options...
0 Sokoban Posted June 1, 2016 Report post Posted June 1, 2016 Hi Nothing happen when a press F8 Before the start fails,, Quote Share this post Link to post Share on other sites More sharing options...
Hi
I running SCCM 1602 and trying to build and capture Windows 10 Enterprise
When trying with PXE boot with VMware, I got that error message..
PXE-E55: ProxyDHCP service did not reply to request on port 4011
How can I solved that? I haven't any firewall installed
Sokoban
