SCCM 2012 R2 SP2 OSD Error

[tecnico]

Hello,
I Install Test envirnoment with Windows server 2012 R2 and SCCM 2012 R2 sp2. on VMWare Workstation.
and I flow the following documents to Deploy Windows 10 Image:

https://www.windows-noob.com/forums/topic/11394-how-can-i-deploy-windows-10-enterprise-using-system-center-2012-r2-configuration-manager/and
http://prajwaldesai.com/how-to-deploy-windows-10-enterprise-using-sccm/

and trying to deploy Windows 10 X64 I got PXE Error "PXE Boot Aborted."

I have SCCM VM with DHCP Role, created Option 60,
also I distrubied the Boot Image X64 & X86
I Restart the services of DHCP and WDS.
I made the Task Sequence deployed to the "Unknown Computers" and deployment "Available" to Clients&Media and PXE.
The Network Access Account Configured.
and I have Vmware workstation DHCP disabled.

guess the problem was with Boundaries, I was have only one boundary for Active directory,
I added New one for Subnet and now I can boot using PXE and see the first step of the Task Sequence

But still not working becuse now I got another errors.

First boot I got Error: 0X800705AF : I resolve this error addding some RAM Memory to my guest VM.

Second boot I got Error : 0X80004005 : I resolve this removing Bit Locker and updating the deploy.

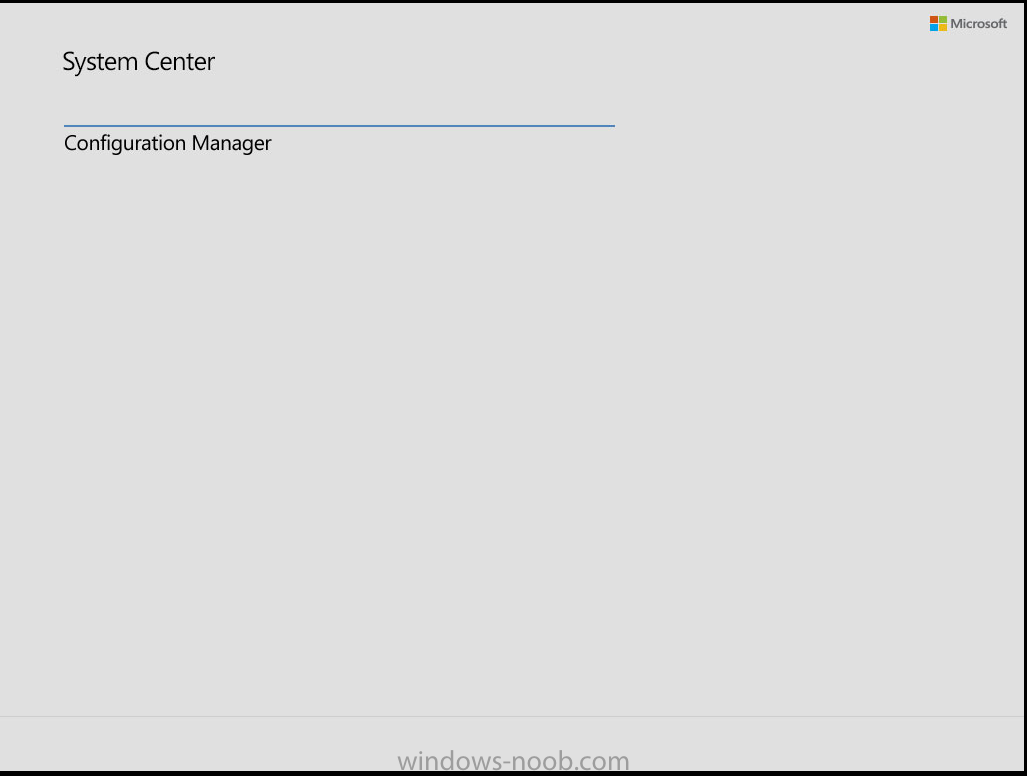

Now I have a new problem that Boot with PXE correctely and it´s load the files and i see the Initializing screen and when its disappear and left me with the only image of System Center grey and then restart.

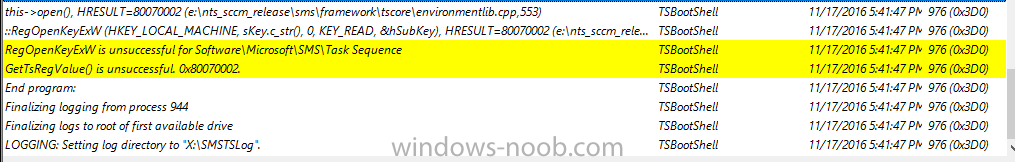

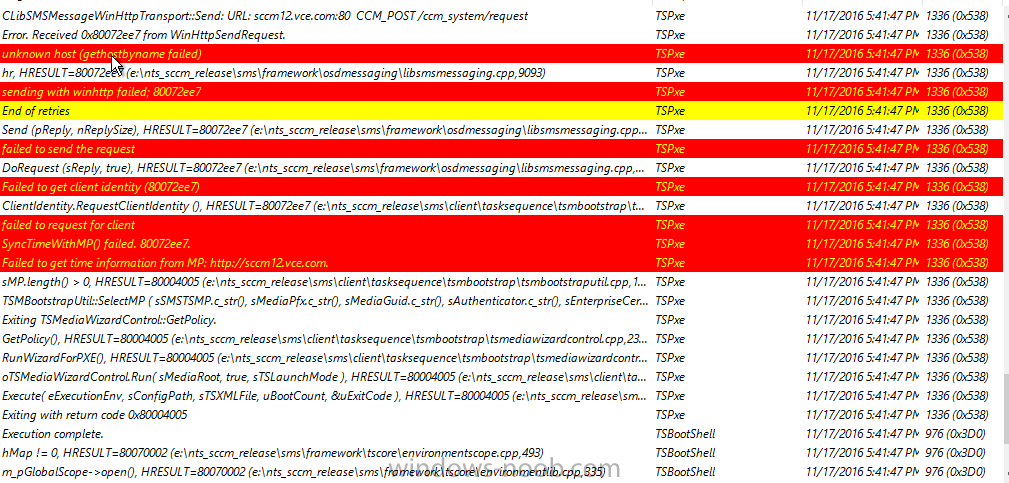

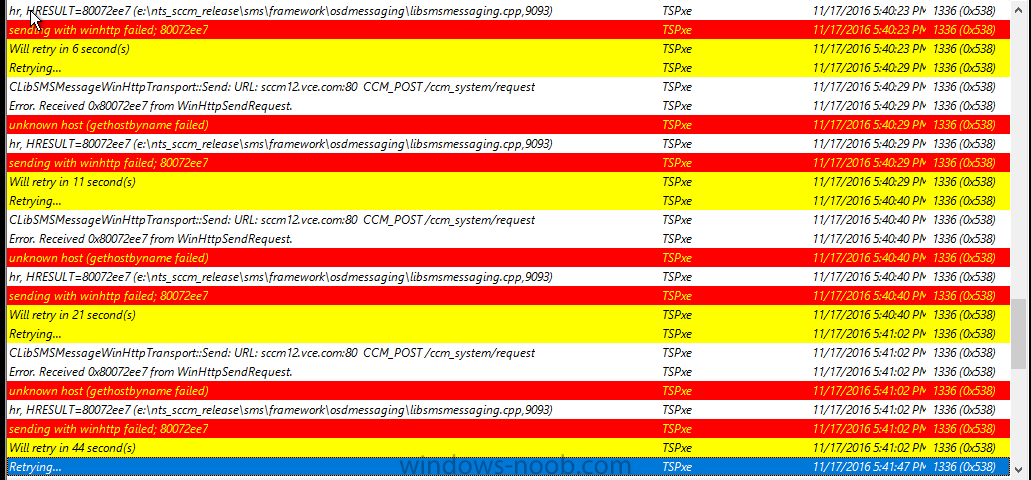

I chcked the SMSTS.Log on the vm, and I got this errors you can see one the images I attache.

I re-entred the user for Network access agian (I used the same account for client push)

and I tried agian but still not working.I got the same log errors and warning agian as above.

Any suggestions ?

Thanks in advanced.

Edited November 17, 2016 by tecnico

[simulacra75]

What NIC type is your VMware host using? If it's using VMXNET then you should change this to E1000. Furthermore, i have never been able to successfully PXE boot a VMware to install Windows 10 unless the Windows 10 host was set to do an EFI boot, not BIOS.

[tecnico]

Hi,

I resolve it, With just adding DNS Server Option 006 to DHCP Server, I was forget about, now I can boot and Install windows 10 without problemas,

I´m Just using Vmworkstation for test. before work in producction, but speaking about Vmware we are planning to install SCCM in Virtual Server on Vm Exsi,

It´s the first time I do so any recommendation to care about ? also the DHCP in production in other server.



Regards

[tecnico]

If I install SCCM 2012 R2 on VM on Vmware Esxi using VMXNET The clients will not be able to boot with PXE? we only will use it to distrubute OS to Desktop & Labtops Clients No to VM Machines? Do I have to use E1000 on the vm hosting sccm?
