SCCM OSD

[serj]

Hello,

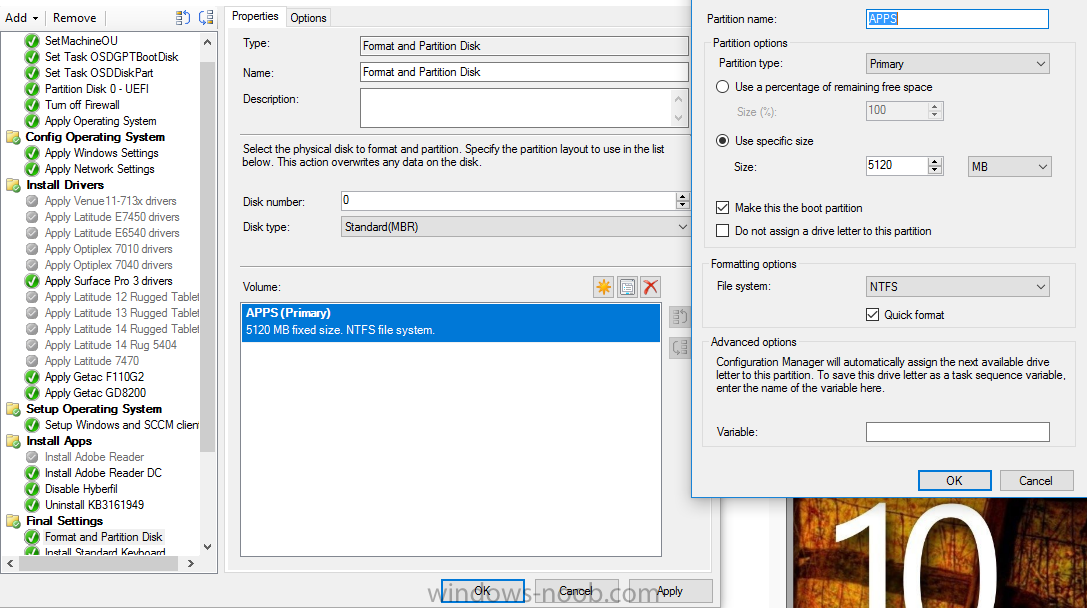

I am trying to add OSD task to create a partition (D Drive 5GB) on Win10 and no luck. I have partition Disk 0 -UEFI and once OS is installed I have a task to Format and partition Disk. Anyone had a better luck creating one?



Thanks

[tale]

By doing that "Format and Partition Disk" after everything, it's saying to delete the whole disk again and create just a single 5GB partition. A solution would be to have a script to automate DiskPart.



You'd have a batch script "DiskPart.bat"

@ECHO OFF
diskpart /s "%~dp0Diskpart5GB.txt"

And then the actual disk part layout would be a file named "Diskpart5GB.txt"

SELECT VOLUME D
ASSIGN LETTER=E
SELECT DISK 0
SELECT PARTITION 4
SHRINK DESIRED=5120
CREATE PARTITION PRIMARY
FORMAT FS=NTFS LABEL="APPS" QUICK
ASSIGN LETTER=D
EXIT

The first 2 lines would be to change an attached DVD-ROM Drive to the letter E so D would then be free to use for the partition. If the computers do not have any DVD-Roms that can just be removed

The partition number on line 4 could differ depending on how the partition layout is setup but that should be it.

[serj]

Thanks for the quick reply. I tested and it works.
