MECM 2006 +MDT +PXE Boot

By bigbro.pro, in System Center Configuration Manager (Current Branch)

Recommended Posts

bigbro.pro Newbie

bigbro.pro

Posted
Posted

Hello. two weeks i can't beat the problem of loading MDT via MECM.

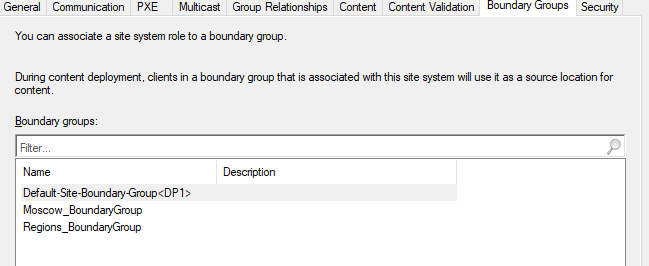

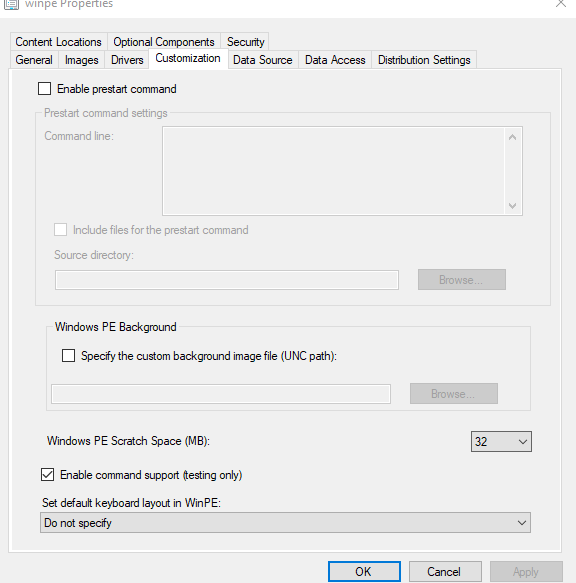

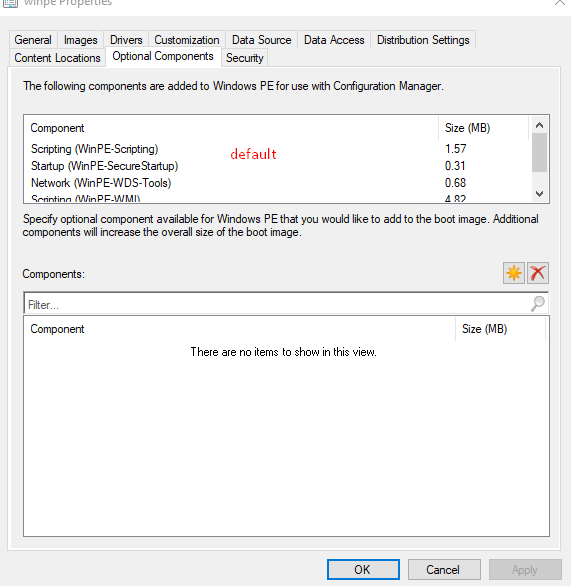

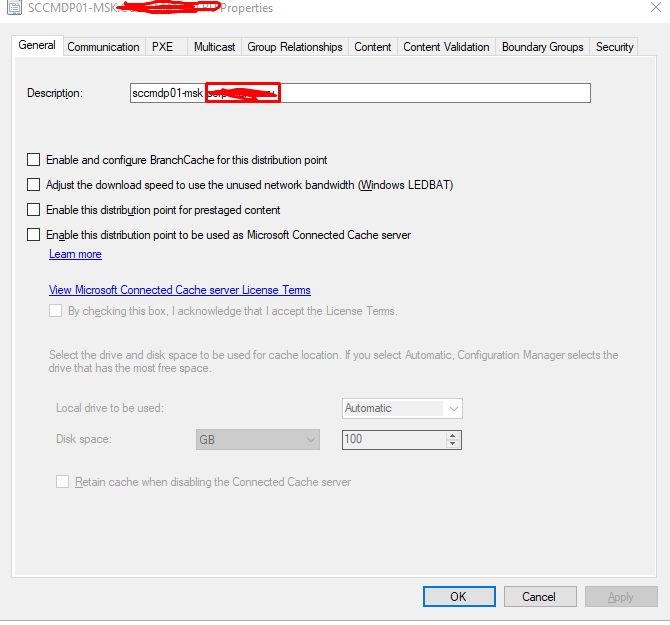

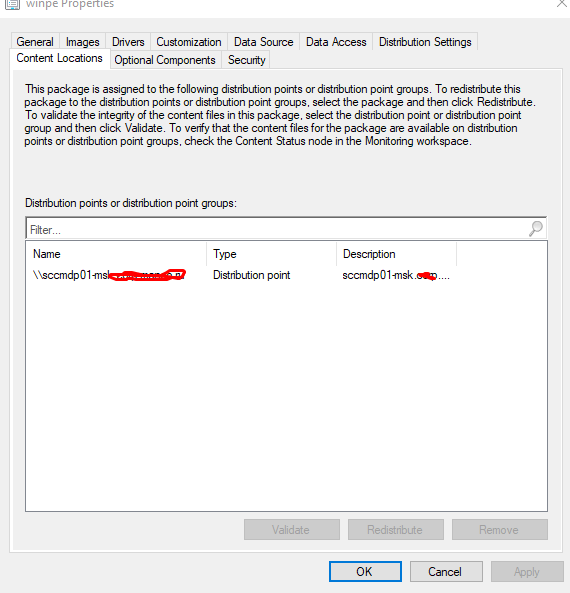

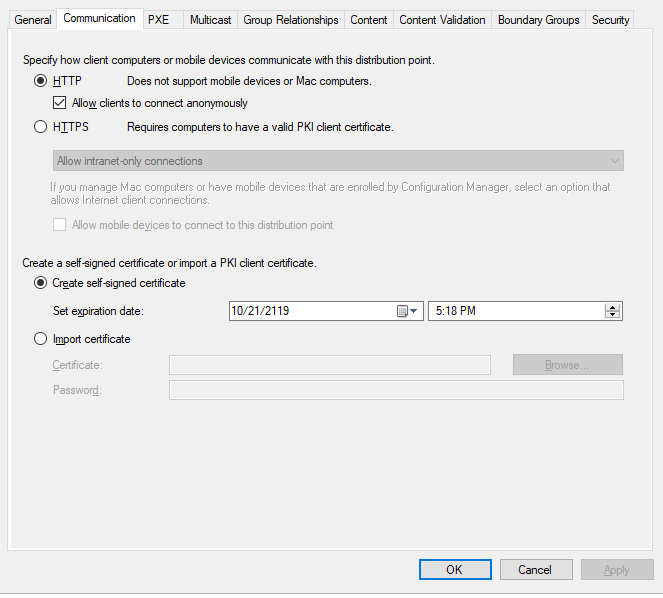

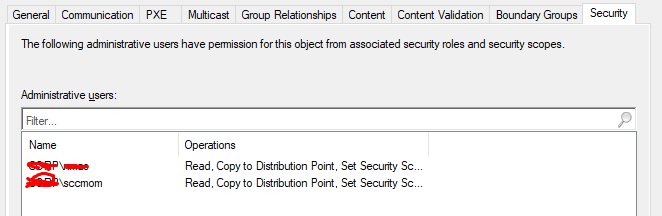

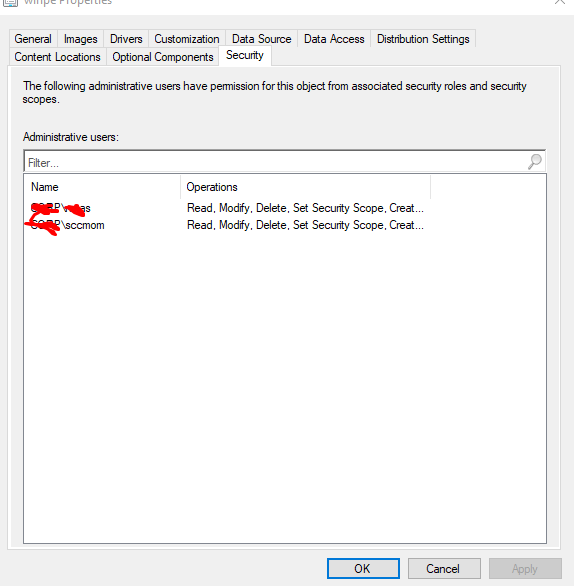

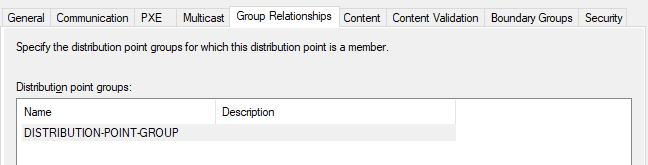

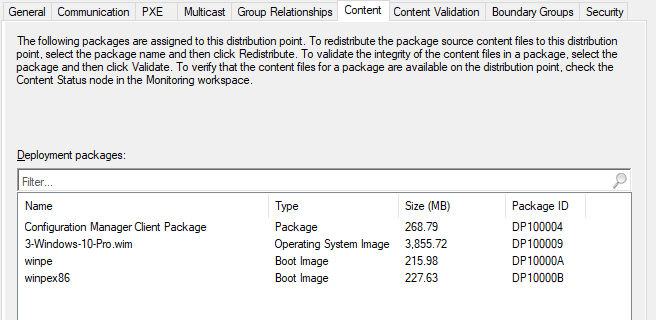

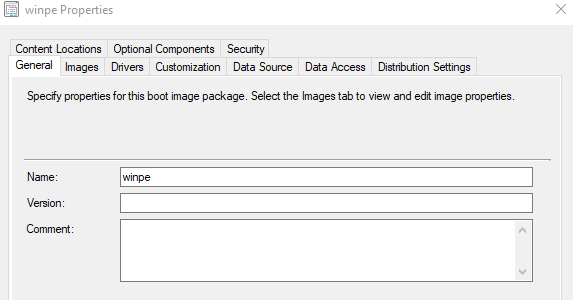

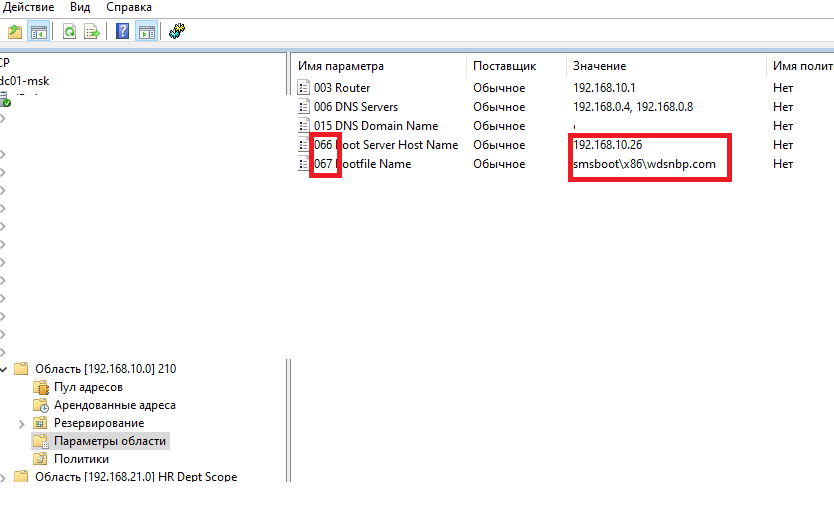

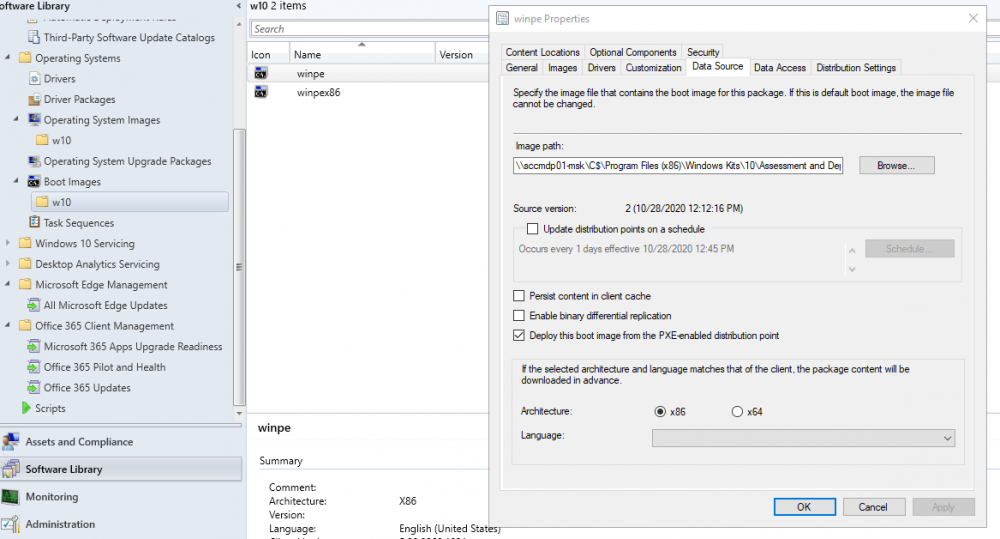

My configure in screenshot:

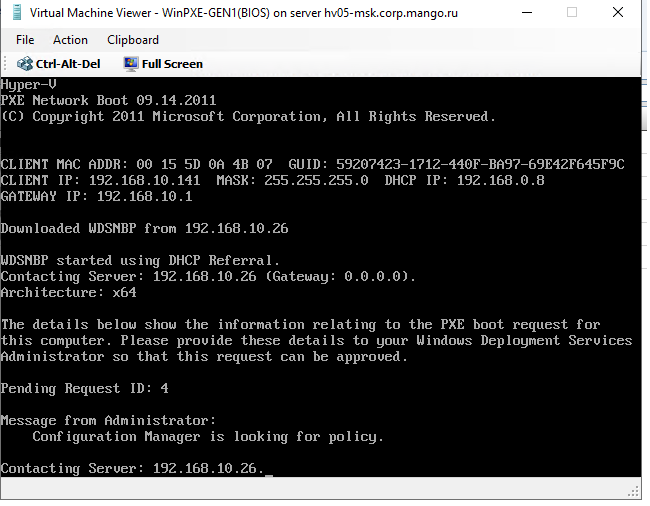

for two weeks now i can't get this to work. After receiving the message that you see in the VM picture.
Log from SMSPXE.log.

according to this manual:

I do not have an MDT task creation (Step 7.)

WDS and MDT are located on the same server as mecm. I have a basic configuration. those. just installation and that's it.



============> Received from client:   SMSPXE               10/28/2020 1:09:34 PM               19264 (0x4B40)

Operation: BootRequest (1)  Addr type: 1 Addr Len: 6 Hop Count: 0 ID: 074B0A5E

Sec Since Boot: 65535 Client IP: 192.168.010.141 Your IP: 000.000.000.000 Server IP: 000.000.000.000 Relay Agent IP: 000.000.000.000

Addr: 00:15:5d:0a:4b:07:

Magic Cookie: 63538263

Options:

  Type=53 Msg Type: 3=Request

  Type=60 ClassId: PXEClient

  Type=97 UUID: 002374205912170f44ba9769e42f645f9c

  Type=93 Client Arch: Intel x86PC

  Type=55 Param Request List: 03013c8081828384858687            SMSPXE               10/28/2020 1:09:34 PM               19264 (0x4B40)

Prioritizing local MP http://sccmdp01-msk.corp.corp.ru. SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)

Not in SSL.          SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)

Not in SSL.          SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)

Client lookup reply: <ClientIDReply><Identification Unknown="0" DuplicateSMBIOS="0" DuplicateMACAddress="0" ItemKey="0" ServerName=""><Machine><ClientID/><NetbiosName/></Machine></Identification></ClientIDReply>

                SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)

00:15:5D:0A:4B:07, 59207423-1712-440F-BA97-69E42F645F9C: Device is not in the database.  SMSPXE                10/28/2020 1:09:34 PM               20964 (0x51E4)

Prioritizing local MP http://sccmdp01-msk.corp.corp.ru. SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)

Not in SSL.          SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)

Not in SSL.          SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)

============> REQUEST Reply to client ([192.168.010.141:68]) Len:348             SMSPXE               10/28/2020 1:09:34 PM         20964 (0x51E4)

Operation: BootReply (2)  Addr type: 1 Addr Len: 6 Hop Count: 0 ID: 074B0A5E

Sec Since Boot: 65535 Client IP: 192.168.010.141 Your IP: 000.000.000.000 Server IP: 192.168.010.026 Relay Agent IP: 000.000.000.000

Addr: 00:15:5d:0a:4b:07:

BootFile: smsboot\x86\wdsnbp.com

Magic Cookie: 63538263

Options:

  Type=53 Msg Type: 5=Ask

  Type=54 Svr id: 192.168.010.026

  Type=97 UUID: 002374205912170f44ba9769e42f645f9c

  Type=60 ClassId: PXEClient

  Type=250 02010105040000000503020014040200ba062c436f6e66696775726174696f6e204d616e61676572206973206c6f6f6b696e6720666f7220706f6c6963792e0b0101                SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)

<============ REQUEST Reply (end)   SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)

============> Received from client:   SMSPXE               10/28/2020 1:09:34 PM               19264 (0x4B40)

Operation: BootRequest (1)  Addr type: 1 Addr Len: 6 Hop Count: 0 ID: 074B0A5E

Sec Since Boot: 0 Client IP: 192.168.010.141 Your IP: 000.000.000.000 Server IP: 000.000.000.000 Relay Agent IP: 000.000.000.000

Addr: 00:15:5d:0a:4b:07:

Magic Cookie: 63538263

Options:

  Type=53 Msg Type: 3=Request

  Type=60 ClassId: PXEClient

  Type=97 UUID: 002374205912170f44ba9769e42f645f9c

  Type=93 Client Arch: Intel x86PC

  Type=250 0d0208000e010101020006050400000005ff

  Type=55 Param Request List: 03013c8081828384858687            SMSPXE               10/28/2020 1:09:34 PM               19264 (0x4B40)

Getting boot action for unknown machine: item key: 2046820353             SMSPXE               10/28/2020 1:09:34 PM                20964 (0x51E4)

Prioritizing local MP http://sccmdp01-msk.corp.corp.ru. SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)

Not in SSL.          SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)

Request using architecture 9.     SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)

Not in SSL.          SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)

Client boot action reply: <ClientIDReply><Identification Unknown="0" DuplicateSMBIOS="0" DuplicateMACAddress="0" ItemKey="2046820353" ServerName=""><Machine><ClientID/><NetbiosName/></Machine></Identification><PXEBootAction LastPXEAdvertisementID="" LastPXEAdvertisementTime="" OfferID="" OfferIDTime="" PkgID="" PackageVersion="" PackagePath="" BootImageID="" Mandatory=""/></ClientIDReply>

                SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)

Request retry.  SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)

Not in SSL.          SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)

Client boot action reply: <ClientIDReply><Identification Unknown="0" DuplicateSMBIOS="0" DuplicateMACAddress="0" ItemKey="2046820353" ServerName=""><Machine><ClientID/><NetbiosName/></Machine></Identification><PXEBootAction LastPXEAdvertisementID="" LastPXEAdvertisementTime="" OfferID="" OfferIDTime="" PkgID="" PackageVersion="" PackagePath="" BootImageID="" Mandatory=""/></ClientIDReply>

                SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)

00:15:5D:0A:4B:07, 59207423-1712-440F-BA97-69E42F645F9C: no advertisements found          SMSPXE                10/28/2020 1:09:34 PM               20964 (0x51E4)

Prioritizing local MP http://sccmdp01-msk.corp.corp.ru. SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)

Not in SSL.          SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)

Not in SSL.          SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)

============> REQUEST Reply to client ([192.168.010.141:68]) Len:280             SMSPXE               10/28/2020 1:09:34 PM         20964 (0x51E4)

Operation: BootReply (2)  Addr type: 1 Addr Len: 6 Hop Count: 0 ID: 074B0A5E

Sec Since Boot: 0 Client IP: 192.168.010.141 Your IP: 000.000.000.000 Server IP: 192.168.010.026 Relay Agent IP: 000.000.000.000

Addr: 00:15:5d:0a:4b:07:

BootFile: smsboot\x64\abortpxe.com

Magic Cookie: 63538263

Options:

  Type=53 Msg Type: 5=Ask

  Type=54 Svr id: 192.168.010.026

  Type=97 UUID: 002374205912170f44ba9769e42f645f9c

  Type=60 ClassId: PXEClient       SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)

<============ REQUEST Reply (end)   SMSPXE               10/28/2020 1:09:34 PM               20964 (0x51E4)


























Share this post

Link to post
Share on other sites
bigbro.pro Newbie

bigbro.pro

Posted
Posted (edited)

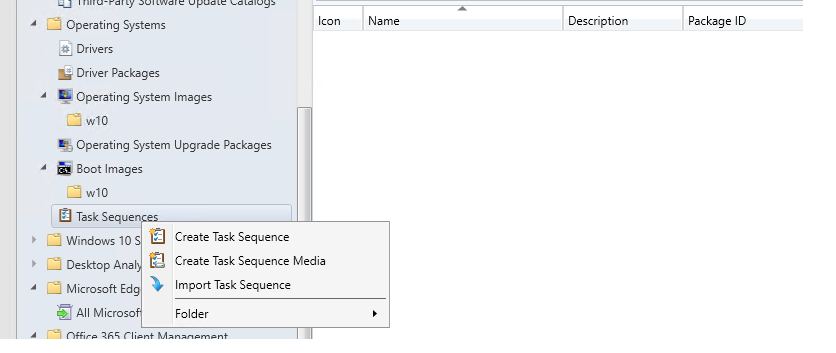

if you're talking about "Task Sequence", then I don't have paragraph "Create MDT Task Sequence". look at the penultimate picture. so I didn't create any tasks.

I have a separate MDT server, it works. OS can be installed.

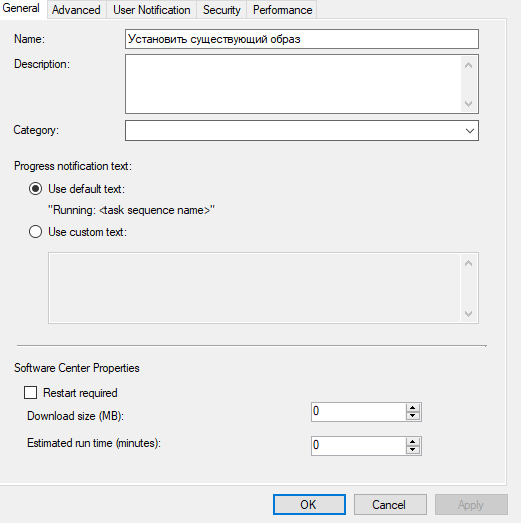

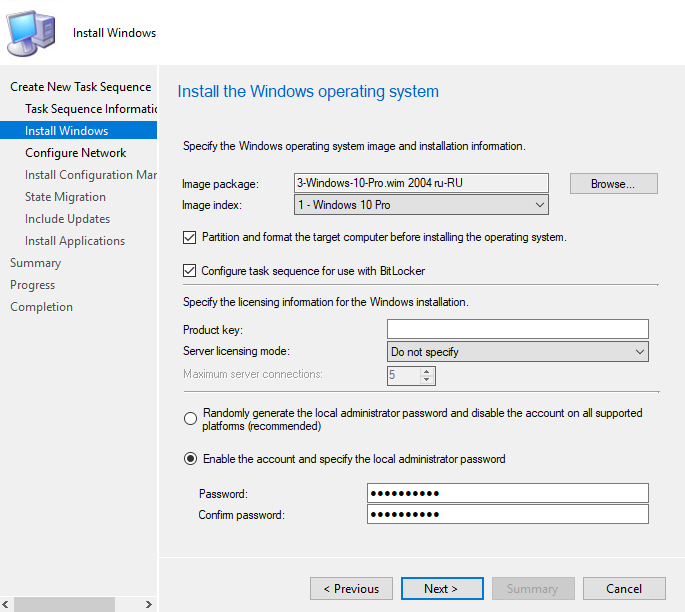

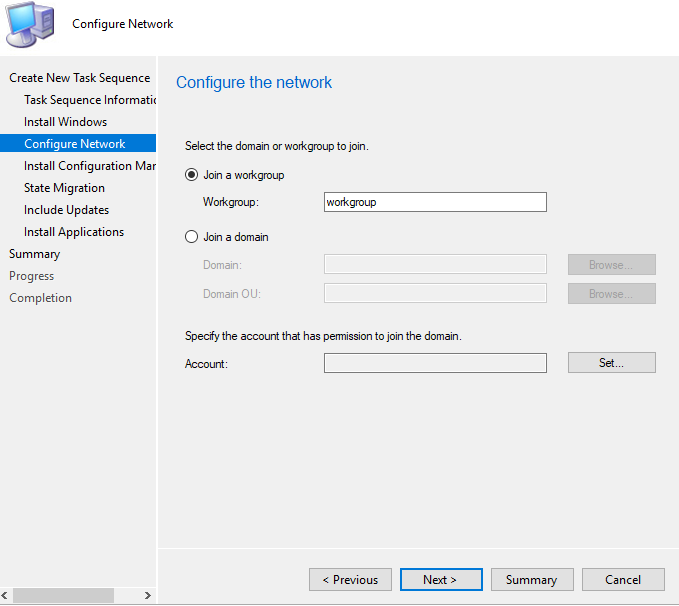

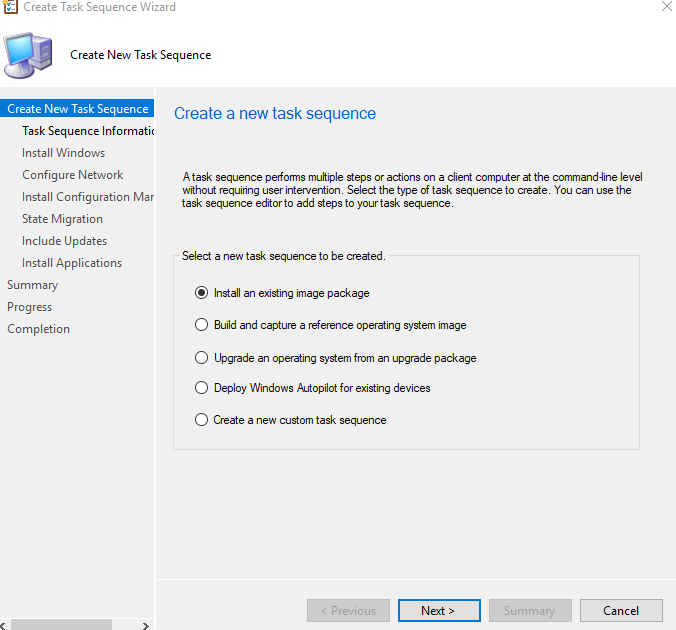

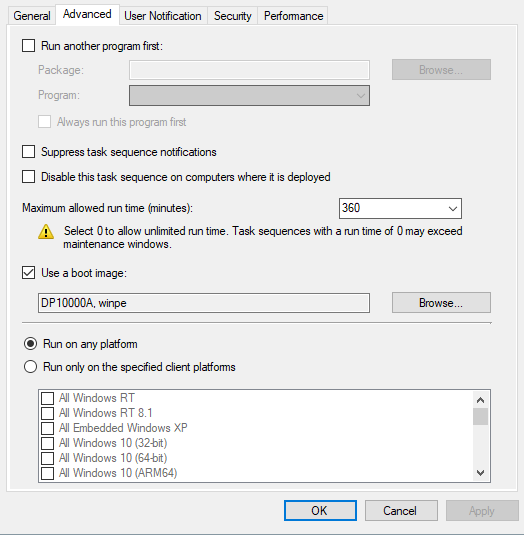

I created an unusual image installation task

the result is unfortunately the same. - like the last picture in the last post













Edited by bigbro.pro

Share this post

Link to post
Share on other sites
anyweb Proficient

anyweb

Posted
Posted

it's only necessary to deploy to the Unknown computers collection if those are your target, for example, in a New Computer type of scenario, if however you want to deploy to existing (known) computers then you can do so to via whatever collections they are members of.

Share this post

Link to post
Share on other sites
