Windows image not being pulled from nearest DP but from SCCM server (slow)

[baldurfour]

Hello,

I'm trying to set up a DP locally. De boot image is being dragged from the DP since i monitor the network traffic with resmon and goes up when it's loading, however the windows image it's being pulled from the Server (It's also a DP) I've been doing my investigation and everything seems correct:

DP:



If I try to disable the SCCM DP, the task sequence will return an error since it can't find the package "Configuration Manager Client Package"... The rest of the packages are on the DP that i need to be in but the image will always  pull it from the server...

Any help?

Thaks in advance.

[anyweb]

what does your smsts.log file tell you, it should explain why it's pulling content from each dp...

[baldurfour]

6 minutes ago, anyweb said:

what does your smsts.log file tell you, it should explain why it's pulling content from each dp...

I've overwritten so many times the machine I don't have it anymore. I will make a new deployment and try to find it. No way to find this on the server right?

Thank you.

[GarthMJ]

What exactly are you using for Boundaries? I hope it is IP Ranges ONLY.

[baldurfour]

16 hours ago, GarthMJ said:

What exactly are you using for Boundaries? I hope it is IP Ranges ONLY.



19 hours ago, anyweb said:

what does your smsts.log file tell you, it should explain why it's pulling content from each dp...

The thing is that If i distribute other Image on the same server, that image appears with no issues on my DP:



But the other package that is a carbon copy when it comes to the configuration and Distribution settings and same steps and all... it doesn't appear... The log files from the server don't show any kind of error... :S

[GarthMJ]

So are you only using IP Ranges? Have you reviewed the logs as to where the content is pulled from and to ensure that the content is distributed to the DP?

[baldurfour]

21 minutes ago, GarthMJ said:

So are you only using IP Ranges? Have you reviewed the logs as to where the content is pulled from and to ensure that the content is distributed to the DP?

Yep i got it working you were right on the boundaries issue but there were two thing actually:

My comments:

After the changes done today we can finally see the image being applied to the Virtual Machine correctly:

2 major changes done:

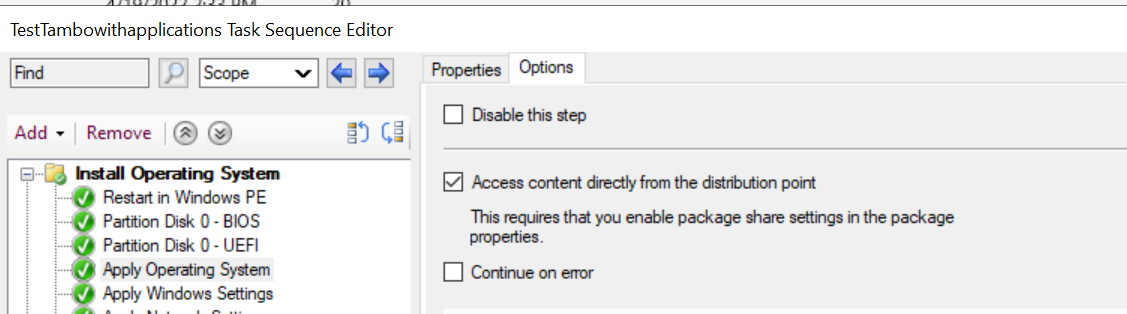

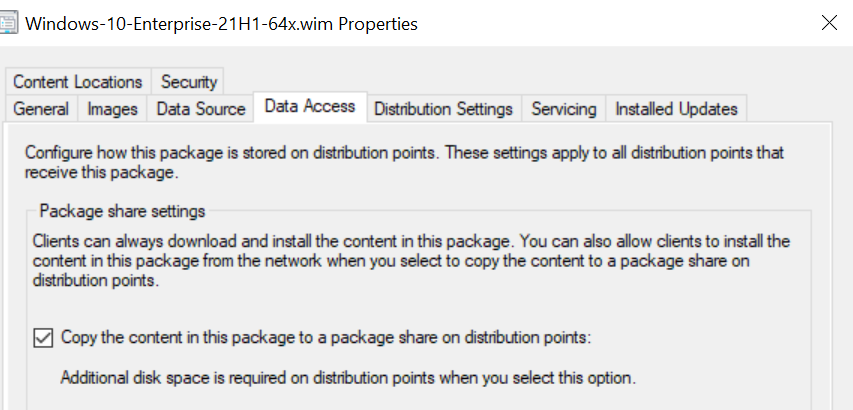

FIle side (for the wim file to be pulled from the DP in Madrid):

It seems that by deleting a flag on the DP it forces the package to be downloaded, not sure though i have to test that theory on the future:

The packages are transferred temporarily to C:\SMS_DP$

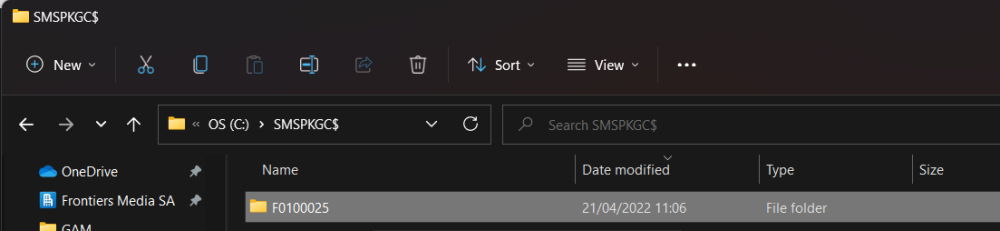

Then are moved to C:\SMSPKGC$ when finished

The flag removed today was: "C:\SCCMContentLib\PkgLib\F0100038.INI"

With these steps the image got downloaded to C:\SMSPKGC\F0100038

Distribution point boundaries:

By changing the boundaries from default to the ones that were already created for Lausanne Madrid etc the DP started casting the file instead of letting the SCCM server do it which was really slow. Now the image has been downloaded in less than 15 minutes, before was more than one hour.

Thank you very much for putting me on the right direction, I hope this helps someone on the future as well.

Have a good week.
