Workgroup Computers not able to get MDM_Config from Secondary Management Point

[akay0402]

Hi All,

I have a primary site and a secondary site in my SCCM architecture, I have setup a secondary site server from scratch (Built a brand new Win2019 machine, Installed required roles, setup Secondary site with SQL Express)

After the setup I had noticed that the clients are not able to receive the MDM_Config

I had looked at the CCMMessaging.log and in the PolicyAgent.log and I'm getting 0x8000000A errors

Clients are workgroup computers, below are the list of troubleshooting steps taken,

1. Uninstalled and reinstalled MP role on the secondary site system server
2. Checked to see the AppPools have "Enable 32-bit applications set to FALSE"
3. Checked on ccm_system have Anonymous Authentication Enabled
4. Setup a brand new server with same name and IP and have rebuilt the server with all roles
5. Checked IUSR permissions for CCM/Incoming Folder
6. Checked CCM/Incoming folder and it's not empty
7. Reinstalled the client on Client Machine
8. Rebuilt WMI on client machine
9. Checked and confirmed http://Secondary.FQDN/sms_mp/.sms_aut?mplist and http://Secondary.FQDN/sms_mp/.sms_aut?mpcert are accessible
10. Checked Boundary and they're pointing to the right site system server
11. Changed it to primary and they get the config



These are the error messages from different logs

CCMMessaging.log (Client)

Raising event: instance of CCM_CcmHttp_Status {ClientID= "GUID:xxxx-xxxx-xxxx-xxxx-xxxx-xxxx";DateTime="20230803003230.426000+000";Hostname="Secondary.FQDN";HRESULT="0x0000000";ProcessID=4432;StatusCode=0;ThreadID=33572;};

No reply message from Server. Server may be temporarily down or a transient network error.

Post to http://Secondary.FQDN/ccm_system/request failed with 0x8000000A

PolicyAgent.log (Client)

Requesting Machine policy assignments from authority SMS:ABC

[Assignment Request] Assignments request for Machine HOSTNAME completed with status 0x8000000A

Reached max retries count 3. WIll retry at the next polling cycle.

IIS Logs (secondary site system server)

<SecondaryServerIP> CCM_POST /ccm_system/request - 80 - <Client IP> ccmhttp - 500 0 0 28

Other workgroup computers are also getting the same error

MPControl.log (secondary site system server)

Call to HttpSendRequestSync failed for port 80 with status code 401, text:Unauthorized

Please note that there are "Call to HttpSendRequestSync succeeded for port 80 with status code 200, text:OK" but there is one error every 1 hour or so

MPFDM.log (secondary site system server)

No errors

Any help would be greatly appreciated

Thanks,

Ace.

[anyweb]

did you APPROVE the workgroup computers ? more info here in Step 4. >



[akay0402]

I'm set to "Automatically approve all computers" under Client approval in Hierarchy settings

[anyweb]

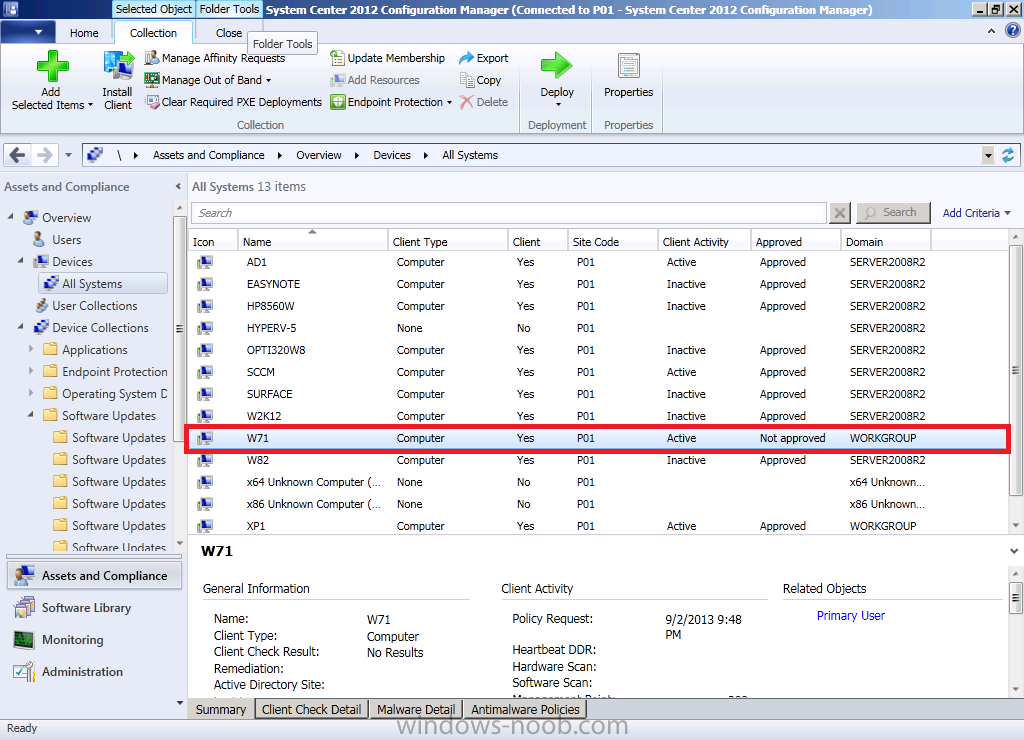

ok... can you please double check that the device is approved (or not) using the Approved column as shown below...



[akay0402]

It is approved.

[anyweb]

to rule out your workgroup computers being part of the problem, have you tried joining a computer to the domain and seeing if it works when using that Secondary site ?

[akay0402]

I have tried that too to no avail unfortunately

[anyweb]

ok, what version of SCCM is this ?

[akay0402]

It is version 2207

[akay0402]

Managed to figure out what was wrong, the SQL database was the cause, it turned out to be a problem with the spn.

The spn was registered with service account and I was getting SSPI error

Reset the SPNs and set the SQL startup account to Local System and it had worked
