using SCCM 2012 in a LAB - Part 7. Build and Capture Windows 7 X64

[walsallf]

Hi,



First of all I'd like to say this is a great guide.



Secondly, I need help as I am getting the exact same error as amvsnorc, namely:





I have been stuck on this for the past few days now and ready to pull my hair out. I've tried recreating the task sequence, the client package, etc. I've tried re-deploying. I've tried stop/starting the WDS service, DHCP service, the server itself, but I still keep getting the same error.



Please can somebody help!!

[anyweb]

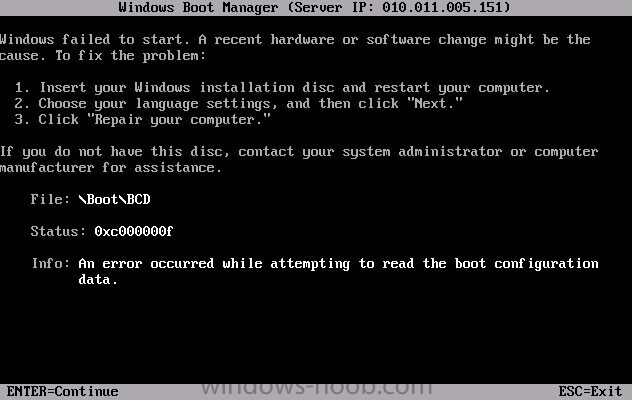

this error usually means it's already passed the PXE section and has got as far as trying to boot from the hard disc but cannot as there aren't any boot files on the disc yet...

so reboot and verify if you are indeed seeing any PXE related messages, if so what do they say

[walsallf]

So, basically, I'm getting exactly the same as emvsnorc, (except for the IP Address) before the page above, i.e.:



[walsallf]

Any ideas on the above Niall?

[anyweb]

is the WDS service started ? is the server running WDS on the same subnet as your client ?

[gvlaarho]

Hello all, i recived this error 0×80070091 During USMT of windows 7 X64 (SCCM 2012 RC)

After research, this is a known issue with x64 and this info should be added in "SCCM 2012 RC Part 8 - Deploying Windows 7 x64"

Just after the step Capture User Files and Settings, add a step "Run Command Line' with as commandd: cmd /c REG Unload HKLM\$DEST$Software

Information taken from http://sccm.haas.se/?p=272

Your stap by step documentation is really wonderful ! thanks

[walsallf]

Yes, WDS is started and it is located on the same server as the Primary Site. I must mention that I also have a CAS, where I am carrying out most of the configuration work and using the Primary as the DP.

[walsallf]

Is it anything to do with where it say's "TFTP Download: boot\x64\pxeboot.n12", where the screen in your guide shows "TFTP Download: smsboot\x64\pxeboot.com"?

[mbrunt]

Hi,



I'm running SCCM 2012 RTM. Going well so far apart from this big that I cannot seem to solve. I've followed all steps in part 7 of this guide and this is what I get....

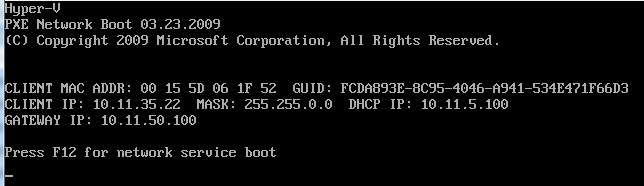

So I press F12, but then I get this...





My DHCP server is on a different server than my SCCM server, these are both on the same subnet. My client is on a seperate subnet to the servers. I've had PXE boot working fine using standard WDS with MDT, but just can't get this working... heres my DHCP options...





Any help would be great!!!



Thanks

[volk1234]

Hi Niall!

As promice i post my questions here:



1. Can you properly tell how distribute Windows Updates in work environment with SCCM 2012? Not deploy to captured image, but administering it same simle as i can do it with WSUS? What about Drivers, Tools, other updates from WSUS categories???



2. In your LAB you use Build and Capture scenario, but in work environment i have to make some changes on Windows (change settings, interface, install programs, put shortcuts). In MDT i can use Sysprep and Capture scenario. When i wrote this post i found pinned topik about this http://www.windows-noob.com/forums/index.php?/topic/5070-how-can-i-capture-an-image-using-capture-media-in-configmgr-2012/

but then i have other question: what profit from using SCCM to capture image, if i can't do this with PXE boot? I can do bootble ISO myself and use ImageX whitout SCCM....



3. In my work environment suddenly in users Software Center appeared as update 'Build and Capture Windows 2008 Server' (i forgot to check option Do not show in Software Center) and when user choose 'Install All', his notebook disk was formated. How it could be, user do not know password for PXE boot ?



Sorry my English.

Thank for you understanding!
