using SCCM 2012 RC in a LAB - Part 8. Deploying Windows 7 X64

[harut]

Hi,

I'm new in SCCM. I'm using SCCM 2012 R2. I have tried deploy Windows 7.

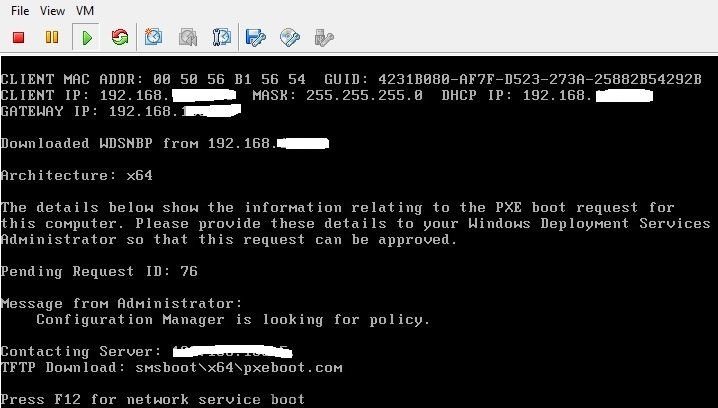

My virtual machine (WMvare) was PXE booted:

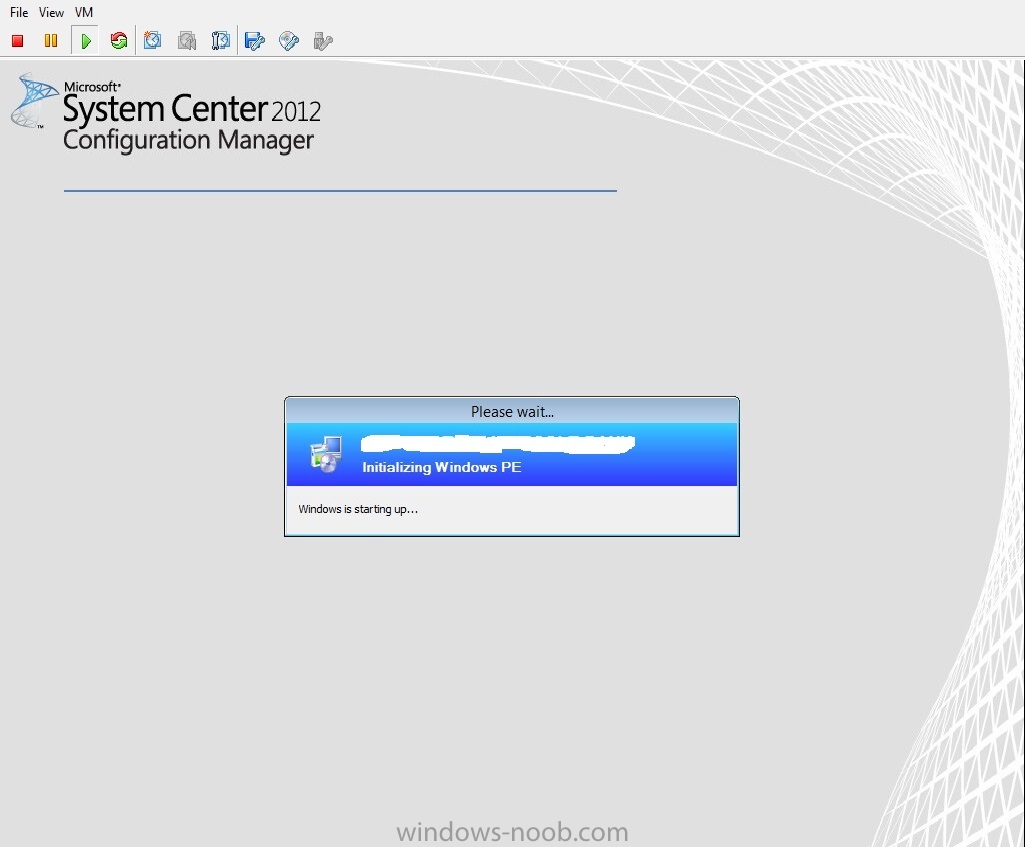

Then shows Initializing Windows PE :

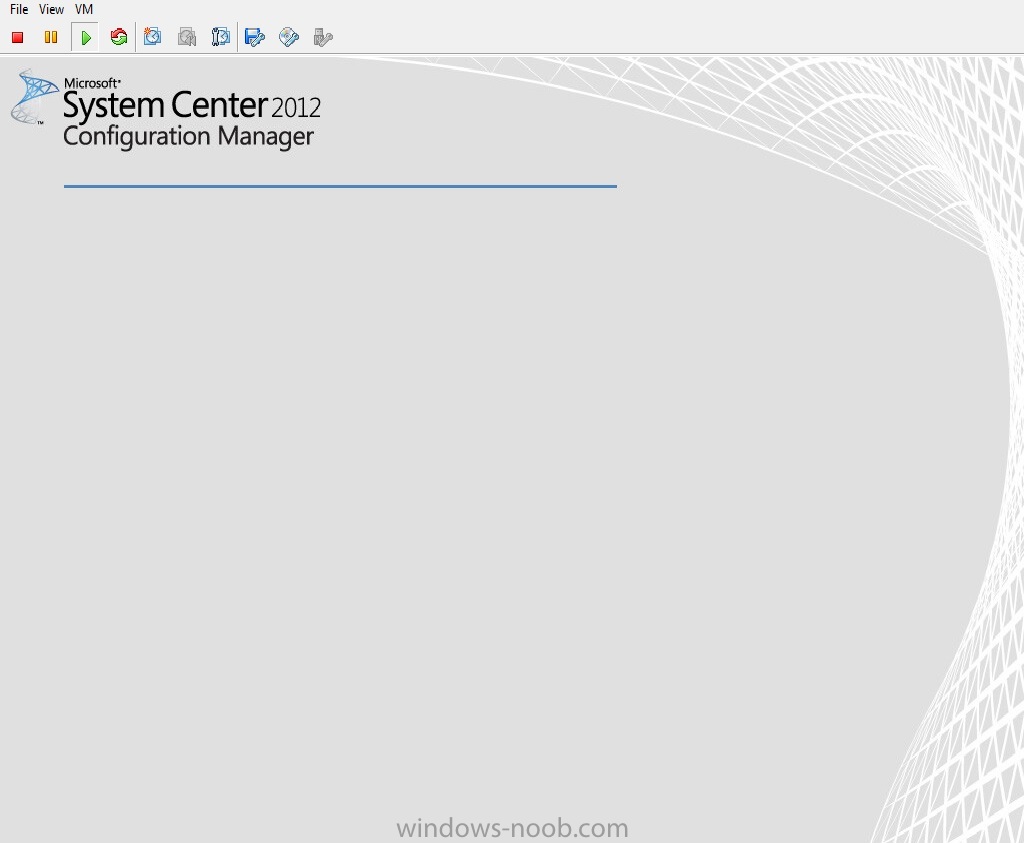

After that shows blank:

Then restarted. After that I'm again F12 and this process is repeating.

What to check ?

Thanks

[anyweb]

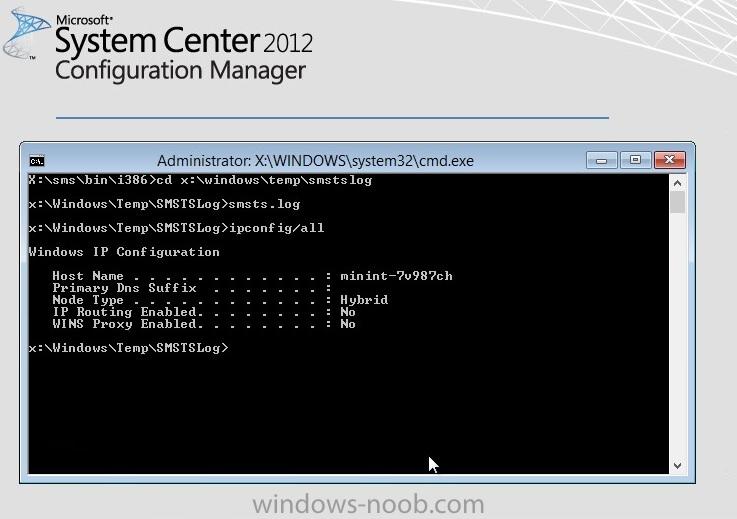

press f8 before it reboots and see if you have a valid ip address, also read the smsts.log in x:\windows\temp\smstslog



it'll reveal the problem

[harut]













[harut]

Hi Anyweb,



My previous problem was VMware Virtual machine network adapter. It must be E1000.

Now Task Sequence asks for password, after that at "Apply Operating System" Task Sequence has failed with the error code (0x80004005).

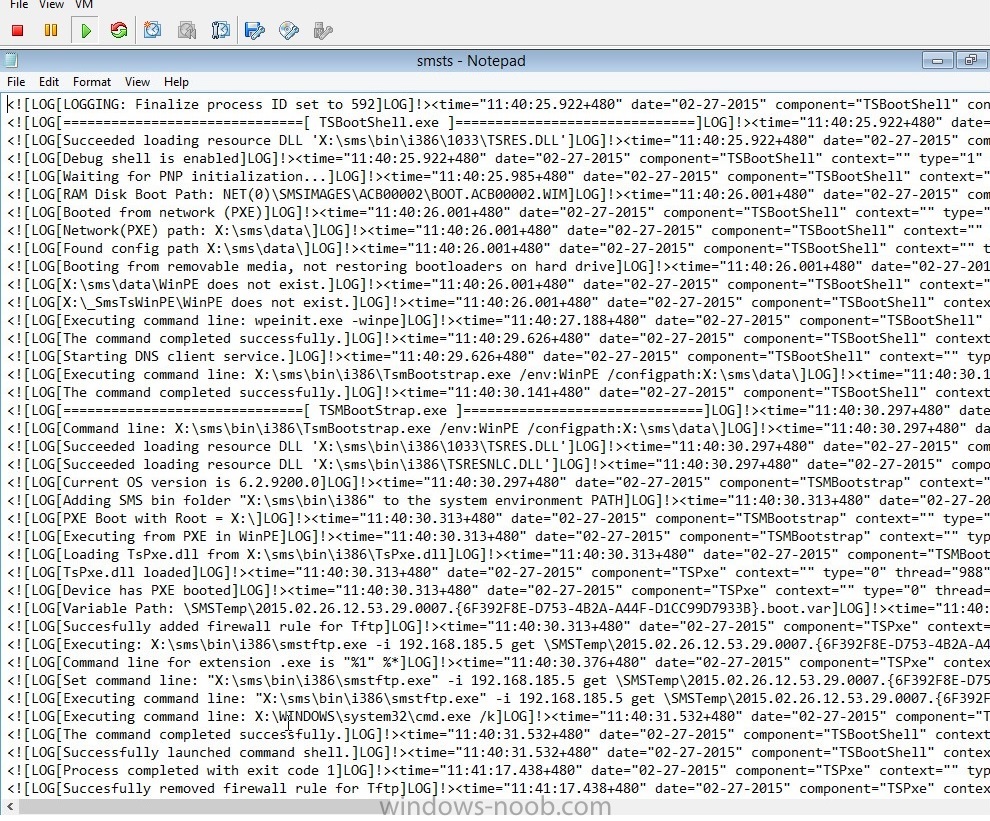

In smsts.log:

The execution of the group (Install Operating System) has failed and the execution has been aborted. An action failed.Operation aborted (Error: 80004004; Source: Windows)

Failed to run the last action: Apply Operating System. Execution of task sequence failed.Unspecified error (Error: 80004005; Source: Windows)



Shared folder with OS is accessible for defined admin user.



What to check else ?

[Andrews]

hi ,



i got the same error code 0x80004005 , i am using sccm 2012 sp1 and i want to migrate an OS from XP > 7 . So my client is Windows XP SP3.





thks for your reply

[ashb]

Hello,

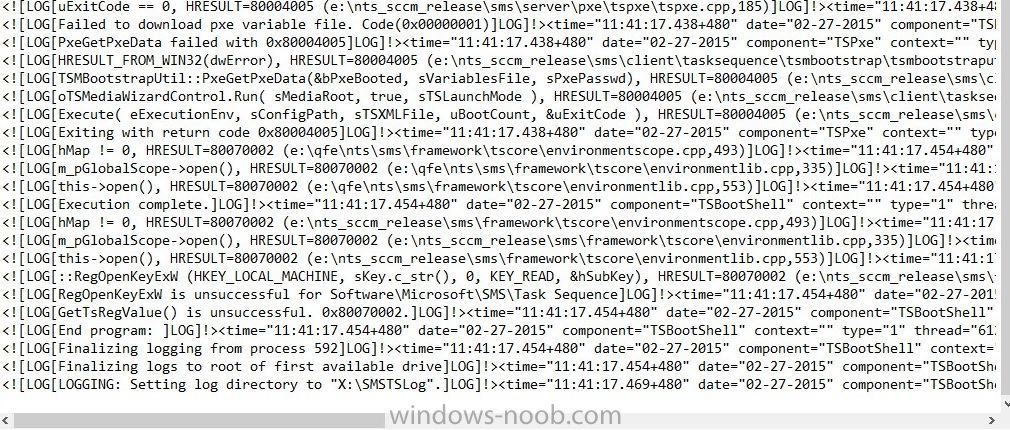

Thanks for the awesome article. I am new to SCCM. We have newly built SCCM environment. I have installed agents on all the machine and they are communicating fine. We had MDT solution before under which we had several wim images ready to go. I am following your article step by step but not getting anywhere. First when i try to pxe boot my test machine I am getting "TFTP Download: smsboot\x64\abortpxe.com" "PXE Boot Aborted. Booting to next device". When i go to check my smspxe log, it is not even updating. It is stuck on red screenshot attached.



I have tried removing pxe and wds role, rebooted and re-added the roles, still not luck. I am stuck on this for a week now. Please assist. Thanks

[Dhruw]

Please help me......



While I am creating Task Sequence,

Install the windows operating system step, there are no image packages present after i click on browse.

It doesn't show any os image under Root folder..







osd error.rtf
