0x800700A1 task in SCCM

[paskual]

Came a new motheboard ASUS P8H61-M LX2 problem with installing XP with SCCM. After formatting the drive get an error 0x800700A. Many thanks in advance

smsts.log

[Jorgen Nilsson]

Hi,

have you included any new SATA driver for the new model?

Regards,

Jörgen

[paskual]

Hard disk in the IDE mode



of drivers on the manufacturer's website



http://support.asus.com/download.aspx?SLanguage=en&p=1&s=39&m=P8H61-M+LX2+R2.0&os=&hashedid=n%2fa





Disk created from this Task Sequence Media installation is....

[Jorgen Nilsson]

Hi,

If you enable F8 prompt and use it to partition and format the disk before you start the task sequence, does that help?

Regards,

Jörgen

[paskual]

F8 --> diskpart --> select disk 0 --> clean





Tried to put on an already created and format. did not help.





If you set the ACHI mode, the drive is formatted and the image is copied, but then you have to put the IDE mode to deploy the OS. It's like a workaround.



Sorry for my english

[Mikey C]

I recommend perservearing and getting to grips with AHCI in XP, once you understand it is not too bad to get working, and much better than switching BIOS modes.



Basically, once the AHCI drivers are in SCCM, its just a question of selecting the correct one in the APPLY DRIVE PACKAGE step. In order to use the driver in that step, you must import the AHCI drivers from a folder with a TXTSETUP.OEM file, otherwise i dont think you can use it.

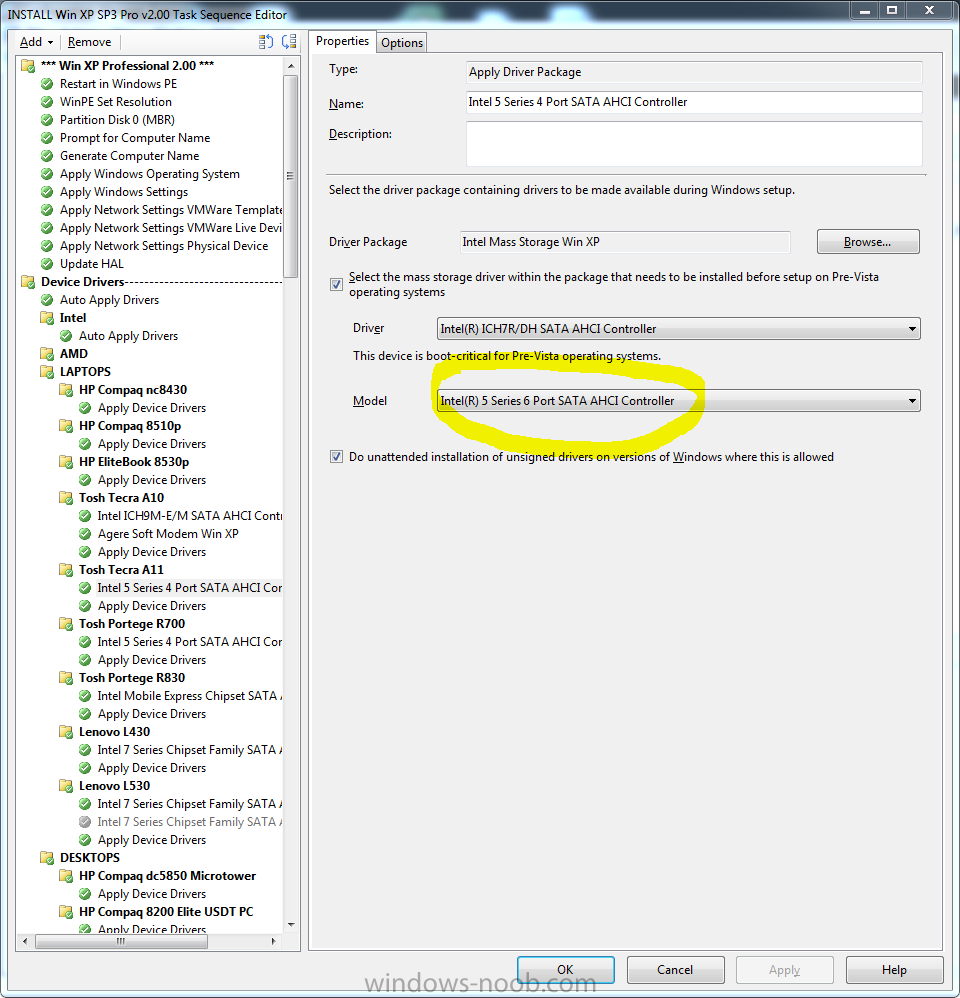

Also, in the screen shot below, to the best of my knoweledge, it always ends up being a trial and error in choosing the Model of controller (highlighted in the pic below). Once you get the right one, it will not blue screen! Job done - watch XP fly with modern hardware!
