The Reporting Services functions within System Center Operations Manager require the IIS role and specific IIS role services in order to function, so we will install them now.
Log on to the server with an account with Local Administrative permissions.
IE: log on as a user that is a member of the OpsMgrAdmins Security Group in AD.

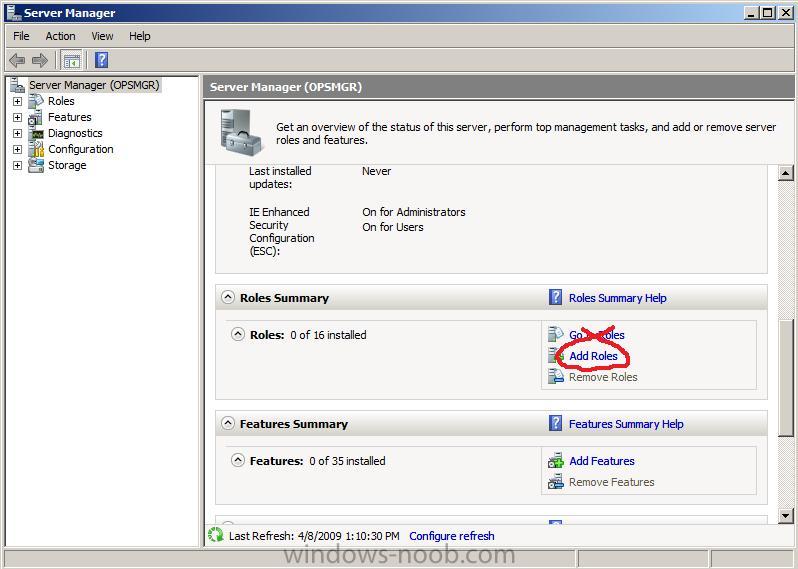

Start Server Manager, Click Roles and Add Roles
On the Before You Begin page, click Next,

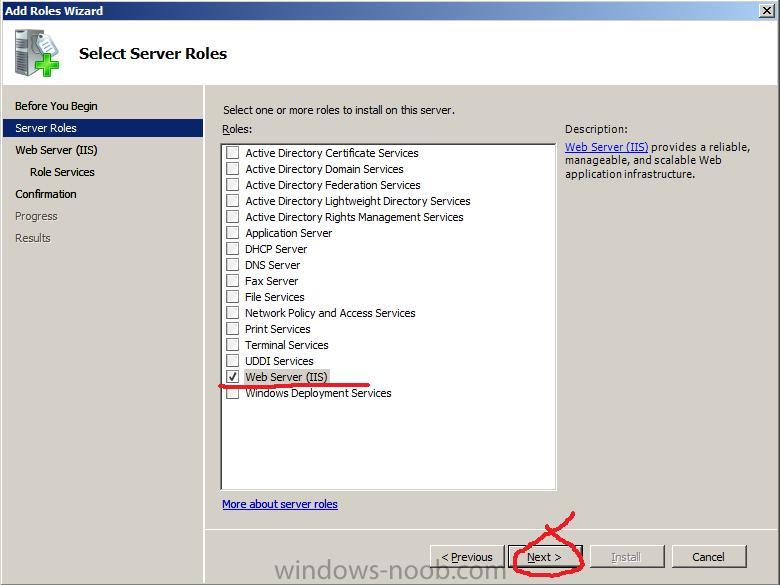

On the Select Server Roles page, check Web Server (IIS),
in the Add features required for Web Server (IIS)? page that pops up, click Add required features and click Next
On the Select Server roles page verify Web Server (IIS) is selected and click Next

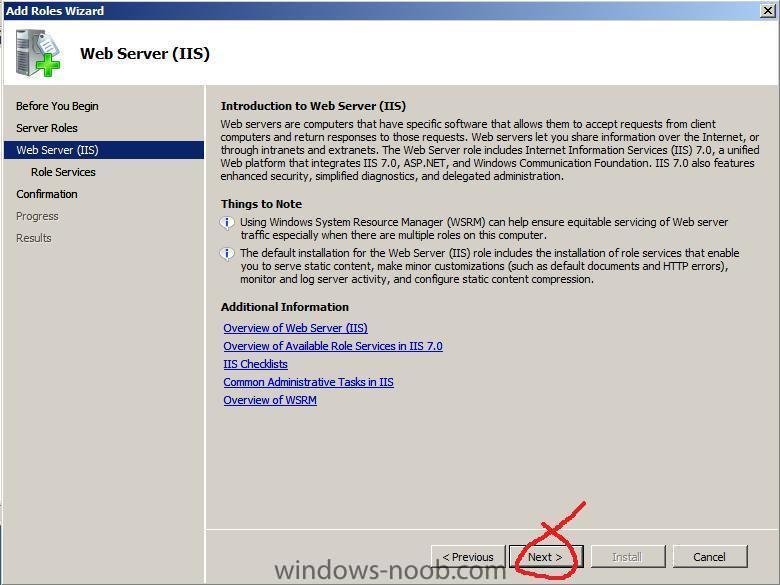

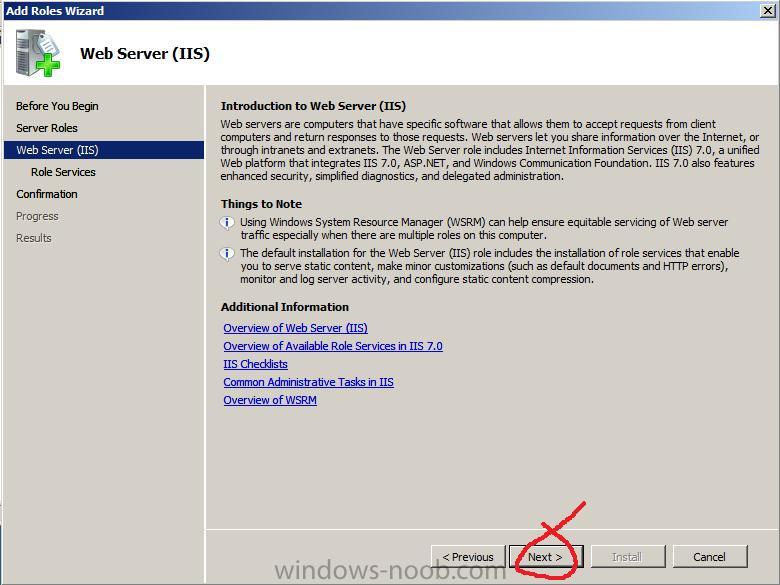

On the Introduction to IIS page click Next
On the Select Role Services page, check the following roles, then click Next
Web Server
Common HTTP Features
Static Content Installed
Default Document Installed
Directory Browsing Installed
HTTP Errors Installed
HTTP redirection Installed
Application Development
ASP.NET, Installed (add the required features when prompted)
.NET Extensibility Installed
ASP Not Installed
CGI Not Installed
ISAPI Extensions Installed
ISAPI Filters Installed
Server Side Includes Not Installed
Health And Diagnostics
HTTP Logging Not Installed
Logging Tools Not Installed
Request Monitor Not Installed
Tracing Not Installed
Custom Logging Not Installed
ODBC Logging Not Installed
Security
Basic Authentication Not Installed
Windows Authentication Installed
Digest Authentication Not Installed
Client Certificate Mapping Authentication Not Installed
IIS Client Certificate Mapping Authentication Not Installed
URL Authorization Not Installed
Request Filtering Installed
IP and Domain Restrictions Not Installed
Performance
Static Content Compression Not Installed
Dynamic Content Compression Not Installed
Management Tools
IIS Management Console Installed
IIS Management Scripts and Tools Not Installed
Management Service Not Installed
IIS 6 Management Compatibility
IIS 6 Metabase Compatability Installed
IIS 6 WMI Compatability Installed
IIS 6 Scripting Tools Installed
IIS 6 Management Console Installed
FTP Publishing Service
FTP Server Not Installed
FTP Management Console Not Installed

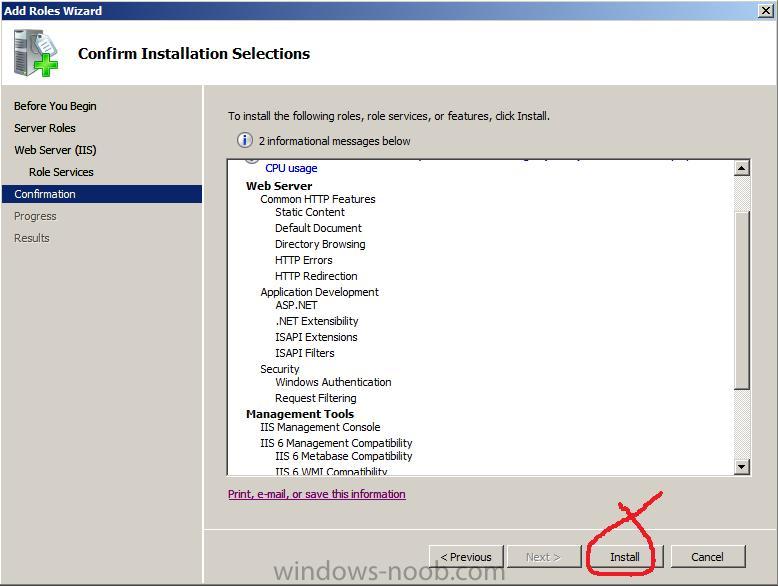

On the Confirm Installation Selections page, click Install

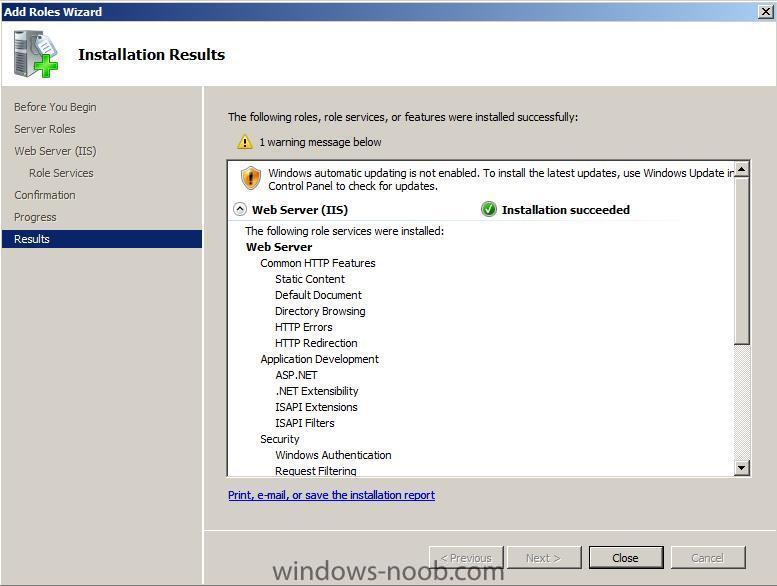

On the Installation Results page, click Close
Click Start, Run and type Services.msc, click OK
Verify that the World Wide Web Publishing Service is started and that the startup mode is set to Automatic, if not, configure it to automatic and start it.
We have placed cookies on your device to help make this website better. You can adjust your cookie settings, otherwise we'll assume you're okay to continue.
Step 1. Add IIS and required role services
The Reporting Services functions within System Center Operations Manager require the IIS role and specific IIS role services in order to function, so we will install them now.
Log on to the server with an account with Local Administrative permissions.
IE: log on as a user that is a member of the OpsMgrAdmins Security Group in AD.

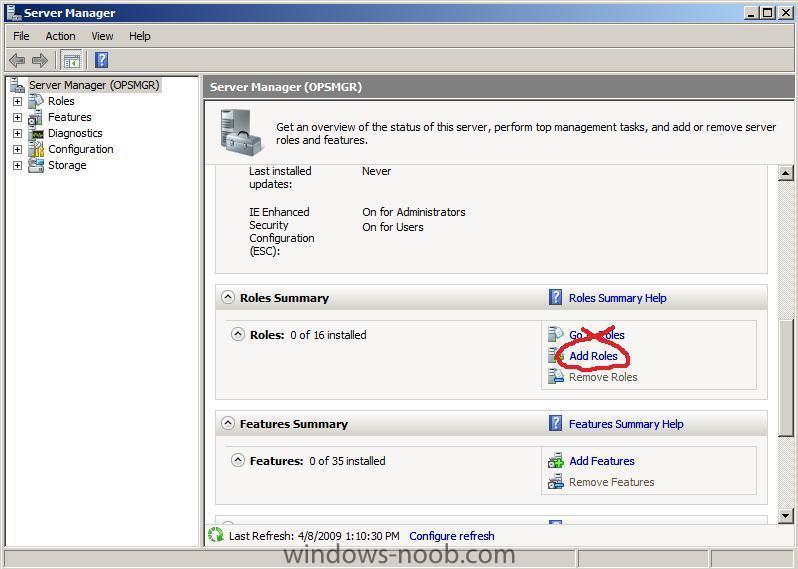

Start Server Manager, Click Roles and Add Roles

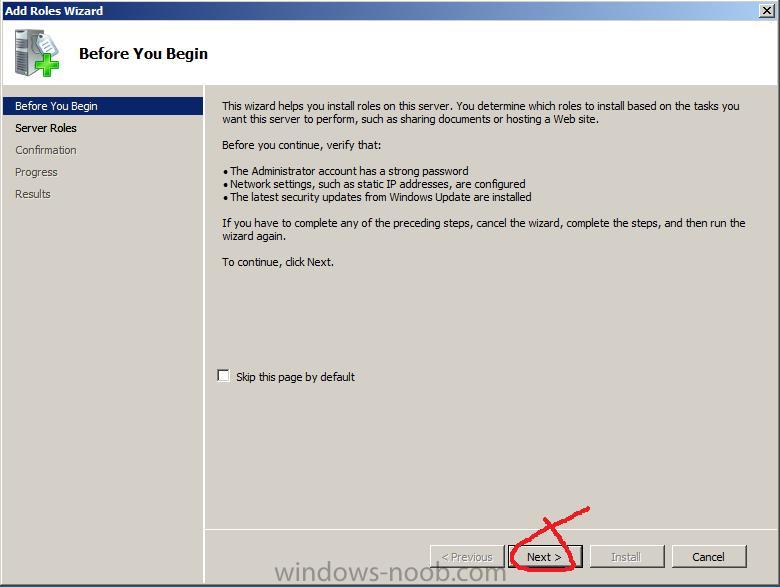

On the Before You Begin page, click Next,

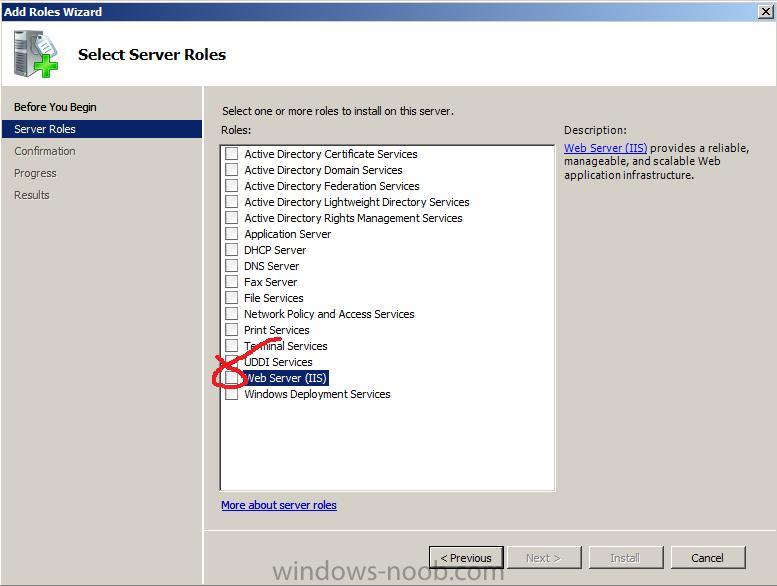

On the Select Server Roles page, check Web Server (IIS),

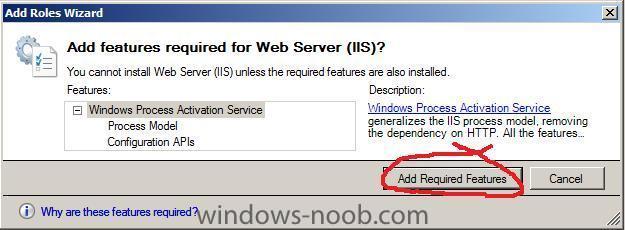

in the Add features required for Web Server (IIS)? page that pops up, click Add required features and click Next
On the Select Server roles page verify Web Server (IIS) is selected and click Next
On the Introduction to IIS page click Next
On the Select Role Services page, check the following roles, then click Next
Web Server
Common HTTP Features
Static Content Installed
Default Document Installed
Directory Browsing Installed
HTTP Errors Installed
HTTP redirection Installed
Application Development
ASP.NET, Installed (add the required features when prompted)
.NET Extensibility Installed
ASP Not Installed
CGI Not Installed
ISAPI Extensions Installed
ISAPI Filters Installed
Server Side Includes Not Installed
Health And Diagnostics
HTTP Logging Not Installed
Logging Tools Not Installed
Request Monitor Not Installed
Tracing Not Installed
Custom Logging Not Installed
ODBC Logging Not Installed
Security
Basic Authentication Not Installed
Windows Authentication Installed
Digest Authentication Not Installed
Client Certificate Mapping Authentication Not Installed
IIS Client Certificate Mapping Authentication Not Installed
URL Authorization Not Installed
Request Filtering Installed
IP and Domain Restrictions Not Installed
Performance
Static Content Compression Not Installed
Dynamic Content Compression Not Installed
Management Tools
IIS Management Console Installed
IIS Management Scripts and Tools Not Installed
Management Service Not Installed
IIS 6 Management Compatibility
IIS 6 Metabase Compatability Installed
IIS 6 WMI Compatability Installed
IIS 6 Scripting Tools Installed
IIS 6 Management Console Installed
FTP Publishing Service
FTP Server Not Installed
FTP Management Console Not Installed

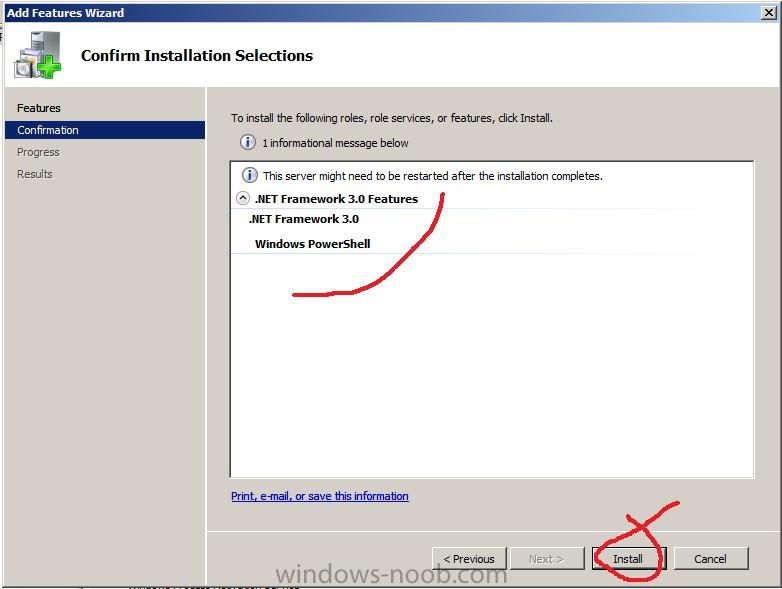

On the Confirm Installation Selections page, click Install
On the Installation Results page, click Close

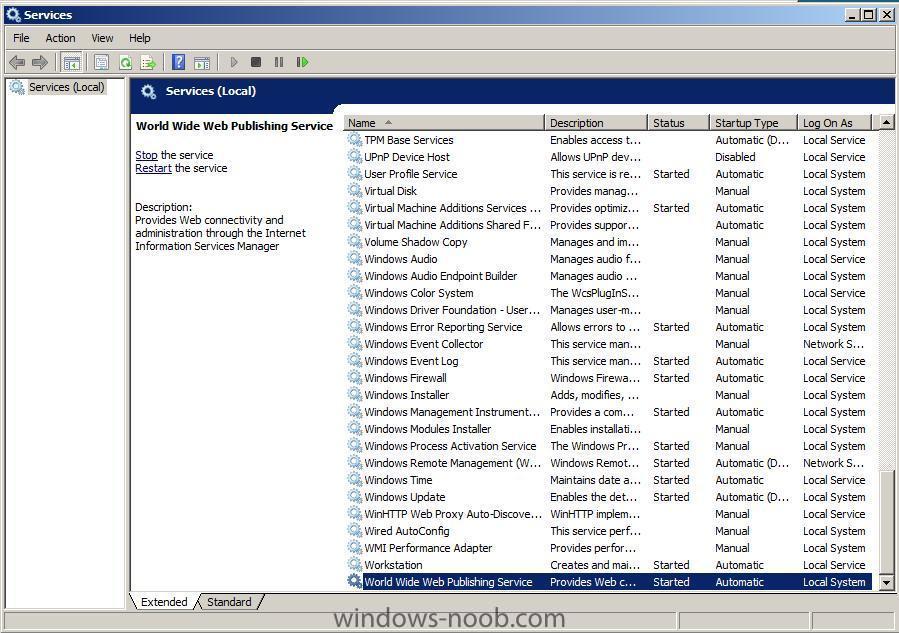

Click Start, Run and type Services.msc, click OK
Verify that the World Wide Web Publishing Service is started and that the startup mode is set to Automatic, if not, configure it to automatic and start it.
